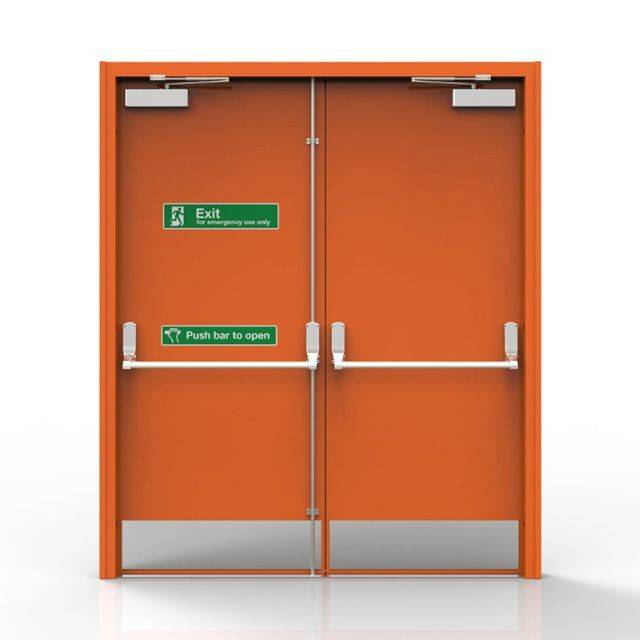

FD60 Fire Door
Steel fire door with 60 minutes fire resistance.
Application
Suitable for emergency escape doors in industrial environments, commercial premises, offices and in schools.
Description
Steel fire door with 60 minutes fire resistance.
Features benefits:
- Doors are supplied with thresholds and seals as required and can be fitted with vision panels or air transfer louvres.
- 50 mm thick door leaf.
- 120 mm Zintec steel frames.
- Adjustable standard frame cappings.
- Anti-crush door frame reinforcement.
- Multiple frame fixing straps.
- Screw-in frame fixings.
- Dog-bolt hinges.
- Stainless steel leaf capping.
- Factory fitted ironmongery.
- Factory fitted seals.
- Manual flush bolts to all inactive leaves.
General information
Material | Steel |
Shape | Rectangular |
Size | Insert width and height of structural opening. |
Uniclass 2015 | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Metal doorsets Enhanced data
Third party accreditation | CERTIFIRE certificate. |
Configuration | Single leaf.Leaf and part leaf.Double leaf. |
Doorset size | 2780 x 3000 mm.Maximum size. Larger structural openings can be accommodated by the use of side panels and over panels. |
Performance | - |
Fire performance | - |
Fire integrity | To BS EN 1634-1, 60 minutes.Standard fire door. |
Frame | - |
Material | Zintec steel.120 mm. |
Door leaf | - |
Thickness | 50 mm. |
Core | Manufacturer's standard. Consult manufacturer for additional information. |
Material | Steel. |
Lippings | Lipped leaf, rebated with security astragal. |
Perimeter seals | Factory fitted seals. |
Glazing | - |
Type | Firelite ceramic glass is a unique type of fire-rated glass that can endure intensive heat from fire as well as the thermal shock of water used in fire fighting. It is clear, without unsightly reinforcing wires. Impact resistance (BS EN 12600): Class 2B. |
Hardware | Available latched or unlatched. A full range of personnel and fire escape hardware options are available, with external access handles and knob sets as required |
Product Reference | FD60 Fire Door |
Opening | Inward opening. Outward opening. |
Fire resistance | CERTIFIRE fire door. The CERTIFIRE third party accreditation scheme verifies the quality of the door product and gives reassurance that the product is both Safe and Secure. Standard fire door. |
Vision panel | Not required. Type B. 150 x 1500 mm. Type C. 150 x 700 mm. Type D. 150 x 500 mm. Type E. 450 x 450 mm. |
Louvre | Not required. Two hour, type B. 150 x 1500 mm. Two hour, type C. 150 x 700 mm. Two hour, type D. 150 x 500 mm. Two hour, type E. 450 x 450 mm. |
Ironmongery | Available latched or unlatched. A full range of personnel and fire escape hardware options are available, with external access handles and knob sets as required. |
Colour | Consult manufacturer for available finishes and colours. |
