FD30 Timber Frame Internal Screen

Verified by manufacturer 3 months ago

New variant

Forza Doors Limited

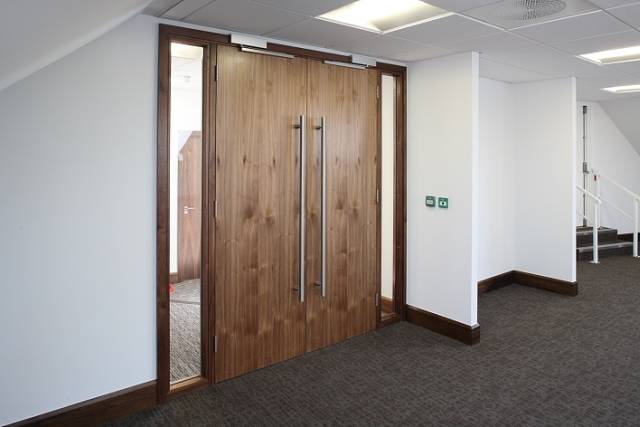

A range of timber or veneered MDF framed glazed fire screens.

Jump to:
+44 (0)1403 711126 Website

Application

For internal use in conjunction with the FD30 door range.

Description

Forza timber and/ or MDF frame fire screens in standard elevations with glazed and door modules. The product is rated BS 476-22 fire resistant for 30 minutes.


Features and benefits:

  • 30 minute insulation is available.
  • Forza timber framed glazed screens comply with the structural guidelines recommended in BS EN 5234-2 and BS EN 6180.
  • International Fire Consultants Ltd: PAR/11294/01A.
  • The Building Test Centre: BTC180575.
  • Minimum density 510 kg/m³.
  • Moisture content in accordance with BS EN 942.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Lacquered

Guidance for specification option:

Acid-catalyst lacquer, 20% gloss. Tinted or non-tinted available.

Painted

Guidance for specification option:

Insert colour requirements. Pigmented precast lacquer.

Stained

Guidance for specification option:

Insert colour requirements. Completed with high solid acid catalyst lacquer.

Material

Timber

Guidance for specification option:

Solid softwood or hardwood. Veneer wrap MDF.

Glass

Uniclass

Ss_25_60_35_30 Fire-resistant glazing systemsPrimary

CAWS

L10/56 Glazed screen system

L10/560 Glazed screen system

Specification data - Fire-resistant glazing systems

System performance

Fire performance to BS EN 476-22, 30 minutes.

Infill

FD30/0 fire glass.

Guidance for specification option:

30 minutes integrity.

FD30/30 fire glass.

Guidance for specification option:

30 minutes integrity/ insulation.

Retaining arrangements

-

Beads

Flush bead.

Linings

MDF.

Hardwood.

Softwood.

Sustainability data

Country of product manufacture

United Kingdom
