FD30 Fire Doors - Flush Sets
Verified by manufacturer 17 days ago
Veneered
Veneered
IFCC
Certificate type
ISO 9001 Quality Management
Certificate type

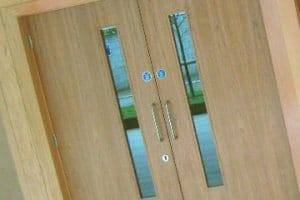

Custom made, flush set FD30 fire doors.
Application
Suitable for internal applications.
Description
Flush set FD30 (30 minute) fire doors to BS 476-22 and BS EN 1634-1.
Features and benefits:
- 30 minutes fire resistance (Integrity).
- 44 mm certified core to BS 476 Pt22:1987 or BS EN 1634-1:2014.
- Intumescent strips in the frame or the door (not both).
- Certified glazing (insulating/ non insulating).
- Available as a pre hung assembly.
- Three faces available: paint grade, veneered and high pressure laminate.
Third party accreditation:
- IFC Fire Door Manufacture scheme certified.
- BS EN ISO 9001 Quality Management System certified.
- BS EN ISO 14001 Environmental Management System certified.
- FSC® (Forest Stewardship Council®) certified.
- Architectural and Specialist Door Manufacturers' Association (ASDMA) member.
General information
Color | Other |
Finish | Veneered Laminated Painted Primed |
Material | Timber Wood |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Maximum width achievable: 1200 mm based on a height of 2440 mm. |
Height | Bespoke Guidance for specification option: Maximum height achievable: 3059 mm based on a width of 915mm |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/420 Wood doorsets L20/55 Doorsets |
Specification data - Wood doorsets
Standard | Internal fire-rated doorset to BS 476-22 and BS EN 1634-1. |
Wood in joinery standard | To BS EN 942. |
Configuration | Double-leaf, single-action.Single-leaf, single-action.Leaf and part-leaf, single-action.Double-leaf, double-action.Single-leaf, double-action.Leaf and part-leaf, double-action. |
Doorset size | Manufacturer guidanceBespoke manufactured to suit specified structural opening. Consult manufacturer and insert requirements - height x width - restriction may apply due to specification. |
Performance | |
Fire resistance | |
Integrity | 30 minutes. |
Acoustic performance | 30–32 dB. |
Frame | |
Material | Timber. |
Species | Engineered streframe, primed.Redwood, primed.Sapele, primed.Grandis, primed.American white oak, lacquered solid timber.American black walnut, lacquered solid timber.American cherry, lacquered solid timber.Sapele, lacquered solid timber.Ash, lacquered solid timber.Maple, lacquered solid timber.Steamed beech, lacquered solid timber. |
Threshold | Not required.Required.Guidance for specification option: Consult manufacturer for details and insert threshold requirements. |
Perimeter seals or inserts | Not required.Guidance for specification option: Intumescent strips in the frame or the door (not both). 422 - drop seal.1009 - batwing seal.PVC encased intumescent strip, plain - 15 x 4 to frame.PVC encased intumescent strip, fin - 15 x 4 to frame.PVC encased intumescent strip , brushed - 15 x 4 to frame.PVC encased intumescent strip, plain - 10 x 4 to meeting style of pairs.PVC encased intumescent strip, fin - 10 x 4 to meeting style of pairs.PVC encased intumescent strip , brushed - 10 x 4 to meeting style of pairs.Manufacturer guidancePerimeter seals are supplied loose for onsite fitting. Seal finishes to be white, brown or black. Insert requirements. |
Finish | Primed white.Sealer coated. |
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
External | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Internal | As External. |
Installation fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Frame accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Door leaf | |
Thickness | 44 mm. |
Core | 44 mm multiple layered particle board core.44 mm solid laminated core.Severe duty rated core. |
Panel details | Flush. |
Facings | Wood veneer. |
Species | American white oak.American black walnut.American cherry.Sapele.Ash.MapleSteamed beech.Black stained timber veneer.Other.Guidance for specification option: More selections available on request - consult manufacturer and insert requirements. |
Cut | Crown cut veneer.Quarter cut veneer. |
Lippings | Concealed 8 mm lippings to match timber.Concealed 14 mm lippings to match timber.Exposed 8 mm lippings to match timber.Exposed 14 mm lippings to match timber.Hardwood timber lipping. |
Perimeter seals | Not required.Guidance for specification option: Intumescent strips in the frame or the door (not both). 422 - drop seal.1009 - batwing seal.PVC encased intumescent strip, plain - 15 x 4 to frame.PVC encased intumescent strip, fin - 15 x 4 to frame.PVC encased intumescent strip , brushed - 15 x 4 to frame.PVC encased intumescent strip, plain - 10 x 4 to meeting style of pairs.PVC encased intumescent strip, fin - 10 x 4 to meeting style of pairs.PVC encased intumescent strip , brushed - 10 x 4 to meeting style of pairs.Manufacturer guidancePerimeter seals are supplied loose for onsite fitting. Seal finishes to be white, brown or black. Insert requirements. |
Finish | UV lacquer coating.Guidance for specification option: Two coats of protective UV lacquer coating applied. Unfinished.Guidance for specification option: Available unfinished (white only). |
Colour | |
External | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Internal | As External. |
Door accessories | Not required.FD30 over panel.Guidance for specification option: Integral or separate available as required, insert requirements. FD30 glazed side screens.Guidance for specification option: Integral or separate available as required, insert requirements. FD30 elevated side screens.Guidance for specification option: Integral or separate available as required, insert requirements. FD30 fanlights.Guidance for specification option: Integral or separate available as required, insert requirements. SSS kick plates.Guidance for specification option: Cover to maximum 30% of door face area, insert requirements. Manufacturer guidanceInsert requirements.
|
Hardware | C13 butt hinge.Guidance for specification option: Ready to hang, preparation to both doors and frames, hinges supplied loose for site assembly. AR87825 lift of hinges.Guidance for specification option: Pre-hung, door and frame pre-hung in the factory and delivered ready to install. |
Architraves | |
Material | MDF, 44 x 18 mm once pencil round.MDF, 69 x 18 mm once pencil round.Timber, 44 x 18 mm once pencil round.Timber, 69 x 18 mm once pencil round. |
Finish | Primed ready for site finish.Guidance for specification option: Primed MDF. Sealed.Guidance for specification option: Sealer coated timber. |
Colour | |
External | To match timber frame. |
Internal | To match timber frame. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Ironmongery | Manufacturer guidanceDoor manufacturer supplies and factory fits all ironmongery to British Standards. Cut out for free issue Ironmongery - locks and flush bolts. Consult manufacturer for details and insert requirements. |
Sustainability data
Material | Timber Wood |
Third party certifications
IFCC
IFC Third Party Certification
ISO 9001 Quality Management
IOS 9001:2015
