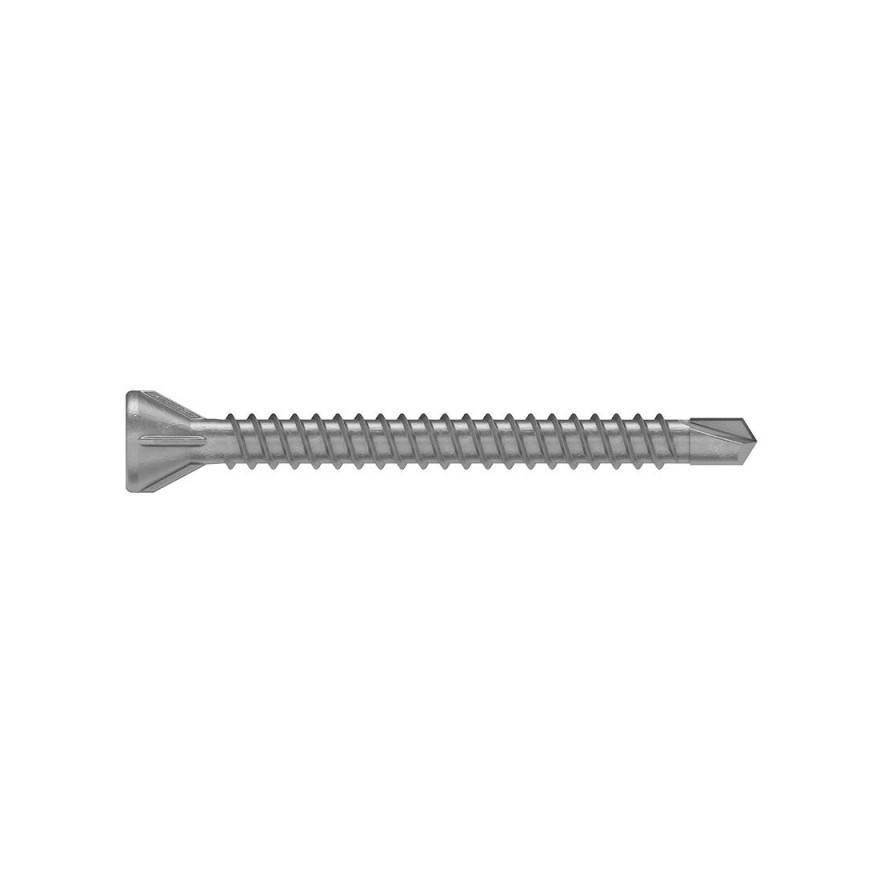

FBCB: Fibre Cement Screw
Verified by manufacturer 7 months ago
DoP
Certificate type
A coated steel screw for fixing fibre cement boards to steel.
Application
- For indoor and outdoor use.
- Cement board to steel.
- Fibre cement board to steel.
- Timber to steel.
Description
FBCB screws can be used in humid conditions both indoors and outdoors thanks to the Impreg®+ coating. They are particularly suited for fixing fibre cement boards to steel. They are also suitable for timber to steel applications. The drill point means that the screws can be used to fix to steel up to 2 mm thick. The ribbed countersunk flat head countersinks flush into the cementboard/timber leaving a neat finish.
Features and benefits:
- Steel with Impreg®+ coating.
- CE marked to EN 14566.
- PH2 drive recess.
- Ribbed countersunk head.
- Drill point.
- Twin thread.
General information
Color | Grey |
Finish | Coated |
Material | Steel |
Shape | Circle |
Length | 25 mm 35 mm |
Width | 3.9 mm |
Uniclass | |
CAWS | K11/485 Wall sheathing |
Specification data - Plasterboard screws
Standard | To BS EN 14566. |
Material | Steel. |
Finish | Impreg®+ coated. |
Head type | Countersunk cross head. |
Length | 25 mm.Guidance for specification option: FBCB3.9X25. 35 mm.Guidance for specification option: FBCB3.9X35. |
Diameter | 3.9 mm. |
Service class | 3. |
Third party certifications
DoP
Declaration of Performance DoP-h17/0003
Literature
FBCB: Fibre Cement Screw Technical Data Sheet
