Application

Thermostat that is used to control water underfloor heating systems.

Description

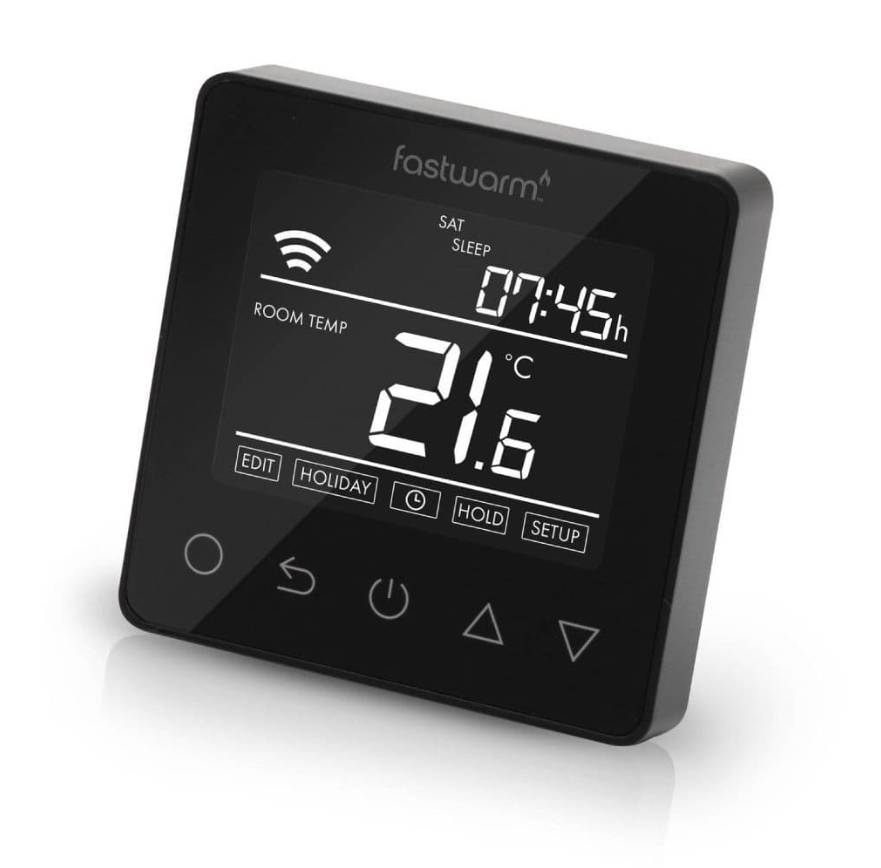

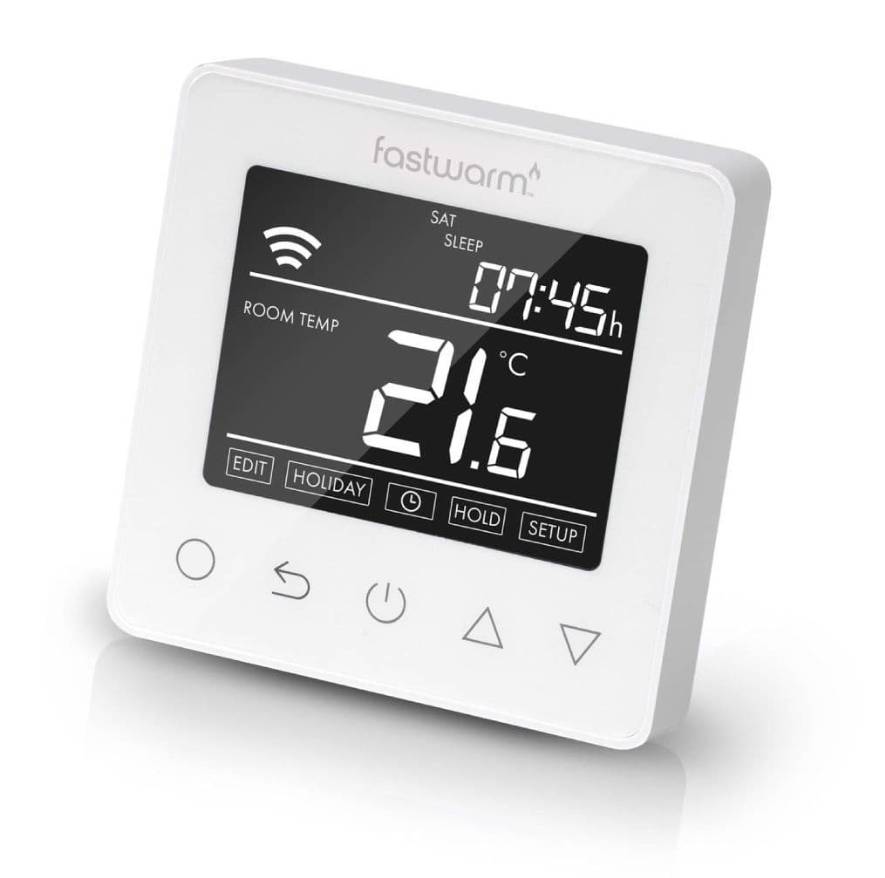

Smart Wifi thermostat available in white or black, that is used to control water underfloor heating systems.


Features and benefits:

  • WIFI Control.
  • Programmable.
  • Professional design.
  • Hold function.
  • Floor temperature limitation.
  • Power consumption monitor (APP).
  • Large screen.
  • Standby power <2 W.
  • IP rating: IP21.
  • Max load: 3 A.
  • Supply voltage: 50/60 Hz; 220–240 V AC.

General information

Color

Black

White

Material

Plastic

Shape

Square

Length

42 mm

Width

87 mm

Height

87 mm

Warranty description

Lifetime

Uniclass

Pr_75_50_76_29 Floor temperature sensorsPrimary

CAWS

T90/485 Thermostats

Specification data - Floor temperature sensors

Application

Monitoring of floor temperature.

Temperature (maximum)

50°C.

Manufacturer guidance

Floor temp limit:

  • Default: 30°C.
  • Ranges: 20°C to 50°C.

Accuracy

+/- 1°C.

Installation

-

Installation generally

-

Manufacturer guidance

Insert requirements.

Location

-

Manufacturer guidance

Insert requirements.

Colour

Black.

White.

Supply

220–240 V.ac.

Load

3 A (maximum).

Dimensions

87 x 87 x 16 mm.

Manufacturer guidance

Face plate dimensions L x W x D.

Weight

0.15 kg.

Ingress protection

IP21.

Sustainability data

Material

Plastic
