Fastwarm® FastGrid Decoupling Membrane For Underfloor Heating

Verified by manufacturer 5 days ago

Fastwarm Underfloor Heating

Fleece backed decoupling membrane for underf

Jump to:
+44 (0)1268 744479 Website

Application

  • Decoupling matting for underfloor heating is specifically designed for use with 2 mm Fastwarm cable.
  • Suitable for use in wet areas such as ensuites and bathrooms.
  • Suitable for floors susceptible to lateral movement and deflection.

Description

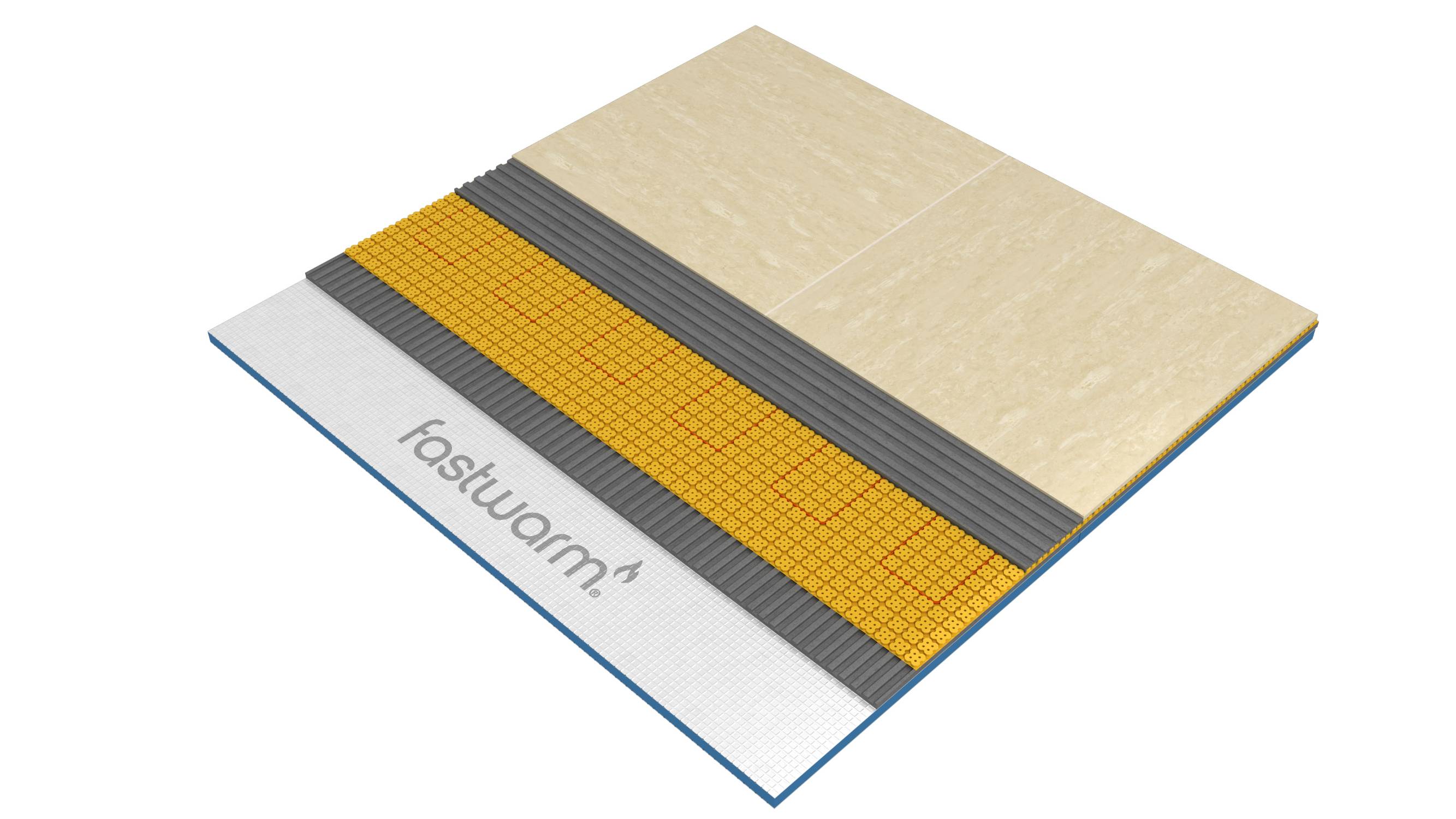

Fastwarm® FastGrid is designed to make installations easier, offering a decoupling mat allowing Fastwarms 2 mm loose cable to be evenly spaced out.


Developed by Fastwarm this 4 mm matting is able to accommodate a 2 mm heating element.


Features and benefits:

  • Decoupling technology - protects tiled floors and houses 2 mm cable.
  • Quick installation times for homeowner or installer.
  • Ultra low profile for minimal height impact and less adhesive required.
  • Modular installation allows for heat to be applied in only the areas that are required.
  • Available in 1 m² sheet and 15 x 1 m roll.
  • European compliant and CE marked.
  • To be used in conjunction with Fastwarm Loose Cable.
  • Fully approved by Ultra Tile Adhesive / Instarmac.
  • Waterproof suitable for use in wet areas.

General information

Color

Yellow

Finish

Film

Studded

Material

Polyethylene

Polypropylene

Fleece

Shape

Rectangle

Other

Length

1000 mm

15000 mm

Width

1000 mm

Height

4 mm

Warranty description

Lifetime

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

M40/110 Tiling to

M40/5 Tiling to

M40/27 Intermediate substrate

M40/470 Intermediate substrate

T90/478 Underfloor electric heating cables

Specification data - Plastics sheets

Material

Polypropylene.

Purpose

Decoupling membrane for underfloor heating.

Third-party certification

European compliant and CE marked.

Performance characteristics

-

Tensile strength (minimum)

65 N/CM.

Form

Studded.

Physical properties

-

Colour

Yellow.

Weight (minimum)

900 g/m².

Manufacturer guidance

(+-50).

Dimensions

-

Thickness (minimum)

3.8–4.0 mm.

Width (minimum)

1 m.

Roll length (minimum)

1 m.

15 m.

Surface finish

Polyethylene (PE) film top.

Manufacturer guidance

0.35 mm.

Backing

Fleece backing.

Installation temperature

5℃ to 40℃.

Guidance for specification option:

*but limited by tile adhesive specification.

Melting point

160℃.

Air Gap Volume

2.4 L/m².

Crack bridging

0.27 mm.

Sustainability data

Material

Polyethylene

Polypropylene

Fleece
