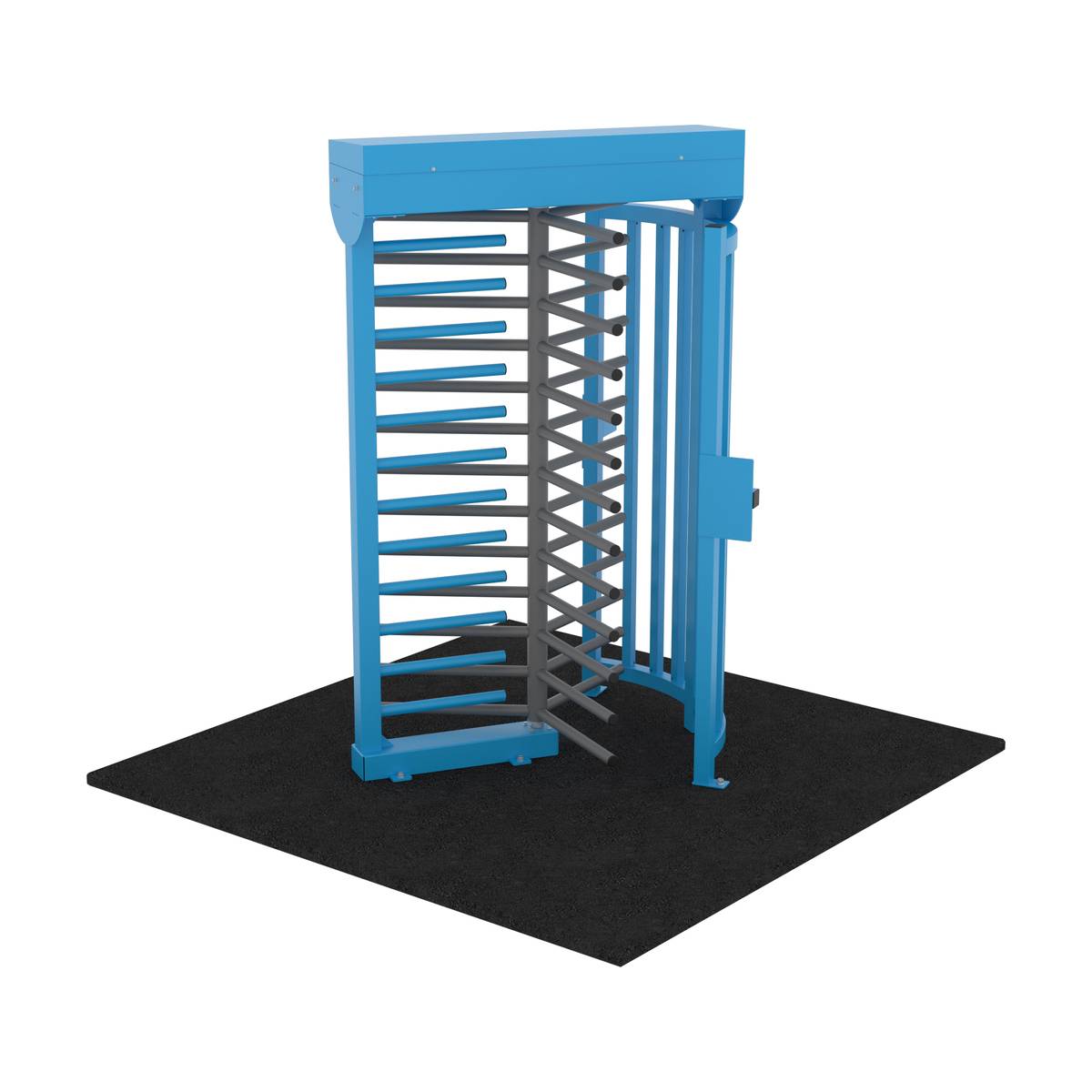

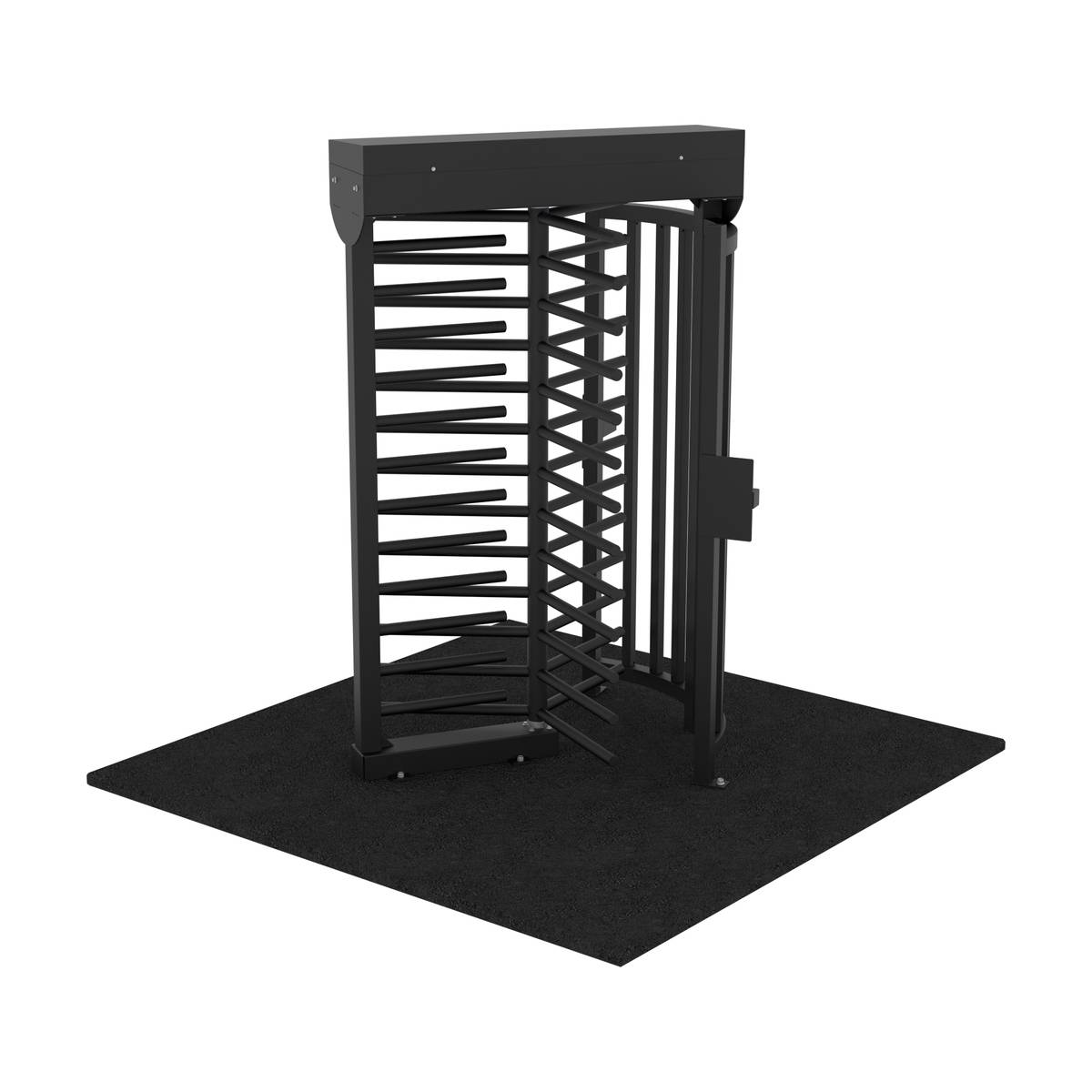

Fast-Tech® FT-TS-120.01 | Turnstile
Verified by manufacturer 2 months ago
Full height, three-rota, fully pre-assembled 120° turnstile unit
Application
For public buildings in commercial environments. Suitable for high security applications or as a temporary installation.
Description
The Fast-Tech® FT-TS-120.01 Turnstile has been designed to address the most challenging of requirements with simplicity.
Supplied as a plug-and-play unit, the turnstile arrives fully assembled and ready to bolt in place; connect it into a new or existing access control network. The mechanism is tested to 500 000 cycles and the unit is class A (hot dip) galvanized and polyester powder-coated to the RAL colour of your choice to ensure longevity.
Designed in-house, the Fast-Tech® FT-TS-120.01 Turnstile is fabricated in Fastline's UK factory to ensure full control is maintained over the quality.
The unit is hot-dip galvanized to BS EN 10346:2015 and polyester powder-coated to BS EN 13438:2013. The finish colour to your choice with an option for contrasting rota/ housing colours to assist with DDA compliance.
All Fast-Tech® products undergo multi-stage inspections to ensure conformity to the above standards and contribute to the product guarantee. Fast-Tech® FT-TS-120.01 Turnstile is manufactured in house to exceed all current legislative requirements. When requested, the plug-and-play module is provided to confirm with guidance as stated in BS 7036-1:1996.
Features and benefits:
- Tested on 500 000 cycles.
- Robust system.
- Strong connection with the turnstile spindle.
- 100% rust-free materials.
- No exposed components.
- IP55 proof housing to control module.
- 24 V d.c. power supply/ 230 V a.c. 3 A supply single phase.
- Bi-directional access control.
- Smooth continuous movement.
- Anti-passback security.
- Impossible to be trapped in the turnstile.
- Manual key-override possible.
- Automatic return to start position.
- Great through visibility.
- Optional hydraulic damper.
- Easy connect of counter and traffic indicator lights.
- (Electro)mechanical Fail-Open or Fail-Close solution.
- Integrates with existing access control system.
- Plug-and-play electrical connectors.
- Unit delivered fully assembled to suit required configuration.
- Modular: units can be swapped out if and when required.
- Full drawings provided upon approval.
General information
Color | Blue Green Black Other Guidance for specification option: Can be polyester powder coated to any RAL colour. |
Finish | Powder-coated Galvanized |
Material | Steel |
Shape | Rectangle Other |
Length | 1500 mm |
Width | 1400 mm |
Height | 2400 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/160 Turnstile |
Specification data - Turnstile systems
Configuration | As schedule.As drawing.Guidance for specification option: Insert drawing reference number. |
Turnstile type | Full height access control gates. |
Foundations | Guidance for specification option: Insert requirements. |
System accessories | Not required.Hydraulic damper. |
Dimensions | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Standards | To BS 7036-1:1996. |
Finish | Hot dip galvanized to BS EN 10346:2015 and polyester powder-coated to BS EN 13438:2013. |
Certification | ISO 9001 certified. |
Finish/ Colour | Blue. Green. Black. RAL colour. Guidance for specification option: Insert RAL colour code or colour requirements. Manufacturer guidanceUnit colour. If contrasting rota/housing colour is required, specify separately under Housing colour. |
Housing colour | Not required. As unit. Blue. Green. Black. Manufacturer guidanceOption for contrasting rota/ housing colours. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 95 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Literature
Fasttech_FT-TS-120.01 Turnstile
