Application

For public or private buildings in commercial or residential environments. Suitable for high security applications or as a temporary installation.

Description

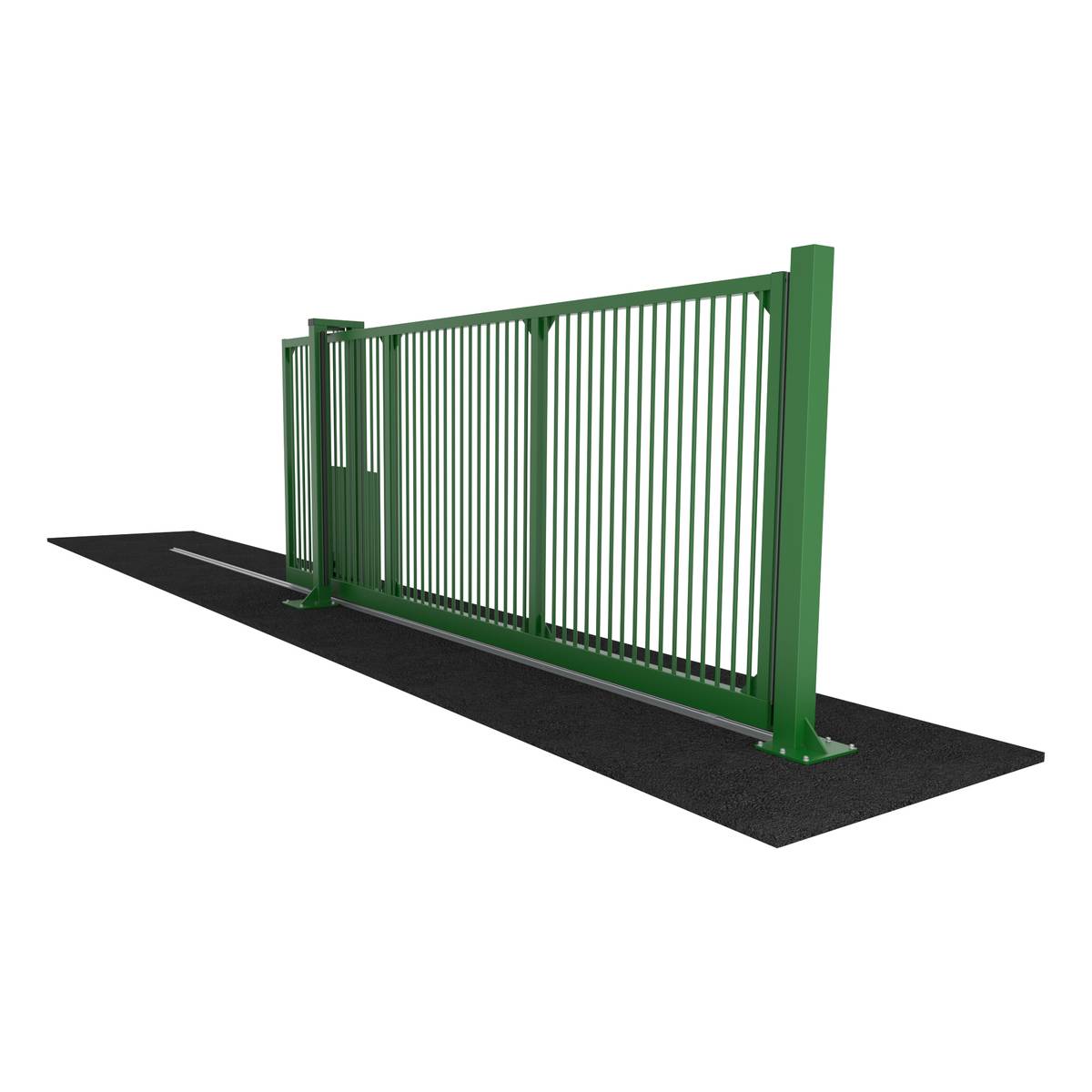

The Fast-Tech® FT-SGT-01 Sliding Gate Set has been designed to address the most challenging of requirements with simplicity.


Supplied as a plug-and-play unit, the gate set arrives fully assembled and ready to bolt in place; connect it into a new or existing access control network. The finish is class A (hot dip) galvanized and polyester powder coated or shot blast and a marine specification multi-layer epoxy treatment to the RAL colour of your choice to ensure longevity.


Designed in-house, the Fast-Tech® FT-SGT-01 Sliding Gate Set is fabricated in Fastline's UK factory to ensure full quality control.


This ground tracked sliding cantilevered gate set is a cost effective solution for achieving wide spanning clear openings.


The unit is hot-dip galvanized to BS EN 10346:2015 and polyester powder-coated to BS EN 13438:2013. For leaf lengths exceeding those suitable for hot dip galvanizing, a marine suitable shot blast and multi stage epoxy coating system (to ensure longevity) is utilized. The finish colour to your choice with an option for contrasting leaf/ post colours to assist with DDA compliance.


All Fast-Tech® products undergo multi-stage inspections to ensure conformity to the above standards and contribute to the product guarantee. The Fast-Tech® FT-SGT-01 gate set is manufactured in house to exceed all current legislative requirements. When requested, the plug-and-play module is provided to confirm with guidance as stated in BS EN 12453:2017.


Features and benefits:

  • 100% duty cycle.
  • Robust system.
  • 100% rust free materials.
  • No exposed components.
  • IP55 proof housing to control module.
  • 230 V a.c. 6 A single phase supply.
  • Fully compliant with BS EN 12453:2017.
  • Smooth continuous movement.
  • Fully assembled with required safety system integration.
  • Installation guidance and check-list supplied.
  • Unit delivered fully assembled to suit required configuration.
  • Plug-and-play electrical connectors.
  • Integrated easily into current access control solution.
  • Minimal installation works required.
  • Full, expert advice available.
  • Complete setting out drawings provided ahead of delivery.
  • 4 to 10 m clear opening available from stock.
  • Bespoke designs available to suit any requirement.
  • Wide variety of infill options available.
  • Manual or automatic available.
  • Huge variety of colours available.
  • Option for contrasting leaf/ post colour.

General information

Color

Blue

Green

Black

Other

Guidance for specification option:

Can be powder coated to any RAL colour.

Finish

Powder-coated

Shot blasted

Galvanized

Material

Steel

Shape

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_32_35_80 Sliding gate systemsPrimary

CAWS

Q50/130 Gate

Q50/20 Gate

Specification data - Sliding gate systems

Standard

To BS EN 12453:2017, BS EN 10346:2015 and BS EN 13438:2013.

Guidance for specification option:

  • When requested, the plug-and-play module is provided to confirm with guidance as stated in BS EN 12453:2017.
  • Hot dip galvanized to BS EN 10346:2015 and polyester powder coated to BS EN 13438:2013.

Method of operation

Manual.

Automatic.

Gate assembly

Stainless steel gates.

Post foundations

Guidance for specification option:

Insert requirements.

Dimensions

As schedule.

As drawing.

Guidance for specification option:

Insert drawing reference number.

Finishing Options

Polyester powder-coated, RAL colour (matching leaf and post).

Guidance for specification option:

Insert RAL colour code.

Polyester powder-coated, RAL colours (contrasting leaf and post).

Guidance for specification option:

Option for contrasting leaf/ post colours to assist with DDA compliance. Insert requirements and colour codes.

Shot blasted and epoxy coated.

Guidance for specification option:

For leaf lengths exceeding those suitable for hot-dip galvanizing, a marine-suitable shot blast and multi-stage epoxy coating system (to ensure longevity) is utilized. Insert requirements.

Infills

Guidance for specification option:

Wide variety of infill options available; consult manufacturer for details. Insert requirements if applicable or omit.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

95

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %
