Fast Fit Covers (Slimline & Ramp)
Verified by manufacturer 7 months ago
TCS405
TCS405
Aluminium fast fit covers.
Application
- For use where the flooring on either side of the gap is at the same level.
- For use where most hard floor coverings will meet a smooth or carpet type floor covering.
Description

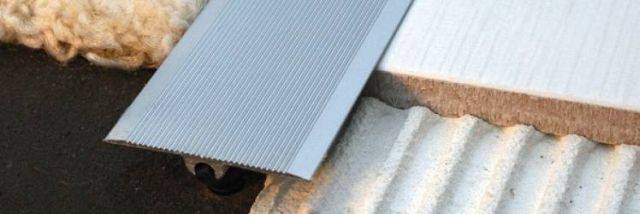

Fast fit slimline:
An aluminium flat cover available in metallic finishes that incorporates an innovative hidden mechanical fixing mechanism. The easy to fit system is particularly suited for use where the flooring on either side of the gap is at the same level.
- Covers a gap up to 30mm.
- TCS for drill fitting option.
- TCG Multiflex for carpet installation.
- TCC Multiflex for all other floor installations.

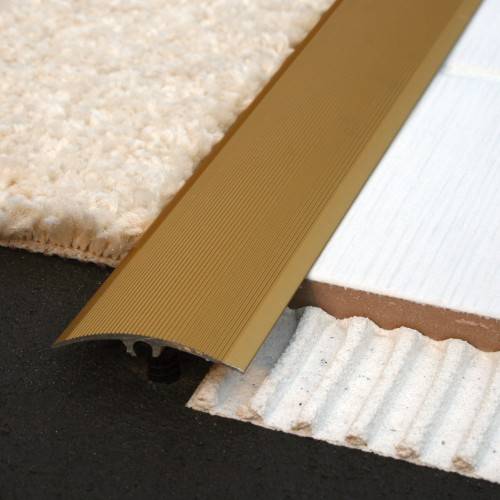

Fast fit ramp:
An aluminium rounded cover available in metallic and wood finishes that incorporates an innovative hidden mechanical fixing mechanism. Due to the pivot system incorporated into the fixing system and the fact the cover is rounded the TCR profile will accommodate height differentials of up to 15 mm. This makes the profile ideal for use where most hard floor coverings will meet a smooth or carpet type floor covering.
General information
Color | Silver Gold Copper Grey Brown |
Finish | Matt Manufacturer guidanceAvailable in metallic and wood finishes. |
Material | Aluminium |
Shape | Other |
Length | 920 mm 1850 mm Guidance for specification option: TCS405, TCR405 |
Width | 40 mm Guidance for specification option: TCS409, TCS405, TCR409,TCR405,TTG409, TTC409 9 mm Guidance for specification option: TCG109, TCC109, TCG109, TCC109, |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
Product range |
Specification data - Two-part floor transition strips
Top insert | |
Profile | Slimline. |
Material | Aluminium. |
Finish | Matt. |
Colour | Ash grey 39.Oak 40.Matt silver 81.Matt brass 83.Pewter 85.Brass effect 87.Bright silver 91.Dark beech 132. |
Size | 1850 x 40 mm.Guidance for specification option: (L x W). |
Application | For drill fitting option. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | Partially (remove fixing components, recycle Aluminium, Dispose of Fixing components |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Literature
TCC - TCG Datasheet
TCR Datasheet
TCS Datasheet
TCR Colour Chart
