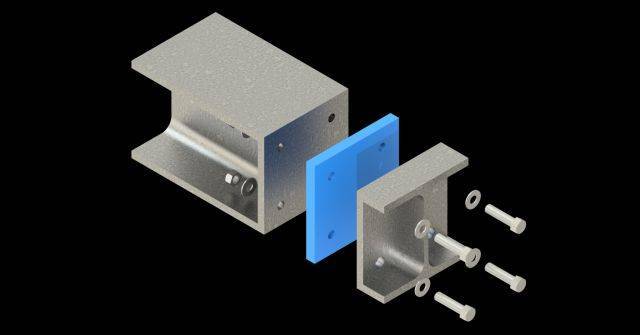

Farrat TBK STRUKTRA™ Structural Thermal Breaks - Load Bearing Insulation

Verified by manufacturer 3 months ago

Farrat Isolevel Ltd Product certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

High performance structural thermal break plate.

Jump to:
+44 (0)161 924 1600 Website

Application

Suitable for:

  • Facade system connections to primary frames.
  • Brise soleil and signage.
  • Roof plant enclosures – columns.
  • Roof parapets.
  • Cladding systems.
  • Connection of external to internal primary building elements.
  • Balconies.
  • Staircases.
  • Isolation of sub-structure and basement elements.
  • Man-safe systems.
  • Connections to existing structures.

Description

High performance structural thermal break plate.


Features and benefits:

  • High performance thermal insulators, used between horizontal and vertical connections of internal and external elements to prevent thermal or cold bridging.
  • Farrat TBK is constructed from materials which have very high compressive strength characteristics combined with a very low thermal conductivity.
  • The insulators can be used in a wide variety of applications where there is a structural requirement for thermal insulation, such as steel to steel, steel to concrete/ masonry, steel to timber and concrete to concrete.
  • An effective solution to meeting Building Regulations by reducing heat loss and internal condensation.
  • Not a proprietary mechanical thermal break, so offers flexibility in detailing the connection.
  • Supported by independent material testing to European building insulation standards.
  • Certification and product approvals by recognized organizations (SCI, BRE and NHBC).
  • Manufactured under Farrat's ISO9001 and ISO14001 systems.
  • Very high strength.
  • Very low thermal conductivity coefficient.
  • Available in a variety of thicknesses.
  • Manufactured to suit the connection detail (bespoke).

General information

Color

Yellow

Finish

Smooth

Material

Glass reinforced polyester

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Lifetime

Uniclass

Pr_35_90_15_89 Thermal break connection platesPrimary

CAWS

E40/440 Load transfer systems

SKU Code

TBK

Product range

Farrat STRUKTRA™ Structural Thermal Breaks

Specification data - Thermal break connection plates

Classification data

Certification

SCI, BRE, BBA Passive House and NHBC.

Material

Glass reinforced polyester.

Dimensions

-

Thickness (maximum)

5 mm.
10 mm.
15 mm.
20 mm.
25 mm.

Compressive stress (maximum)

312 MPa.

Manufacturer guidance

Characteristic: 312 MPa.

Design: 250 MPa.

Holes

Guidance for specification option:

Insert requirement or drawing reference; contact manufacturer for information.

Elastic modulus

5178 MPa.

Thermal Conductivity:

0.187 W/m­·K.

Density

1465 kg/m³.

Water absorption

0.14%.

Manufacturer guidance

Long term creep: 20%.

Dimensions

-

Manufacturer guidance

Insert requirement, available up to 2400 x 1200 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

United Kingdom

Material

Glass reinforced polyester

A1–A3 ('Production stage')

Normalized unit

0.43 kg CO₂ eq/kg

Declared unit

0.43 kg CO₂ eq/kg

Self-declared

Recyclability

fully reusable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Product certifications

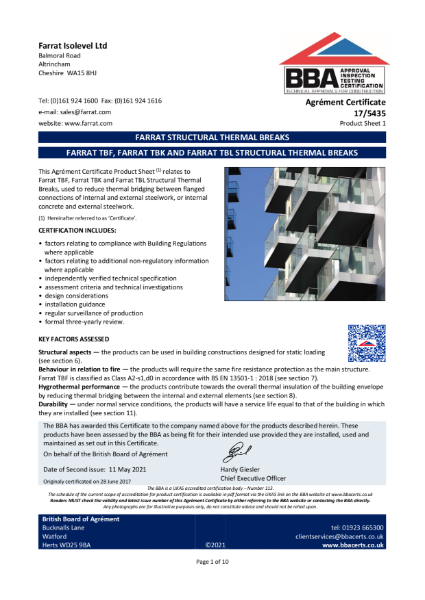

BBA Agrément Certificate

BBA Agrément Certificate

BBA 17/5435

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate - Farrat TBF, Farrat TBK, Farrat TBL

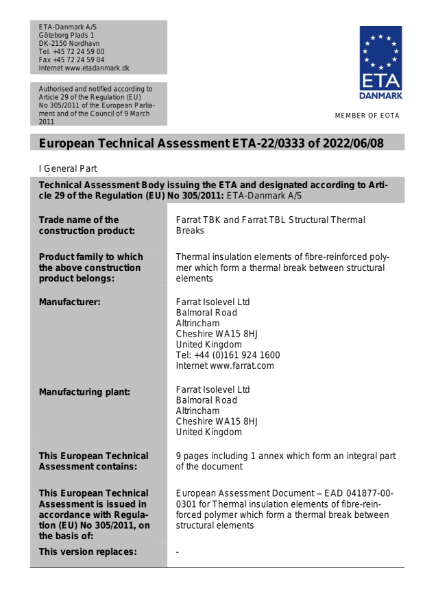

European Technical Approval (ETA)

European Technical Approval (ETA)

European Technical Assessment ETA-22/0333 of 2022/06/08
