FarBo® Leafguards

Verified by manufacturer 1 month ago

Universal leafguard: FO-UG-210

Fixfast Ltd Variant:

Leafguards for use with rainwater outlets.

Jump to:
+44 (0)1732 882387 Website

Application

  • For use with FarBo® rainwater outlets, to prevent the blocking of the outlet by debris.
  • Universal leafguard except FO-FLO-40, Cascade leafguard except FO-FLO-40, Monsoon leafguard except FO-FLO-40, Click leafguard except FO-FLO-40 and FO-FLO-160, Cylindrical leafguard and Ballast leafguard are for use with FloDrain DuoDrain.
  • Balcony leafguard and Wireball leafguard are for use for all drains within the sizes below: 50-160.
  • ParaDrain leafguard and Click leafguard are for use with all ParaDrain sizes.

Description

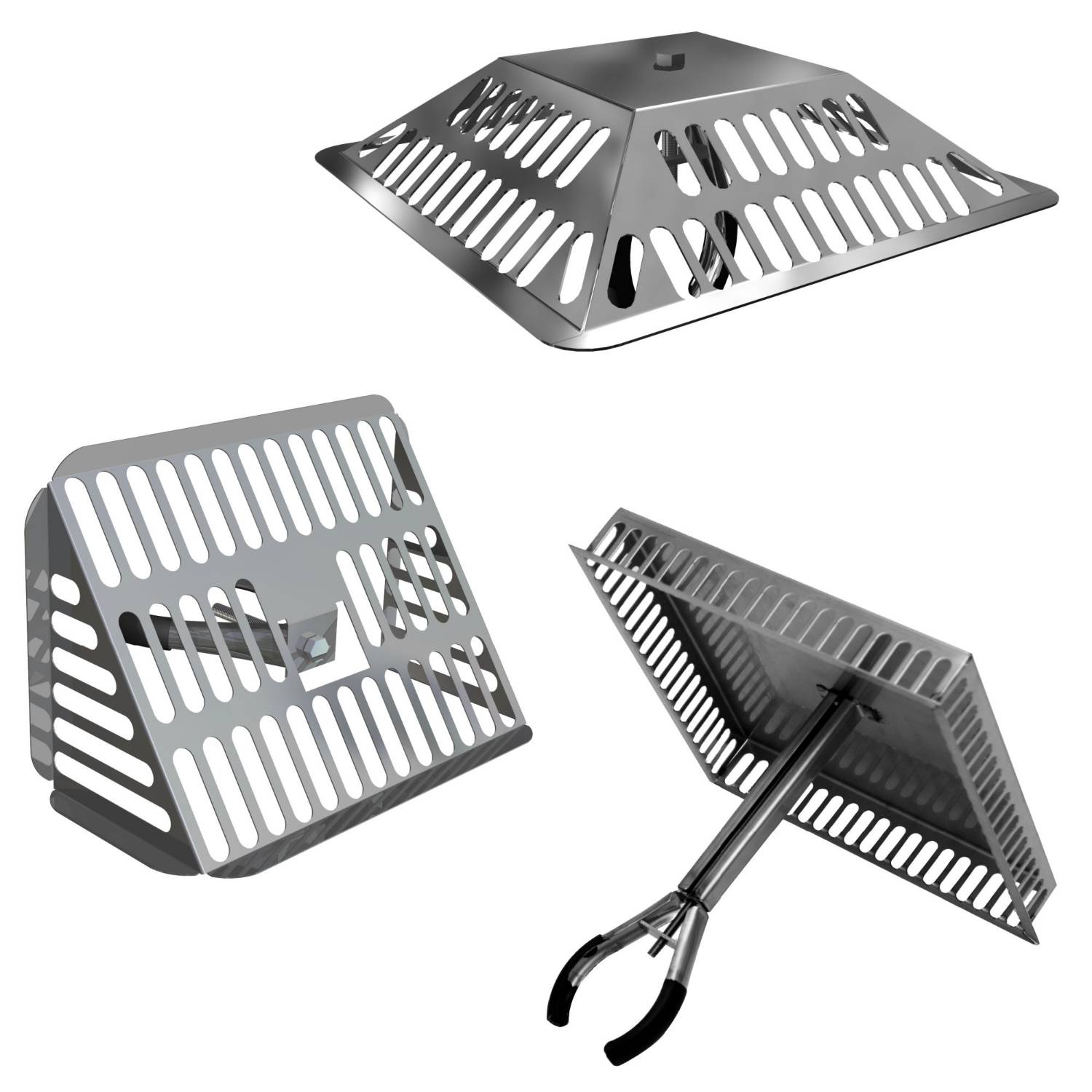

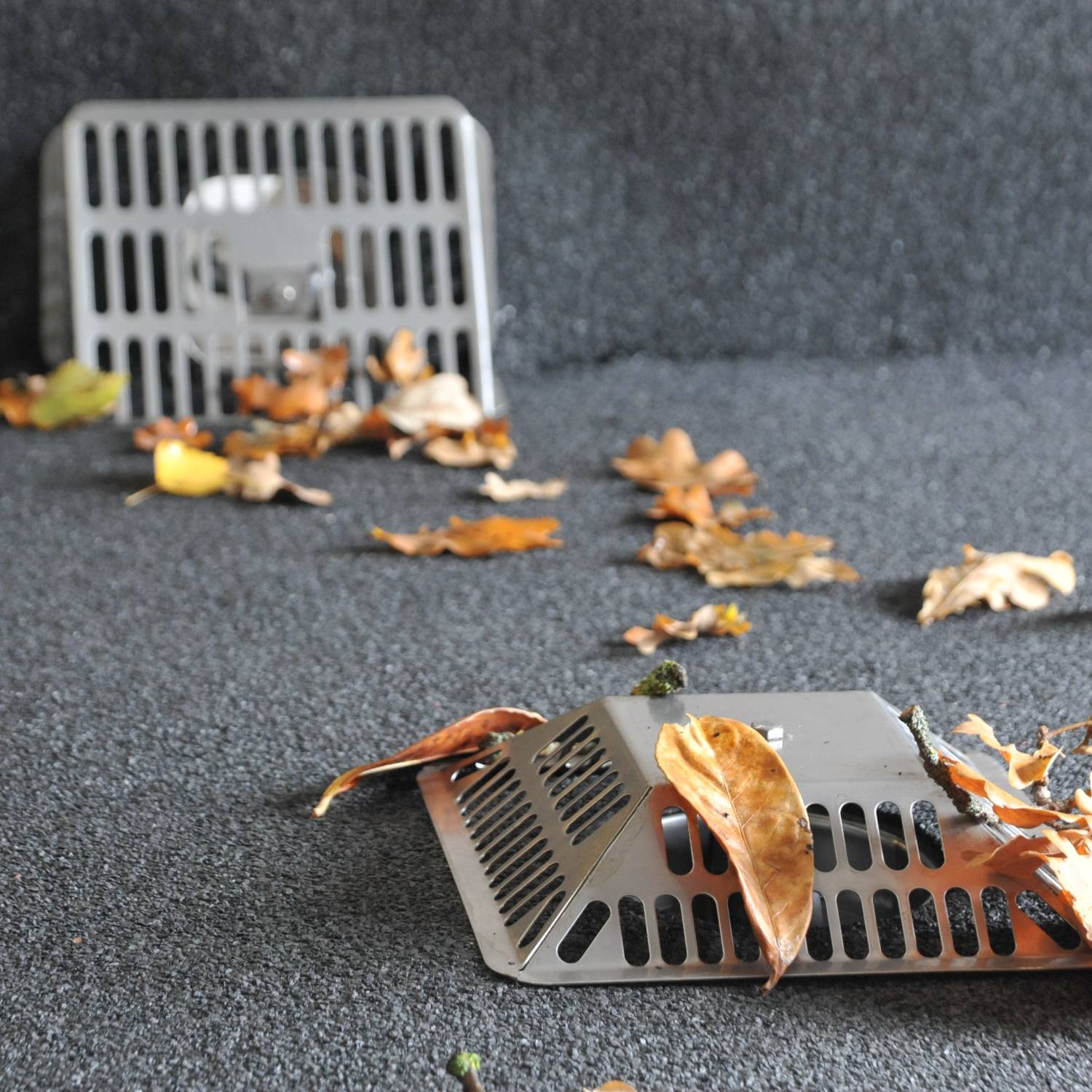

Leafguards for use with flat roof drainage outlets.


Features and benefits:

  • Many types available - to suit most applications.
  • Durable and hard wearing.
  • Manufactured in accordance with ISO 9001:2008, ISO 14001:2004 and ISO 18001:2007 Quality and Management Systems.
  • Universal leafguard is solid and effective and securely clamps to the inside of the outlet stem. It is also tamper proof, as it can only be removed with the correct tool.
  • Cascade leafguard is designed for use with standard size FarBo roof outlets, the new design increases the flow rate by over 50% compared to standard leaf guards. The leaf guard is also tamper resistant, as it can only be removed from the outlet by using a spanner.
  • Monsoon leafguard for new development designed to maximise flow rates through standard size drainage systems. Tamper proof, as it can only be removed with the correct tool.
  • Click leafguard provides solution for applications where maintenance is required on a regular basis. Simple ratchet system allows quick and tool free removal of guard.
  • Cylindrical leafguard ideal for use in restricted areas and for ballasted roofs. Ten standard sizes are available, please specify when ordering.
  • Balcony leafguard very low profile, making it suitable for balconies and other areas which are exposed to light foot traffic.
  • Wireball leafguard prevents small debris from entering the roof outlets.
  • ParaDrain leafguard prevents blocking of outlet by debris.
  • Para Click leafguard provides solution for applications where maintenance is required on a regular basis. Simple ratchet system allows quick and tool free removal of guard.
  • Ballast leafguard ideal for use on ballasted roofs. Six standard sizes are available.

General information

Color

Silver

Black

Material

Stainless steel

Plastic

Shape

Circle

Square

Rectangle

Other

Uniclass

Pr_65_50_35_26 Eaves gutter leaf guardsPrimary

CAWS

R10/315 Cast iron gutters

R10/11 Aluminium gutters

R10/355 Zinc gutters

R10/340 GRP gutters

R10/330 Copper gutters

R10/325 Composite gutters

R10/311 Aluminium gutters

Product range

Roof Drainage Systems

Specification data - Eaves gutter leaf guards

Form

Stainless steel leaf guard.

Size

210 x 210 mm.

Manufacturer guidance

Guard size.

Pipe sizes

50—160 mm.

Manufacturer guidance

To suit pipe sizes:

Height

Not applicable.

Manufacturer guidance

Guard height from deck level.

Sustainability data

Material

Stainless steel

Plastic
