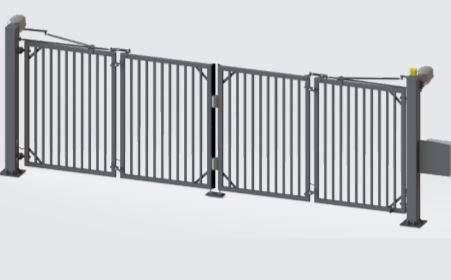

Faldivia® Speed Folding Gate

Application

  • Factories and workshops.
  • Administrative centres.
  • Public buildings.
  • Play and sport grounds.
  • Schools.
  • Parks.
  • Airports.
  • Military sites

Description

Faldivia® trackless speed gate is designed as an effective solution for quick closing or opening. It is a very solid, fast, and efficient solution for demanding customers. Programmable speed is about 1 meter per second.


Features and Benefits:

  • Fast and safe - opens and closes with a programmable speed up to 1 meter per second. The gates open inwards as standard. Once closed, the gate is magnetically locked, meaning that it is highly suitable for entrances with significant security requirements. The speed folding gate is fitted with cutting-edge safety technology: it stops automatically if an obstacle is in the way. The large hinges, which can be lubricated, ensure durable and safe operation.
  • Smart construction - The powerful gate motor is installed at the top of the post. The smart controls offer numerous programming options, as well as additional access control options.
  • Long lifetime  - The gates are made out of steel, hot-dip galvanized (in accordance with EN ISO 1461) or hot-dip galvanized and powder coated.
  • The gate is CE and TÜV certified.

General information

Color

Green

RAL 6005 (Moss green).

Grey

RAL 7016 (Anthracite grey).

White

RAL 9010 (Pure white).

Black

RAL 9005 (Jet black).

Finish

Galvanized

Polyester powder coated

Material

Carbon steel

Size

To suit project requirements.

WarrantyDescription

Ten years

Standard 10 years guarantee.

Uniclass 2015

Ss_25_32_35_30 Folding gate systemsPrimary

CAWS

Q40/570 Gates

Specification data - Folding gate systems Enhanced data

Method of operation

Folding gate automation mechanisms.

Gate assembly

Carbon steel gates.

Site applied finishes

Polyester coated.

Product Reference

Faldivia speed folding gate - 1W single gate

Faldivia speed folding gate - 2W double gate

Span

2 - 6 m.

Faldivia speed folding gate - 1W single gate.

4 - 12 m.

Faldivia speed folding gate - 2W double gate.

Height

2000 mm.

2400 mm.

4000 mm.

Other.

Other sizes available on request.

Dimensions

160 x 160 mm.

Cross section.

200 x 200 mm.

Cross section.

Gate leaves

80 x 60 mm.

100 x 100 mm.

Colour

Green.

RAL 6005 (Moss green).

Grey.

RAL 7016 (Anthracite grey).

White.

RAL 9010 (Pure white).

Black.

RAL 9005 (Jet black).

Other.

All other RAL colours on request.

Panels

Rectangular tubes.

The welded gate frame consists of horizontal and vertical rectangular/square tubes. The infill consists of welded vertical square tubes (40 x 40 x 1.5 mm) with a maximum distance between the bars of 110 mm.

Nylofor panels 2D.

Optional.

Nylofor panels 2DS.

Optional.

Securifor panels.

Optional.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
