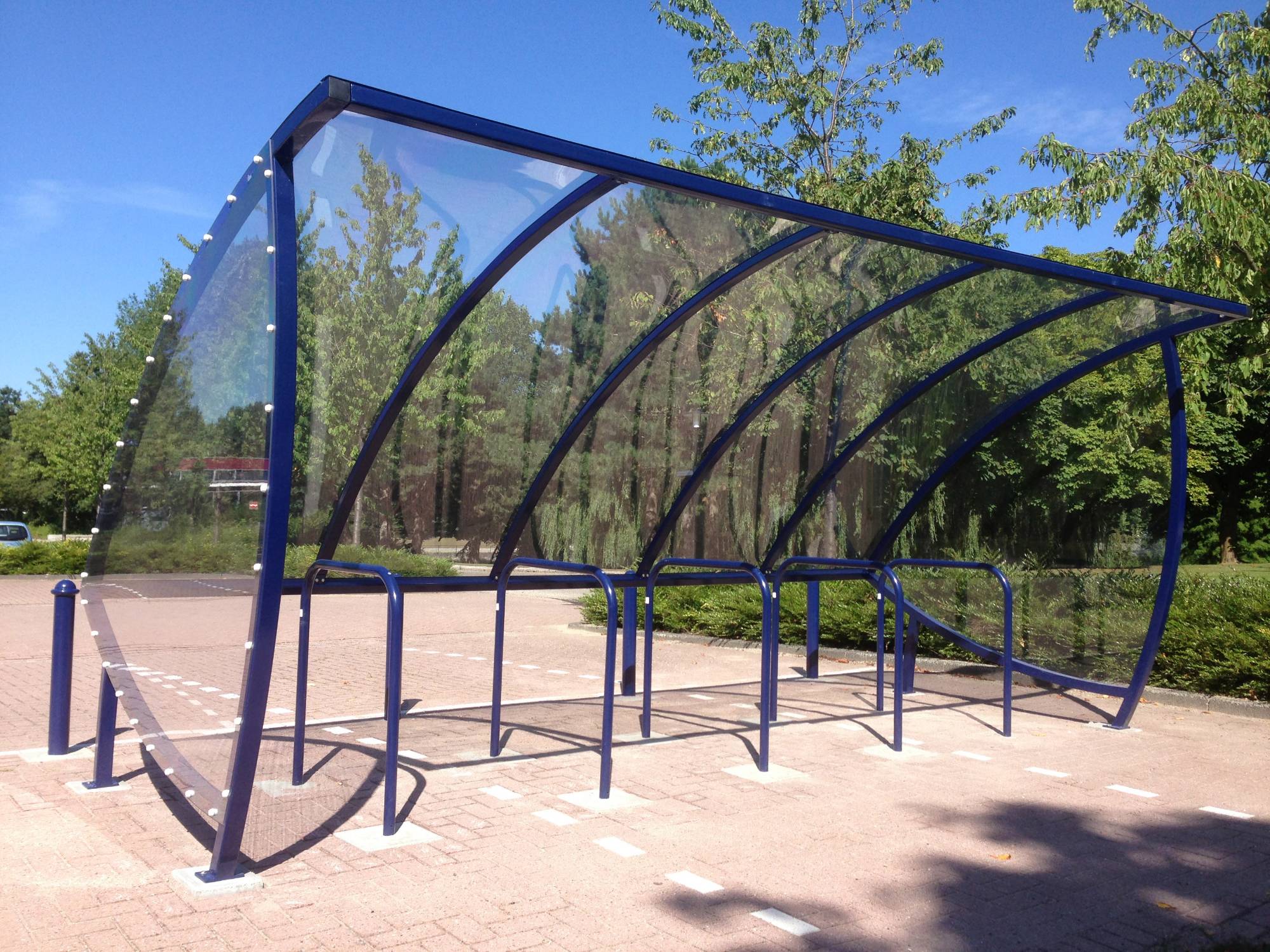

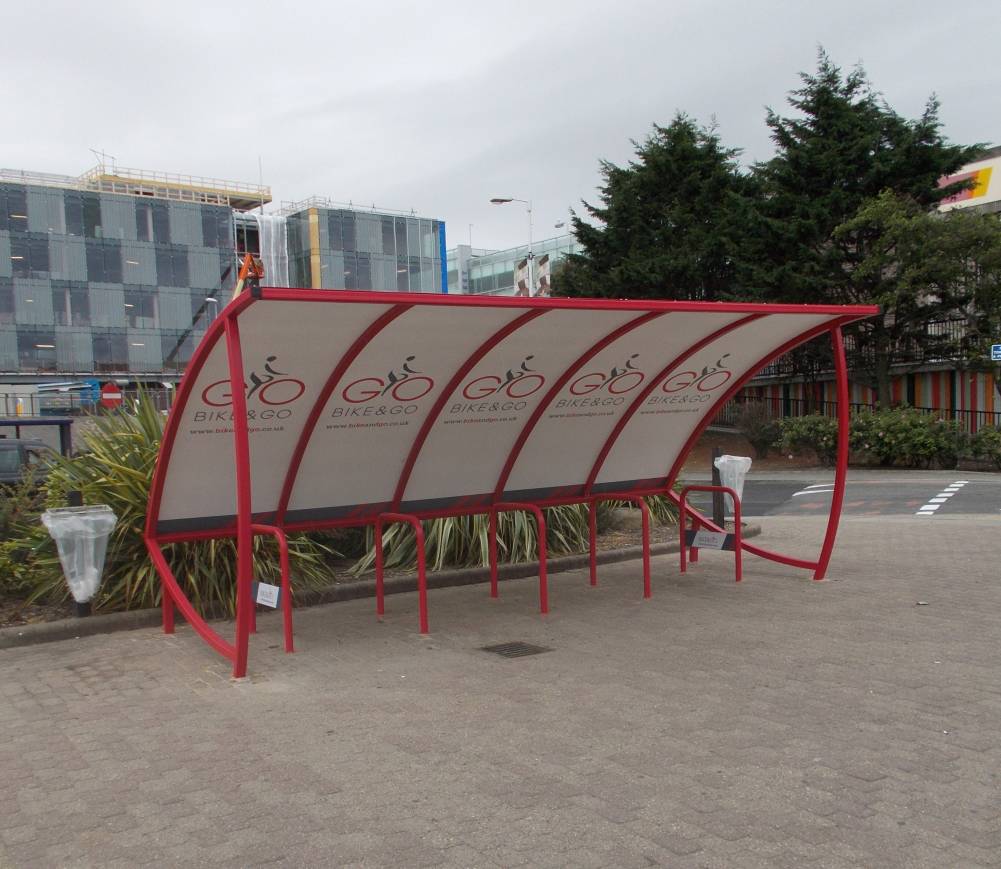

FalcoSail Bike Shelter - Open cycle shelter with sail design

Verified by manufacturer 15 days ago

77.309.040UK - Starter section, length 3000 mm

Falco UK Ltd Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • BS EN 1090-1

    BS EN 1090-1

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Acclaim Accreditation

    Certificate type

Attractive bike shelter design with thousands of installations UK-wide. Ideal for a wide range of applications including railway stations, schools and universities, hospitals, shopping centres etc.

Jump to:
01538 380080 Website

Application

Suitable for several uses including a bike shelter, waiting shelter or smoking shelter.

Description

The FalcoSail is a design led product and from any angle the likeness of a sail ship is unmistakable, making the bike shelter a very attractive addition to any external environment for use as a waiting, smoking or bike shelter.


With 3 m, 4 m and 5 m options, with scope to extend this modular bike shelter design. The bike shelter can hold upwards of 8 cycles. Like all Falco shelters, the FalcoSail is modular in design enabling a bike shelter to be built up to house any number of cycles in various combinations.


The bike shelter is available in two distinct variants, single sided or as a combi model. The combi bike shelter creates a totally enclosed shelter with maximum resistance to rain due to the addition of a walkway cover. The single sided bike shelter allows maximum open space with complete resistance to rain due to the overhanging entrance which provides additional shelter - especially when overcrowded.


Clad in robust polycarbonate the steelwork is hot dip galvanized to BS EN 1461 and can be powder coated in any of the 192 RAL colours.


The bike shelter can be made complete using Falco’s range of bike parking systems, from traditional Sheffield Stands to Toaster cycle racks and A-11 racks.


Bike Shelter Features and benefits:

  • Available in three width options.
  • Robust polycarbonate cladding.
  • Hot dip galvanised steelwork to BS EN 1461.
  • Option to powdercoat in any of the 192 RAL colours.
  • Suitable for us in any external environment.
  • Holds upward of 8 cycles.
  • Modular in design enabling a bike shelter to be built up to house any number of bikes in various combinations.


For more information about the FalcoSail bike shelter please contact our helpful sales team on 01538 380080.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Polycarbonate

Shape

Other

Length

2605 mm

Width

3000 mm

4000 mm

5000 mm

2000 mm

Height

2300 mm

Guidance for specification option:

Head height: 2240 mm.

Warranty description

One year

Uniclass

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

Q50/210 Cycle stands

B91/340 Cycle shelter

B91/330 Canopy

B91/385 Shelter

Specification data - Semi-closed shelters

Dimensions

-

Plan size

3000 x 2605 mm.

Height

2300 mm.

Guidance for specification option:

Head height: 2240 mm.

Frame

-

Material

Structural steel.

Finish

Hot dip galvanized.

Manufacturer guidance

All steelwork is hot dip galvanized to BS EN ISO 1461.

Colour

Silver.

Panels

Polycarbonate panels.

Cladding

-

Material

Glazing plastics.

Colour

Clear.

Roof covering

Glazing plastics.

Integral services

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Rainwater drainage

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Accessories

77.319.040UK - add-on section, length 3000 mm.

77.369.050 - walkway cover with roof of clear polycarbonate.

77.449.052 - end wall in 5 mm clear polycarbonate.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Material

Steel

Polycarbonate

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

356 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Expected Life

25 year

Third party certifications

CHAS

CHAS

SSIP CHAS-ELITE

Constructionline Gold

Constructionline Gold

Constructionline Gold

CQMS

CQMS

CQMS

BS EN 1090-1

BS EN 1090-1

EN 1090 CE Mark

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management System

 Acclaim Accreditation

Acclaim Accreditation

SSIP Acclaim

Literature

FalcoSail Shelter

FalcoSail Shelter

Case studies

Kilmarnock Football Club Take Delivery of Classic FalcoSail Cycle Shelters

Kilmarnock Football Club Take Delivery of Classic FalcoSail Cycle Shelters
