Fabreeka-TIM® RF Series for Light Structural Loads in Compression

Verified by manufacturer 2 months ago

2150

ACE Fabreeka UK Variant:

Structural thermal break.

Jump to:
+44 (0)1942 727440 Website

Application

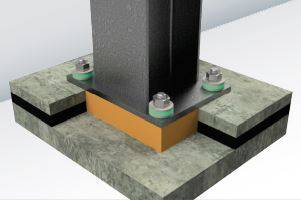

  • Structural column bases, especially vital in cold storage/freezer facilities.
  • Tank isolation block - reduces condensation by thermally isolating cooling equipment from its supporting structure.
  • Roof equipment and dunnage post support block – supports HVAC, fans, davits, anchors and other heavy equipment on building roofs while preventing heat transfer to the building interior.
  • Foundation connections, i.e. slab to foundation, foundation to wall.

Description

Fabreeka-TIM® RF is a high density, closed cell rigid polyurethane foam used as an effective thermal break for a variety of building envelope and cold storage applications. It is manufactured in several densities to support a range of load conditions. Fabreeka-TIM® RF properties make it impermeable by any type of liquid, including water and most solvents, thus suited for moisture, severe weather conditions or harsh environments. Additionally, it is resistant to mechanical stress and has exceptional insulating qualities which makes it a valuable asset to reduce thermal bridging in building envelope connections and cold storage applications. For optimal thermal break performance, the area around the fastener hardware should be taken into consideration. In addition to the Fabreeka-TIM® RF block, Fabreeka recommends Fabreeka-TIM® thermal break washers and bushings made from Fabreeka® material.


Features and benefits:

  • Made in the USA.
  • Used to achieve LEED certification.
  • Cost effective solution for low load structural connections in Lightweight, strong and durable.
  • Three densities to meet different load conditions.
  • Thicknesses range from 1/2” to 10” in 1/2”,1” or 2” increments as standard. More bespoke sizes are available for larger quantities.
  • Fast delivery.
  • Custom waterjet cut to your specification, including anchor bolt holes.
  • Time savings – products arrive at the site ready to use.
  • ISO certified company.
  • Lot control.
  • Creep resistant – resists deformation under load over time.
  • Closed cell material is impervious to water and other liquids.
  • Does not promote steel corrosion.
  • Functions in subgrade applications without rotting or dissolving.
  • Does not attract or sustain bugs or pests.
  • No release of chemical compounds into surrounding soil.
  • Compatible with concrete, grouts and adhesive.

General information

Color

Brown

Cream

Beige.

Green

Mint.

Finish

Natural

Material

Polyurethane

High density, closed cell rigid polyurethane foam.

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

One year

Uniclass

Pr_35_90_15_89 Thermal break connection platesPrimary

CAWS

E40/445 Insulating load transfer systems

E40/445 Insulating load transfer systems

E40/440 Load transfer systems

Specification data - Thermal break connection plates

Material

Closed cell rigid polyurethane foam.

Dimensions

-

Thickness (maximum)

254 mm.

In 12.7 mm, 25.4 mm and 254 mm increments.

(1/2”, 1” or 2” increments).

Thickness (minimum)

12.7 mm.

In 12.7 mm, 25.4 mm and 254 mm increments.

(1/2”, 1” or 2” increments).

Compressive stress (maximum)

Ultimate Compressive Stress PSI (Mpa).

To ASTM D1621/EN 826.

2,150 psi.

14.8 Mpa.

Operating temperature (maximum)

+80°C.

Operating temperature (minimum)

-200°C.

Product Reference

Fabreeka-TIM® RF series for light structural loads in compression

Density

450 kg/m³.

Colour

Brown.

Environmental information

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

Material is composed of a polymer blend and therefore recycling provider must be contacted to confirm feasibility of recycling.

Recycled content

0 %
