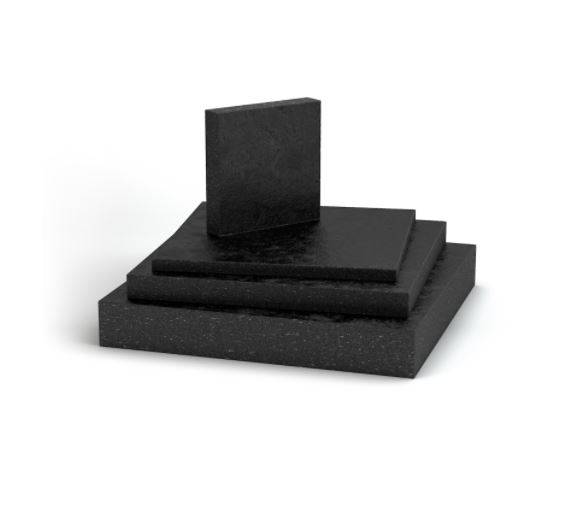

Fabreeka-TIM® LT15 Recycled Thermal Break for Light Loads

ACE Fabreeka UK

Light load thermal break.

Jump to:
+44 (0)1942 727440 Website

Application

Primarily for cost sensitive projects where the load is negligible or uniformly distributed.


Typical applications:

  • Parapets, soffits, roof to wall transitions.
  • Steel stud exterior walls, facades.
  • Masonry ties.
  • Concrete and precast joints.
  • Metal building framing.
  • Cladding attached support clips for Z-girts, C-channels and Hat channels.

Description

Fabreeka-TIM® LT15 material reduces thermal bridging or energy flow paths through highly conductive building components in the envelope design of many different building types.



Designed for light load applications with up to 1,500 psi loading, Fabreeka-TIM® LT15 serves as thermal break material which prevents thermal bridging and improves energy efficiency when incorporating sustainable elements into your building envelope. Applications range from facade support brackets and clips to metal building framing.



Fabreeka-TIM® LT15 material provides better thermal insulation than vinyl and plastics, reduces corrosion between dissimilar metal elements, and is made from recycled materials, which helps to achieve LEED credits.


Features and benefits:

  • Light load – up to 1,500 psi for cladding attachment support clips and metal building framing.
  • Optional adhesive backing for easier installation.
  • Providing energy savings with high return on investment.

General information

Color

Black

Finish

Natural

Material

Rubber

Recycled rubber.

Length

Bespoke

Width

Bespoke

Height

Thicknesses include 6.2mm, 12.7mm, 19.1mm and 25.4mm.

Bespoke

WarrantyDescription

One year

Uniclass

Pr_35_90_15_89 Thermal break connection platesPrimary

CAWS

E40/445 Insulating load transfer systems

E40/445 Insulating load transfer systems

E40/440 Load transfer systems

Specification data - Thermal break connection plates

Material

Recycled rubber.

Dimensions

-

Thickness (maximum)

6.1 mm.

12.7 mm.

19.1 mm.

25.4 mm.

Compressive stress (maximum)

10.34 MPa.

Operating temperature (maximum)

+70°C.

Operating temperature (minimum)

-40°C.

Product Reference

Fabreeka-TIM® LT15 recycled thermal break for light loads

Density

1153–1384 kg/m³.

72—86.4 lb/ft³.

ThermalConductivity

0.114 W/mK.

0.792 BTU in/h ft² °F.

Environmental information

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Recyclability

Material is mostly composed of recycled rubber compound that has been masticated, therefore not likely recyclable after use case.

Recycled content

90 %
