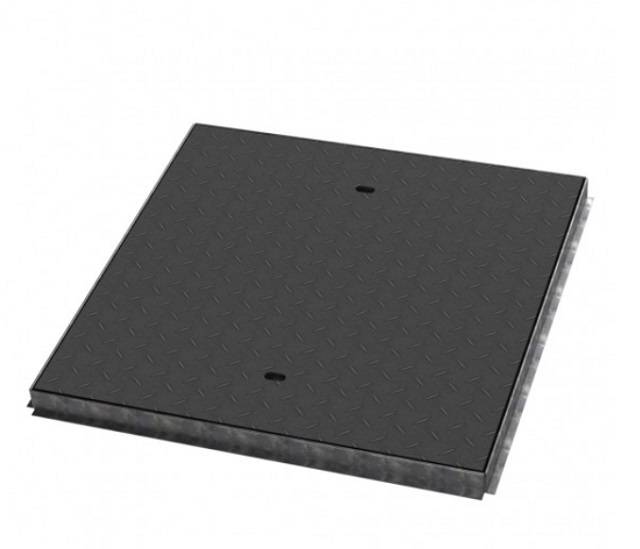

FAB TOP™ S10
Application

Solid Access Cover design to withstand slow moving traffic.

Description

Chequer durbar top access covers.

Features and benefits:

  • To suit clear a bespoke range of opening sizes.
  • Manufactured from high grade mild steel
  • Fabricated with a durbar pattern top to provide a non-slip surface.
  • Manufactured to FACTA specification.
  • Loading options from FACTA AAA, B, D.
  • Support by removable support beam.
  • Air tight and security locked optional.
  • Badging identification optional.

Application:

Solid Access Cover design to withstand slow moving traffic.

General information
Features

Manufactured in accordance to ISO: 9001 quality system

Shape

Square, Rectangular

Size

300 x 300 mm to 1000 x 1000 mm, dependent on clear opening size specified

Uniclass 2015
Pr_65_52_01_02 Access covers and framesPrimary
Specification data - Access covers and frames
Product Reference

FAB TOP™ S10

Standards

FACTA

Fabricated Access Covers Trade Association.

BS EN ISO 9001

Manufactured in accordance to ISO: 9001 quality system.

BS EN ISO 14001

BS OHSAS 18001

Materials

S275 Mild steel

Consult manufacturer for final tolerances.

Stainless Steel Grade 304

Stainless Steel Grade 316

Finish

Hot dip galvanized

To BS EN: ISO 1461.

Clear opening (minimum)

300 x 300 mm

450 x 300 mm

450 x 450 mm

600 x 450 mm

600 x 600 mm

675 x 675 mm

750 x 750 mm

900 x 600 mm

900 x 900 mm

1000 x 1000 mm

Load class (minimum)

AAA

B

D

Frame or support

Frame

Underneath support not required to take load

Integral accessories

None

Looped handled lifting key

FSP Part Code (COM000048).

Frame Fixing Bolt

FSP Part Code (COM0000309).

Standard product features

Features:

Manufactured in accordance to ISO: 9001 quality system.

Shape:

Square, Rectangular.

Size:

300 x 300 mm to 1000 x 1000 mm, dependent on clear opening size specified.

Third party certifications
  • Hot dip galvanized coatings on fabricated iron and steel articles : BS EN: ISO 1461
