FAB PAVE™ S50 SOLOSLIDE

Third party certifications:

BSI Kitemark
Certificate type

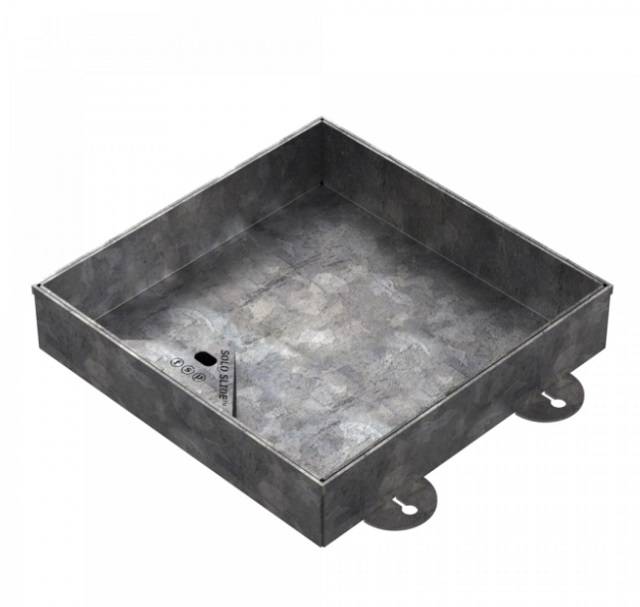

Driveway recessed cover and frame. Recessed cover to accept any landscape material from paving bricks to tarmac.

Jump to:

Application

Suitable for external use, allows for non-structural infill, Ideal for driveways, patios and other landscaping projects. Designed to blend in aesthetically with the surrounding area.

Description

Driveway recessed cover and frame. Recessed cover to accept any landscape material from paving bricks to tarmac.

Features and benefits:

To suit clear a bespoke range of opening sizes.

Manufactured from high grade mild steel.

Cover sides tapered to facilitate easy removal from frame.

One person operation when using SOLO SLIDE® key.

Available in 70 mm in tray.

Tested unfilled to FACTA.

Class loads AAA loading.

DDA Compliant.

Locking screws optional.

Badging identification optional.

Application:

Suitable for external use, allows for non-structural infill, Ideal for driveways, patios and other landscaping projects. Designed to blend in aesthetically with the surrounding area.

General information

Shape

Square or round

Dependent on clear opening specified.

Features

Manufactured in accordance to ISO: 9001 quality system

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

Specification data - Access covers and frames

Product Reference	FAB PAVE™ S50 SOLOSLIDE
Standards	FACTA Fabricated Access Covers Trade Association. BS EN ISO 9001:2015 Manufactured in accordance to ISO: 9001 quality system. BS EN ISO 14001:2015 BS OHSAS ISO 45001 Formerly BS OHSAS 18001.
Configuration	Recessed cover
Clear opening (minimum)	300 x 300 mm 450 x 450 mm 600 x 450 mm 600 x 600 mm
Load class (minimum)	FACTA AAA
Frame or support	Supplied with frame Underneath support not required to take load.
Integral accessories	None SOLO SLIDE Key FSP part code COM0000563. DDA complaint protective keyway cap FSP part code COM0000651. RESI - Bed Epoxy Resin FSP part code COM0001366. Frame Fixing Bolt FSP Part code COM0000309.
Materials	Mild steel Stainless Steel Grade 304 Stainless Steel Grade 316
Shape	Square or round Dependent on clear opening specified.

Standard product features	Features: Manufactured in accordance to ISO: 9001 quality system.

Third party certifications

BS EN: ISO 1461
BS EN: ISO 9001
BS EN: ISO 14001:2015
BS EN: ISO 45001 (formerly BS OHSAS 18001)
BS EN 124:2015

FAB PAVE™ S50 SOLOSLIDE

Square or round

Manufactured in accordance to ISO: 9001 quality system

FAB PAVE™ S50 SOLOSLIDE

FACTA

BS EN ISO 9001:2015

BS EN ISO 14001:2015

BS OHSAS ISO 45001

Recessed cover

300 x 300 mm

450 x 450 mm

600 x 450 mm

600 x 600 mm

FACTA AAA

Supplied with frame

None

SOLO SLIDE Key

DDA complaint protective keyway cap

RESI - Bed Epoxy Resin

Frame Fixing Bolt

Mild steel

Stainless Steel Grade 304

Stainless Steel Grade 316

Square or round

Features:Manufactured in accordance to ISO: 9001 quality system.

Features:
Manufactured in accordance to ISO: 9001 quality system.
