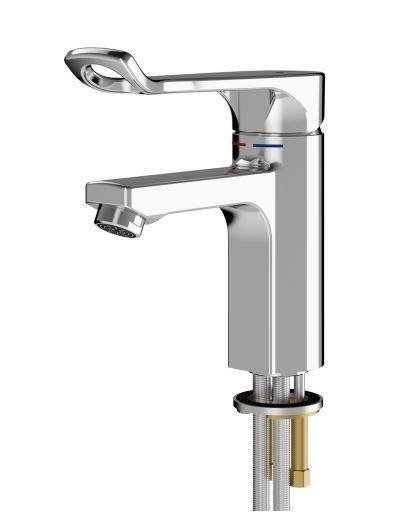

F5 Barrier-Free Lever Mixer Tap
Description

Single-lever mixer tap for use within accessible washing facilities. For connection to hot water and cold water via hoses, includes strainers.

Includes mixing cartridge with ceramic disc technology and thermostatic protection from scalding, permanently set to 38°C and with safety switch-off in the event of failure of the cold water supply.

Has a mechanism for an optional hygiene unit for automatic hygiene flushing and program-controlled thermal disinfection.

All-metal construction, high-polished chromium-plated brass.

Laminar jet controller with integrated flow rate regulator of 6.0 L/min.

General information

Size

Spout projection: 125 mm

Lever length: 150 mm

Diameter (nominal): DN15

Inlet: G 3/8"

Overall: 50 x 174 x 174 mm

Uniclass 2015

Pr_40_20_87_99 Washbasin thermostatic water supply sets

Primary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Washbasin thermostatic water supply sets

Product Reference

(F5LM1010) 208.0560.984

Hygiene unit

Required

Two variants available, consult manufacturer for details and insert requirements.

Not required

Accessories/ Other requirements

Consult manufacturer for details of available accessories, and insert requirements.

Standard product features

Operation:

Manual operation, tap hole mounted.

Size:

  • Spout projection: 125 mm.
  • Lever length: 150 mm.
  • Diameter (nominal): DN15.
  • Inlet: G 3/8".
  • Overall: 50 x 174 x 174 mm.

Technical characteristics:

  • Minimum flow pressure: 1 bar.
  • Volume flow rate (at 3 bar): 0.10 L/s.
  • Calculation flow rate (cold and hot water): 0.7 L/s.
