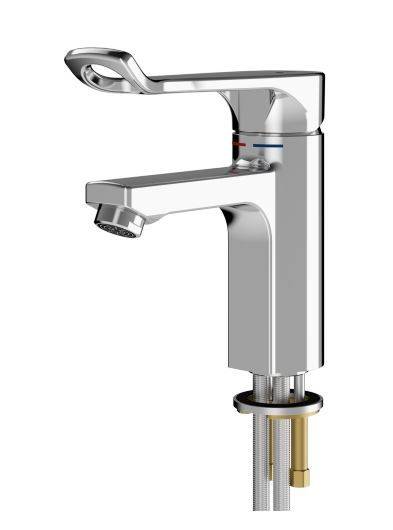

F5 Barrier-Free Lever Mixer Tap
Single-lever mixer tap.
Single-lever mixer tap for use within accessible washing facilities. For connection to hot water and cold water via hoses, includes strainers.
Includes mixing cartridge with ceramic disc technology and thermostatic protection from scalding, permanently set to 38°C and with safety switch-off in the event of failure of the cold water supply.
Has a mechanism for an optional hygiene unit for automatic hygiene flushing and program-controlled thermal disinfection.
All-metal construction, high-polished chromium-plated brass.
Laminar jet controller with integrated flow rate regulator of 6.0 L/min.
Size | Spout projection: 125 mm Lever length: 150 mm Diameter (nominal): DN15 Inlet: G 3/8" Overall: 50 x 174 x 174 mm |
Uniclass 2015 | Pr_40_20_87_99 Washbasin thermostatic water supply sets |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product Reference | (F5LM1010) 208.0560.984 |
Hygiene unit | RequiredTwo variants available, consult manufacturer for details and insert requirements. Not required |
Accessories/ Other requirements | Consult manufacturer for details of available accessories, and insert requirements. |
Standard product features | Operation: Manual operation, tap hole mounted. Size:
Technical characteristics:
|
