Ezeeduct SGL

Description

Ezeeduct SGL panelling comprises of high density solid grade laminate, 1400 kg/m³, impervious to water, suitable for the most demanding environments where strength and/ or water resistance is needed.

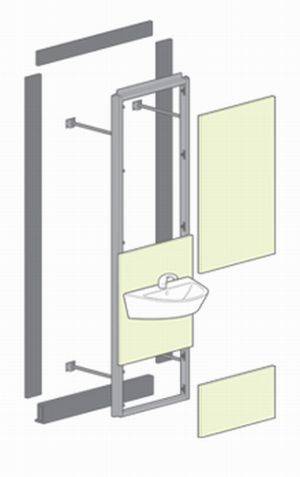

The panels are mounted on a lightweight aluminium frame, and are manufactured to specific site dimensions. CAD drawings will be supplied with each delivery.

Components:

  • Panels are supplied with polished black radiused edges.
  • Rigid aluminium frame.
  • Access panels.
  • Flash-gap panels.
  • Powder coated skirting.
  • Panel fittings.

General information

Uniclass 2015

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

K32/15 Duct/ wall lining panels

K32/150 Duct/ wall linings – panels and proprietary frames

Product range

Ezeeduct

Specification data - Duct and wall panel lining systems

Product Reference

Ezeeduct SGL

Panels:

-

Size

As schedule___

Colour

Refer to manufacturer's standard colour range.

Fixing

Hinged panel fittings

Lift off

Push fit

Skirting

Charcoal Grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Accessories

None

Access panels

Duct locks

Standard product features

Panels:

  • High density solid grade laminate, 1400 kg/m³.
  • Thickness (overall): 13 mm nominal.

Flash-gaps:

Supplied oversize for on-site adjustment.

Framing:

Factory assembled rigid extruded aluminium frame.

Tiebacks:

Threaded rods, adjustable in two planes, used to lock the frame to the building structure.

Product Options

Colours:

- Panels & Flashgaps: 36 laminate colour options, 4 digital prints and a selection of wood veneers - select from manufacturer's literature.

Fixing:

- Lift off panels require that a space is left between the top panel and the ceiling or that the top panel is push fit.

Accessories:

- Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.
