Ezeeduct MFC

Description

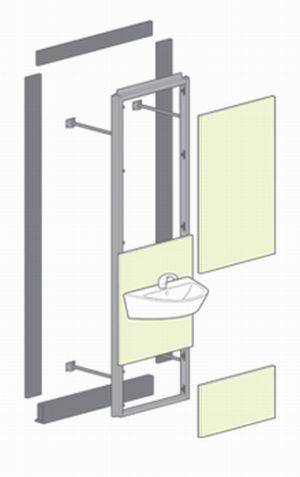

Ezeeduct MFC panelling comprises of moisture resistant, high performance melamine faced chipboard, suitable for dry environments with light to medium use. The panels are mounted on a rigid aluminium lightweight frame.

Panels are manufactured to specific site dimensions and CAD drawings will be supplied with each delivery.

Components:

  • Panels are supplied square edged with matching 1mm PVC lipping.
  • Rigid aluminium frame.
  • Access panels.
  • Flash-gap panels.
  • Powder coated skirting.
  • Panel fittings.

General information

Uniclass 2015

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

K32/15 Duct/ wall lining panels

K32/150 Duct/ wall linings – panels and proprietary frames

Specification data - Duct and wall panel lining systems

Product Reference

Ezeeduct MFC

Panels

-

Size

As schedule___

Colour

Refer to manufacturer's standard colour range.

Fixing

Hinged panel fittings

Lift off

Push fit

Skirting

Charcoal Grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Accessories

None

Duct locks

Standard product features

Panels:

  • Moisture resistant 650kg/m³ grade chipboard.
  • Thickness (overall): 18 mm nominal.

Facing:

  • Melamine.

Flash-gaps:

Supplied oversize for on-site adjustment.

Framing:

Factory assembled rigid extruded aluminium frame.

Tiebacks:

Threaded rods, adjustable in two planes, used to lock the frame to the building structure.

Product Options

Colours:

Large range of colour options, together with five woodgrain and four laminate finishes available - select from manufacturer's literature.

Fixing:

- Lift off panels require that a space is left between the top panel and the ceiling, or that the top panel is push fit.

Accessories:

- Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.
