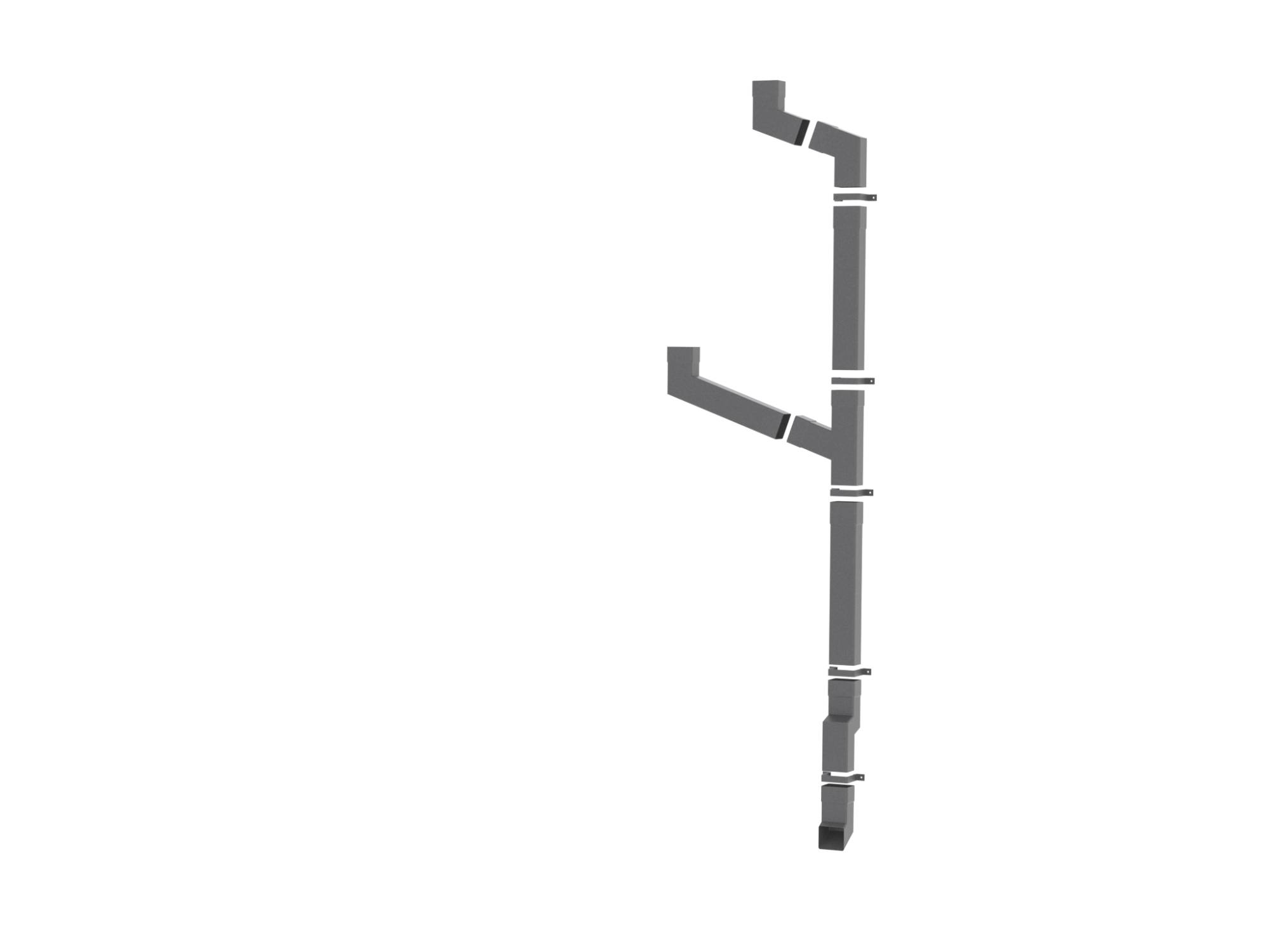

Extruded Rectangular Downpipe
Verified by manufacturer 5 months ago
SA1108 - Swaged Rectangle Downpipe 76 mm
SA1108 - Swaged Rectangle Downpipe 76 mm
A range of rectangular heavy duty extruded downpipes designed and manufactured to provide the essential architectural features appropriate to traditionally designed buildings.
Application
Designed and manufactured to provide the essential architectural features appropriate to traditionally and moderns designed buildings.
Can be used as a replacement for cast iron.
Description
A range of rectangular heavy duty extruded downpipes designed and manufactured to provide the essential architectural features appropriate to traditionally designed buildings. The systems can be used as a direct replacement for cast iron and can be used on both flush and projecting eaves.
Features and benefits:
- Manufactured from extruded aluminium to EN 755 and EN 573-3 Aluminium alloy 6063 to T4 temper grade.
- Manufactured under the ISO 9001-2015 quality management standards.
- Available in two standard sizes.
- Mill finish or polyester powder-coated in a matt finish in six standard RAL colour options.
- Can be used as a direct replacement for cast iron.
- Non-combustible to EN 13501-1:2007 + A1:2009.
- Life expectancy of 40 years or more in rural and suburban conditions and 25 years or more in industrial and marine conditions.
- Brackets built into downpipe (anti-vandal only).
General information
Color | White Guidance for specification option: RAL 9016 Traffic White. Black Guidance for specification option: RAL 9005 Jet or Ripple Black. Grey Guidance for specification option: RAL 7015 Slate Grey or RAL 7016 Anthracite Grey. Brown Guidance for specification option: Seamless Brown. Other Guidance for specification option: RAL colour. |
Finish | Matt Guidance for specification option: Powder-coated. Mill Powder-coated Guidance for specification option: Matt finish. |
Material | Aluminium |
Shape | Rectangle |
Length | 1000 mm 1500 mm Guidance for specification option: Anti-vandal only. 2000 mm 3000 mm |
Width | 76 mm 102 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | R10/370 Aluminium pipework R10/30 Aluminium pipework |
Specification data - Aluminium rainwater pipes and fittings
Form | Extruded to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy 6063 to T4 temper grade. |
Section | Rectangular. |
Size (nominal) | 76 mm. |
Minimum thickness or gauge | 1.80 mm.Guidance for specification option: Wall thickness. |
Finish and colour | |
Finish | Powder coating to BS EN 12206-1.Mill. |
Colour | RAL 9016 Traffic White.RAL 9005 Jet Black.RAL 7015 Slate Grey.RAL 7016 Anthracite Grey.Seamless Brown.RAL 9005 Ripple Black.Other. |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: Polyester powder-coated only; not applicable for mill finish. |
Integral accessories | Swaged downpipe.Offset bend type A 92.5° or 110°.Offset bend type B.Projected offset bend A/B.Plynth offset A/B.Y-branch A/B.Shoe A/B.Loose connector.Standard bracket.35 mm stand-off bracket.Manufacturer guidanceConsult manufacturer's literature for dimensions. |
Fire rating (to BS EN 13501) | Non-combustible to EN 13501-1:2007 + A1:2009. |
Jointing | Factory formed swages on each pipe length and component. |
Fixing method | Fixed from top down at maximum 3 m centres. Guidance for specification option: 2 no fixings, (No.8 x 50 mm twin threaded stainless screw) per bracket. |
Length | 1000 mm. 2000 mm. 3000 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | Ireland |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
