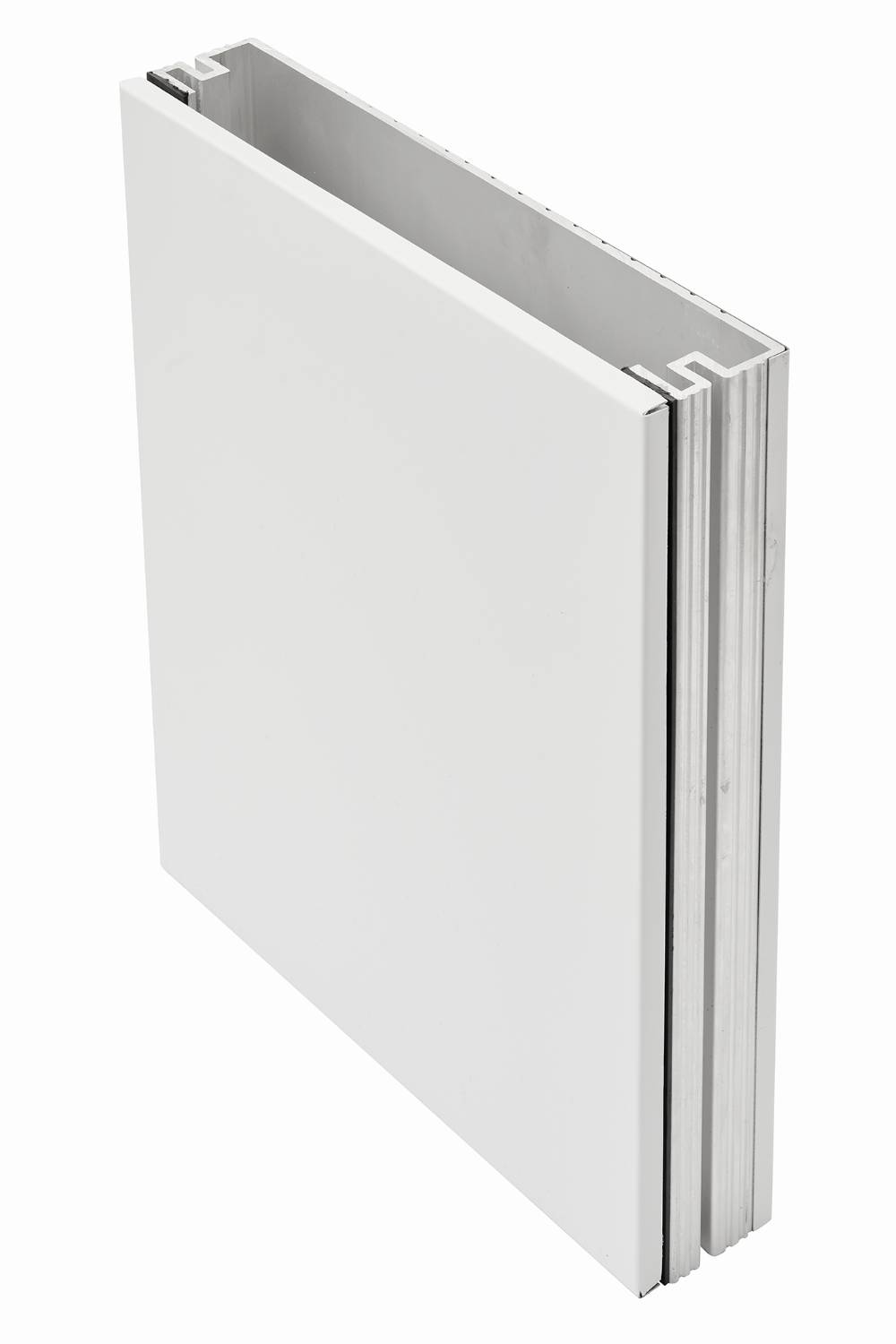

Extruded Dado Rail
Verified by manufacturer 3 days ago
50 mm extruded dado rail.
Application
- For internal clean room use.
- Void to run cables and install back boxes panel frame.
Description
The Puracore extruded dado rail was developed to offer additional functionality to cleanrooms. It has a void to run cables and install back boxes panel frame.
Features and benefits:
- Standard length of 3 m, for longer lengths consult manufacturer for options.
- Gilcrest Manufacturing can offer this extrusion both vertically and horizontally following a compression test.
- When used horizontally a capacity of 150 kg with option to extend this further can be easily achieved.
General information
Color | White |
Finish | Anti-microbial |
Material | Aluminium Steel |
Shape | Square Rectangle Other |
Length | 3000 mm |
Width | 50 mm |
Height | 240 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | V90/350 Cable trunking and cable ducting for wall and ceiling mounting V90/337 Cable guards |
Specification data - Wall and ceiling-mounted cable trunking and ducting
Classification data | |
Installation position | Surface-mounted on the wall. |
Format | Extruded dado rail. |
Sizes | 240 x 3000 mm. Guidance for specification option: Tolerances:
Manufacturer guidanceStandard length 3 m, consult manufacturer for longer. |
Compartments | One. |
Accessories and fittings | |
Generally | Manufacturer's standard. |
Types | Aluminium cruciform tongue. |
Core | Void. Guidance for specification option: To run cables and install back boxes panel frame. |
Surface material | 0.5 mm galvanized steel. |
Surface finish | PVC. Powder-coated. PET. |
Weight | 4.5 kg/m. Guidance for specification option: Without 10 mm line. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium Steel |
Recyclability | Can be recycled as scrap metal |
