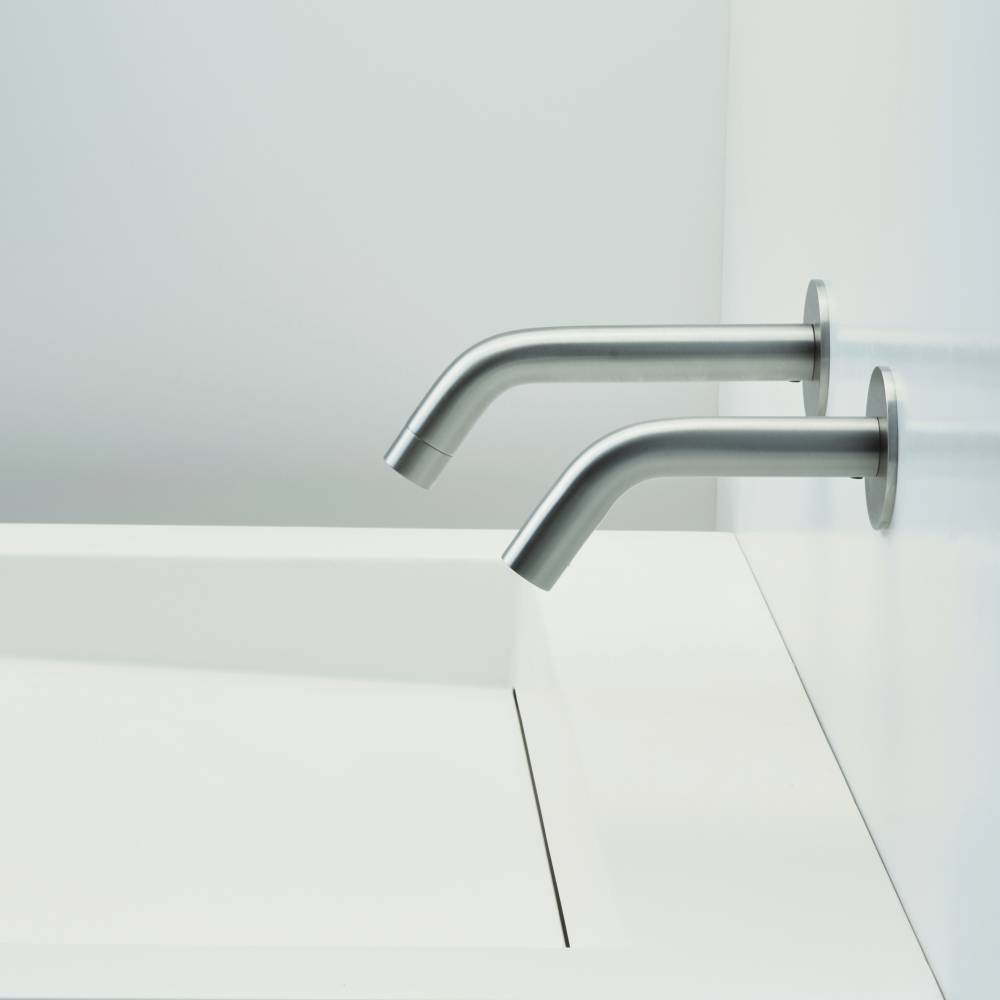

Extreme CS Duo Stainless Steel AISI 316 - Touchless Tap and Soap Dispenser

Verified by manufacturer 3 days ago

Stern Engineering

Matching Extreme CS Duo Stainless Steel AISI 316 - Touch-free wall-mounted electronic tap and matching soap dispenser complete with built in sensor, low battery indicator and 1 L soap bottle.

Jump to:
Request BIM
Website

Application

Suitable for concealed installation in brick walls for restroom applications that require enhanced hygiene using cold or premixed water. Particularly suitable for a range of environments including:

  • Restaurants.
  • Hospitality
  • Medical
  • Office Buildings
  • Stadium and Sports
  • Airports
  • Transportation
  • Education

Description

Matching Extreme CS DP Touch-free in Stainless Steel AISI 316 wall-mounted electronic tap and matching soap dispenser complete with built in sensor, low battery indicator and 1 L soap bottle or High traffic solution option with Multifeed Kit (link up to 6 soap dispensers to a large 6 liter soap tank with 1 central refill point).

Features and benefits:

Extreme CS DP Touch-free wall-mounted electronic faucet:

  • IP67 dual power input box that allows the faucet to be used with 9 V battery or 9 V transformer.
  • Stainless Steel AISI316 material.
  • Activated by concealed sensor built into the spout.
  • Filter included.
  • Sensor includes a low battery indicator.
  • Adjustable settings by remote control: sensor range, security time, delay in, delay out, on-off and reset to factory settings.

Matching touch free electronic Extreme cs dp soap dispenser for wall mounted installations:

  • Activated by infrared sensor.
  • Stainless Steel AISI316 material.
  • Features a low battery indicator.
  • Includes a 1 liter soap bottle and bottle support
  • High traffic solution option with Multifeed Kit (link up to 6 soap dispensers to a large 6 liter soap tank with 1 central refill point).
  • Optional for remote installation: extension cable and longer piping.
  • The following functions can be performed by using Stern remote control: soap quantity selection, refill the soap tank, temporary off, coming back to factory settings.

General information

Color

Silver

Finish

Stainless steel

Material

Stainless steel

Shape

Other

Length

-

Manufacturer guidance

Tap: 184 mm

Soap Dispenser: 140mm

Width

-

Manufacturer guidance

Tap: 65 mm

Soap Dispenser: 24 mm

Height

-

Manufacturer guidance

Tap: 100 mm

Soap Dispenser: 65 mm

Warranty description

Two year

Uniclass

Pr_40_20_87_16 Combined tap and soap dispensersPrimary

CAWS

N13/458 Soap dispensers

N13/62 Soap dispensers

N13/335 Washbasins

N13/30 Washbasins

SKU Code

237806

Specification data - Combined tap and soap dispensers

Classification data

Form

-

Tap

Automatic-action Extreme CS DP electronic faucet.

Soap dispenser

Automatic-action Extreme CS DP soap dispenser

Operation

-

Tap

-

Activation

Automatic sensor.

Temperature control

Manual, user-controlled.

Guidance for specification option:

Adjustable by remote control.

Soap dispenser

Automatic sensor.

Timer

Adjustable.

Water supply temperature

Guidance for specification option:

Consult manufacturer for more details and insert requirements.

Manufacturer guidance

Water supply temperature (maximum).

Body

-

Material

Manufacturer's standard.

Finish

Chrome-plated.
Other.

Colour

Natural.
Matt black.

Ingress protection (minimum)

IP67.

Guidance for specification option:

Battery box only.

Integral accessories

Filter.
Infrared sensors.

Mounting

Wall-mounted.

Capacity

1 L.

Manufacturer guidance

Soap capacity.

Water supply

Cold water.
Premixed water.

Power supply

12 V transformer.
9 V transformer.
6 x 1.5 V D batteries.
9 V alkaline battery.

Accessories

Not required.
Remote controller.

Guidance for specification option:

Used to operate a range of controls including:

  • Sensor range.
  • Security time.
  • Delay in.
  • Delay out.
  • On-off.
  • Soap quantity selection.
  • Refill soap tank.
  • Temporary off.
  • Factory reset

Extension cable.

Guidance for specification option:

For remote installation.

Longer piping.

Guidance for specification option:

For remote installation.

Sustainability data

Material

Stainless steel
