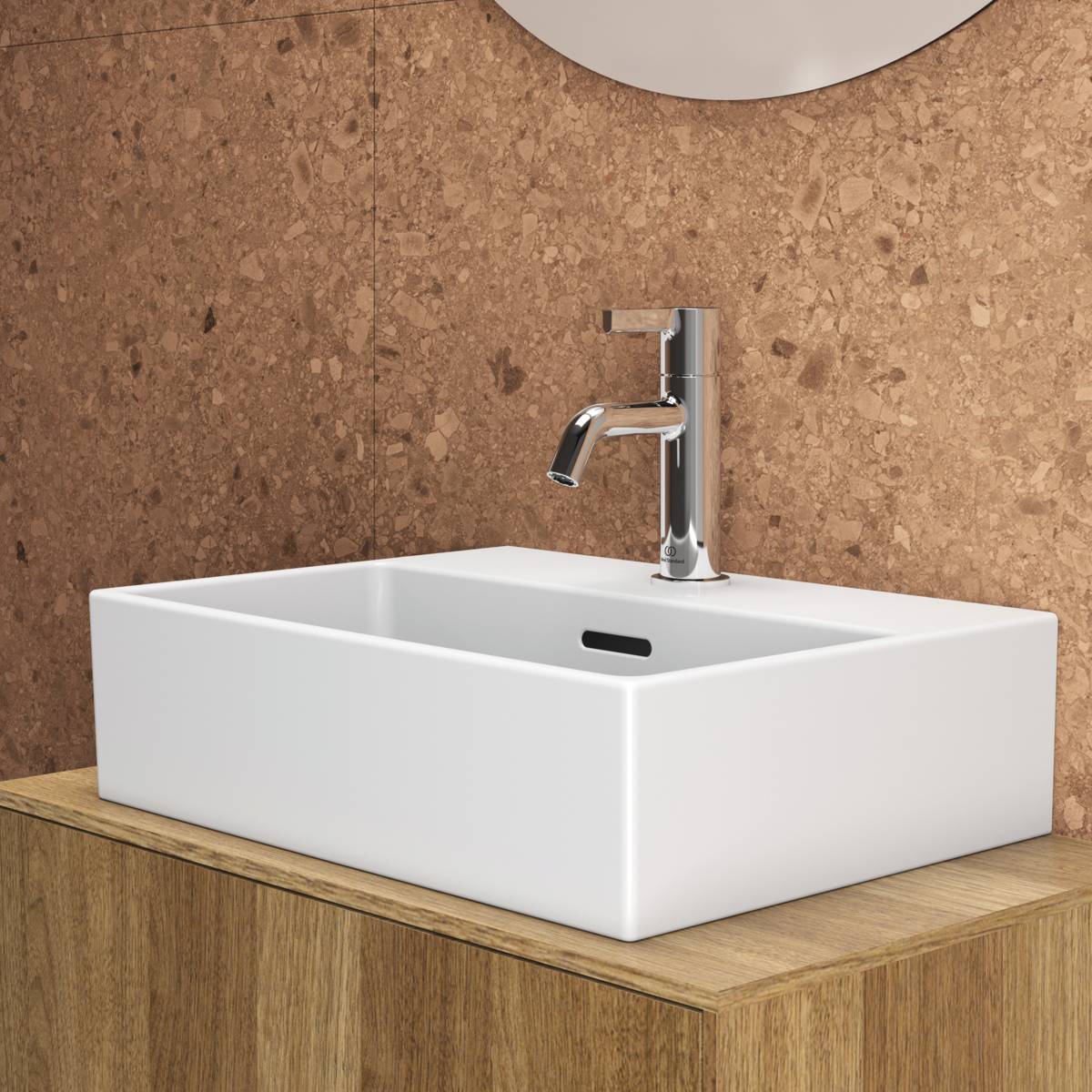

Extra 45 cm Hand Rinse Basin
Verified by manufacturer 22 days ago
EPD
Certificate type
Wall mounted hand rinse basin, one tap hole with overflow.
Application
For use as wall-mounted hand rinse basin.
Description
Extra 45 cm one tap hole hand rinse basin with overflow.
Features and benefits:
- Contemporary, perfectly proportioned design.
- No tap hole, one tap hole and three tap hole options.
- Integrated slotted overflow.
- Assortment of hand rinse, vessel and standard washbasins.
- Installation flexibility with wall, countertop and semi-countertop options.
- Washbasin wall mounted using E0157 wall fixing set with full pedestal mounted using two screws through the back of the basin (not supplied).
General information
Color | White |
Finish | Polished |
Material | Fireclay |
Shape | Rectangle |
Length | 350 mm |
Width | 450 mm |
Height | 150 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
SKU Code | T3732 |
Specification data - Wall-hung hand rinse basins
Classification data | |
Standard | To BS EN 14688. |
Form | Wall-hung hand rinse basin. |
Materials | |
Body | Fireclay. |
Finish and colour | Polished. Manufacturer guidanceWhite. |
Size | 450 x 350 x 150 mm. Guidance for specification option: W x D x H. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. Single tap hole, centred. Three tap holes. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Weight | 10.30 kg. |
Sustainability data
Contains Red List materials | No |
Material | Fireclay |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
EPD
EPD - Ceramic Fine Fireclay
Literature
Atelier Collections Brochure
