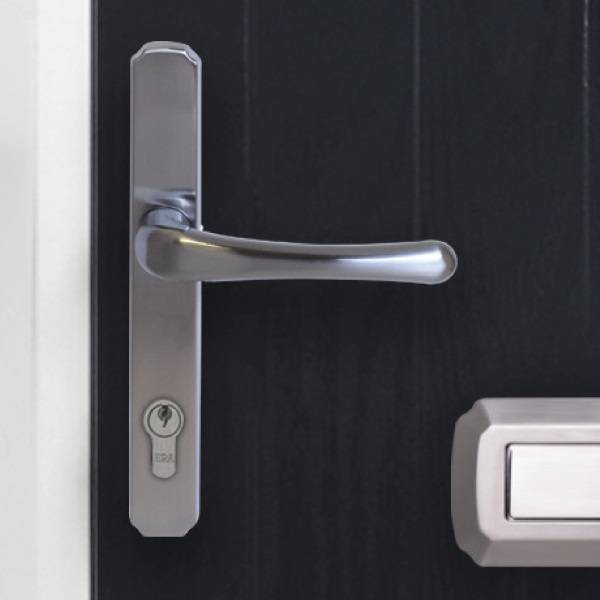

External PAS24:2016 Door

External PAS24:2016 Door

Johan Doors Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

PAS24:2016 bespoke made-to-measure timber enhanced security doorset with fire performance.

Jump to:
+44 (0)131 629 3373 www.johandoors.co.uk/

Application

Residential external use.

Description

PAS24:2016 bespoke made-to-measure timber enhanced security doorset with fire performance.


Features and benefits:

  • BM Trada Q Mark enhanced security with fire performance
  • Enhanced security door PAS 24:2016.
  • Auto-firing multi-point security lock.
  • Economically designed timber frame section (nominal 2" x 4" section).
  • Includes evidence for overhead and jamb concealed closers.
  • Up To 1047 x 2402 mm size for fire and security.
  • Provision for glazed apertures using fire rated P1A glazing.
  • Tested to BS 476:22, BS EN 1634-1, BS EN 1634-3, PAS 24:2016, BS 6375-1, BS6375-2, BS 6375-3.

General information

Shape

Rectangular

Color

Wide range available dependent on species and finish.


Finish

Can be primed for site finish, fully painted, laminate or veneer

Material

Wood

Wide range of wood species available.

Size

Made to measure as per schedule, maximum of 1047 x 2402 mm

Uniclass

Pr_30_59_24_37 High-security doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - High-security doorsets Enhanced data

Third party accreditation

BM Trada Q Mark Enhanced Security With Fire Performance.

Security performance

PAS 24:2016.

Fire rating

NFR.

FD30.

FD30S.

Door leaf

-

Thickness

44 mm.

33 dB maximum.

54 mm.

37 dB maximum.

Locking mechanism

Cylinder - Era fortress 3* Euro profile key/ key.

Cylinder - Era fortress 3* Euro profile key/ thumbturn.

Era secure fit classic multipoint lock system.

Product Reference

Johan External PAS24:2016 Door

Standard

Butt.

Half lap.

Mitre.

Mortice and tenon.

Threshold

Exitex MXS/FS15.

Stormguard slimline.

Configuration

Single leaf single action.

Size

As drawing.

Insert reference.

As schedule.

Insert reference.

Core

Solid laminated timber core with plywood facings.

Lippings

Beech.

Lipped all four edges, 6–12 mm, 640 kg/m³ density.

European ash.

Lipped all four edges, 6–12 mm, 640 kg/m³ density.

European cherry.

Lipped all four edges, 6–12 mm, 640 kg/m³ density.

KSK.

Lipped all four edges, 6–12 mm, 640 kg/m³ density.

Mahogany.

Lipped all four edges, 6–12 mm, 640 kg/m³ density.

Show more

Facing

Facing.

MDF.

Paint.

Paper foils.

PVC.

Show more

Type

Not required.

12 mm AGC Pyrobelite 9EG.

Apertures cut a minimum of 150 mm from door edge of leaf and minimum 14 0mm between apertures, maximum 0.6 m² area.


15 mm Pilkington Pyrostop 30-10.

Apertures cut a minimum of 150 mm from door edge of leaf and minimum 14 0mm between apertures, maximum 0.6 m² area.


FrameMaterial

Ash.

Beech.

KSK.

Mahogany.

Maple.

Show more

Frame finish

Laminates.

Paint.

PVC.

Timber veneers.

Intumescent seals

PVC encapsulated graphite based intumescent seal as Johan manufacturing details.

Acoustic drop seal

Not required.

Johan 67999.

Door closers

Jamb concealed closer.

Overhead closer.

Overhead concealed closer.

Third party certifications

  • BM TRADA: Q MARK - BM Trada Q Mark Enhanced Security With Fire Performance
