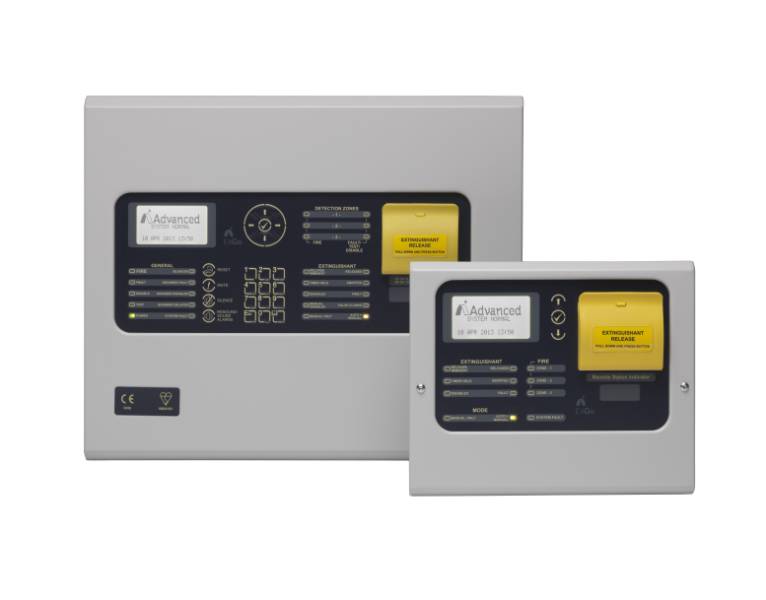

ExGo Remote Status Indicator Control Panel

Verified by manufacturer 10 days ago

Ex-3020

Advanced Variant:

Remote status indicator panels.

Jump to:
BOS
+44 (0)345 894 7000 Website

Application

Suitable for sensitive and strategic assets such as server and switch rooms, historic and cultural collections, transport and infrastructure.

Description

The ExGo Remote Status Indicators are available in two formats, a basic display only with optional key switches or a manual release version with optional key-switch for automatic/ manual mode.


The ExGo extinguishing system detects a fire in the same manner as a fire alarm system, but in addition to sounding alarms, it also controls the release of an extinguishing agent.


The extinguishing agent can take many forms from CO² through to specialist gases developed solely for extinguishing purposes. The agent is released into the atmosphere in the area where a fire has been detected, reducing the density of oxygen in the atmosphere around the fire, thus extinguishing the fire.


The extinguishing system is used primarily in areas of significant value/ strategic importance to businesses e.g. computer suites and telecom switch-rooms; thus providing a cost effective solution to protect your work place.


Features and benefits:

  • Small and compact.
  • RS485 network port.
  • Optional manual release or display only.
  • Surface mount or semi-flush option.
  • Up to 7 remote status indicators per one ExGo 1 loop panel.
  • 3-year warranty as standard.
  • Key switch option for mode select or enable controls.
  • Multiple languages.
  • Programmable inputs and outputs.
  1. RSI c/w LCD and LED indicators, manual release button, manual release button with mode select key switch.
  2. RSI c/w LCD and LED indicators, manual release button.
  3. RSI c/w LCD and LED indicators.

General information

Color

Grey

Other

Guidance for specification option:

Consult with manufacturer for more information.

Material

Steel

Shape

Square

Length

45 mm

Width

235 mm

Height

190 mm

Warranty description

Three year

Uniclass

Pr_75_50_33_33 Gas fire-extinguishing control panelsPrimary

CAWS

S92/420 Alarm devices

S92/420 Alarm devices

Specification data - Gas fire-extinguishing control panels

Accessories

LED indicators.

Type

RSI c/w LCD + LED indicators.

NumberOfPoles

2.

PowerFactor

0.

RatedCurrent

0.35 A.

RatedVoltage

18-28 V.

ExpectedLife

18 years.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

Metal enclosures, chassis plates, etc. are made of recyclable metal. Product life can be extended by flashing updated software. Paper packing used to protect products is recyclable. Manuals and datasheets are currently paper and recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

The packaging is made from recycled paper

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

2

IFC
-

2

Literature

ExGo Brochure

ExGo Brochure

Consultant Specification - Extinguishing Control System

Consultant Specification - Extinguishing Control System

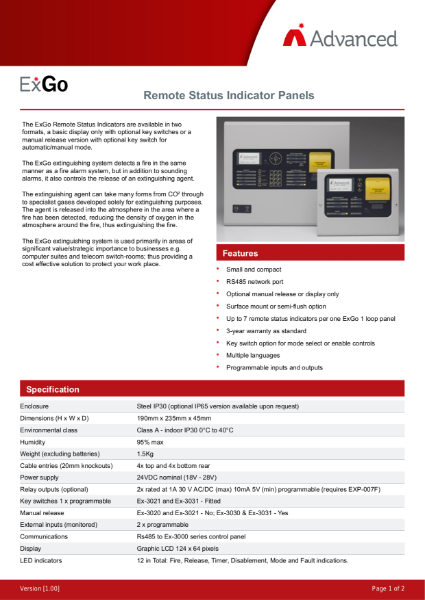

Datasheet - ExGo Remote Status Indicator Control Panel

Datasheet - ExGo Remote Status Indicator Control Panel

Case studies

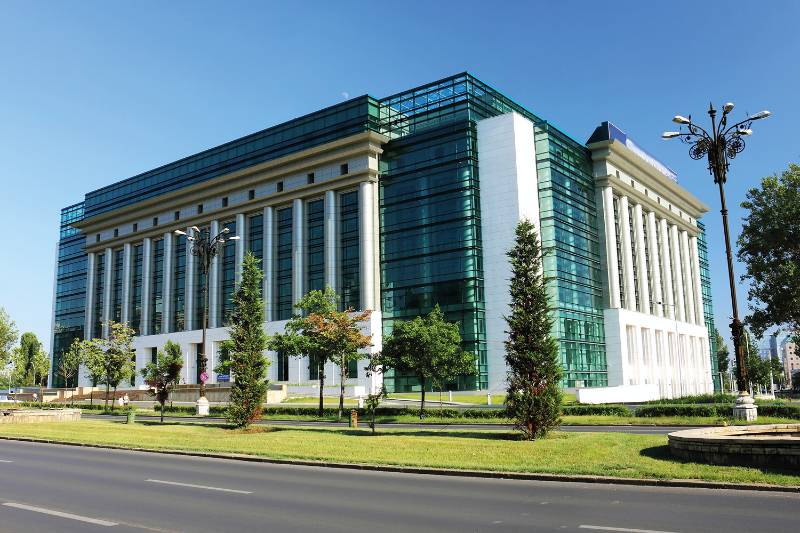

Romanian National Library, Bucharest

Romanian National Library, Bucharest

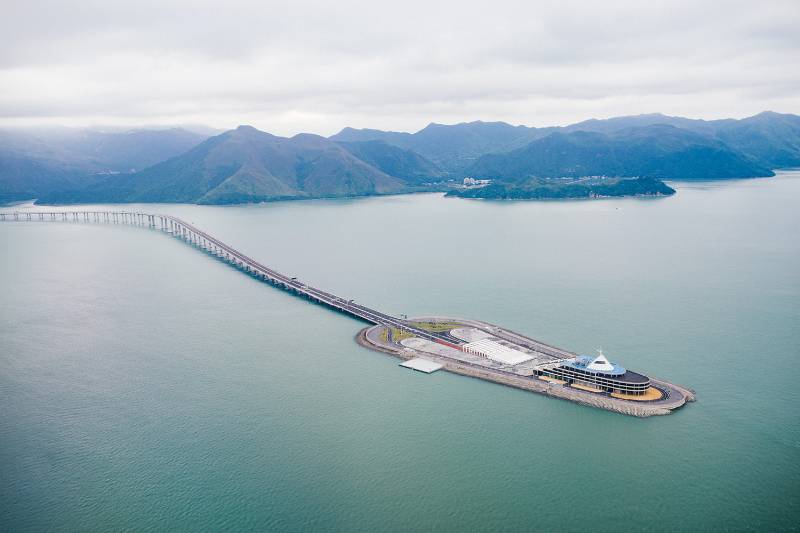

Hong Kong-Zhuhai-Macau Bridge

Hong Kong-Zhuhai-Macau Bridge

Similar products from Advanced

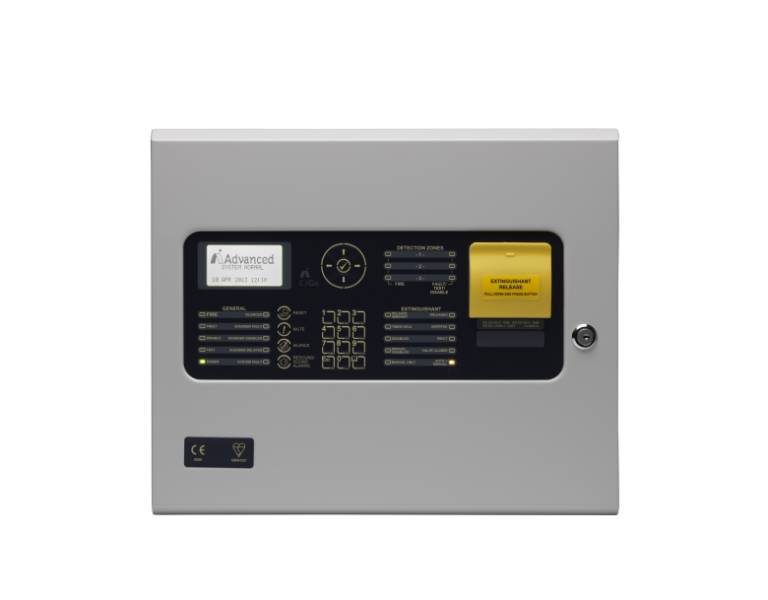

ExGo Three Zone Automatic Gas Extinguishing Panel
