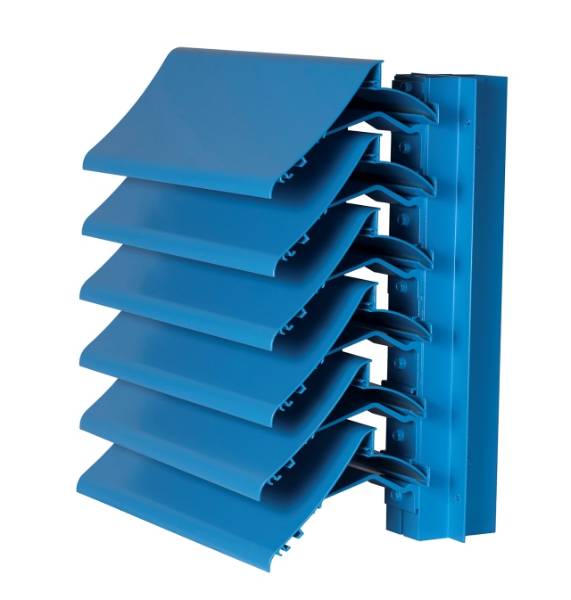

EWL Extruded Weather Louvre

Verified by manufacturer 8 months ago

Colt International Ltd

Single bank extruded weather louvre, providing high performance rain defence. Suitable for applications requiring screening and ventilation.

Jump to:
+44 (0)23 9245 1111 www.coltinfo.co.uk

Application

Suitable for applications requiring screening and ventilation.

Description

Single bank extruded weather louvre, providing high performance rain defence. Suitable for applications requiring screening and ventilation.


Features and benefits:

  • Highly aerodynamically efficient, reducing air resistance, allowing the plant and the aperture to be minimized thereby saving running costs.
  • Durable and maintenance free – UL is completely made from corrosion-resistant materials.
  • Thermal expansion of the louvres enabled – the louvres are clipped (and not riveted or screwed) to structural supporting mullions.
  • Proven performance, tested to EN 13030:2001.
  • Easy to install: can either be delivered to site pre-assembled or as a kit of parts.
  • 50 mm pitch.
  • If noise reduction is required, acoustic louvre panels can be placed behind EWL.

General information

Color

Silver

Other

Material

Aluminium

Shape

Rectangle

Uniclass

Ss_25_50_45_45 Louvre screen systemsPrimary

CAWS

H11/140 Louvres

L10/490 Roof ventilators

L10/650 Metal louvres

Product range

Architectural Louvre Products
HVAC Products

Specification data - Louvre screen systems

System performance

Louvre blades are extruded to a profile that gives both good rain defence and aerodynamic performance. The profile is designed for efficient water drainage.

Aerodynamic performance coefficient (minimum) of 0.3 Cv (inlet). Weather performance to EN 13030:2001, test at a wind speed of 13 m/s, 'A' 0.0–2.0 m/s, 'B' 2.5 m/s, 'C' 3.0 m/s.

Bird guard fitted to the rear to facilitate easy cleaning.

Screen framing

Aluminium 3005 H14 louvre frames.

Louvres

-

Type

Aluminium 6063-H T5 louvre blades.

Operation

Fixed, 50 mm pitch.

Blanking panels

None.

Single skin aluminium panel, mill finish.

Single skin aluminium panel with external decorative polyester powder paint finish to match louvres.

Insulated panel.

Acoustic panels

-

Facing

None.

Type R acoustic louvre panels.

Optimum acoustic performance with normal pressure drop.

Type LP acoustic louvre panels.

Normal acoustic performance with minimum pressure drop.

Banked

-

First bank

None.

Type R acoustic louvre panels.

Optimum acoustic performance with normal pressure drop.

Type LP acoustic louvre panels.

Normal acoustic performance with minimum pressure drop.

Second bank

None.

Type R acoustic louvre panels.

Optimum acoustic performance with normal pressure drop.

Type LP acoustic louvre panels.

Normal acoustic performance with minimum pressure drop.

Installation fasteners

Consult manufacturer for recommendations and insert requirements.

-

System accessories

None.

Bird guard, aluminium.

When guards are used, allow for additional resistance to airflow and reduced flow rate performance.

Bird guard, galvanized steel.

When guards are used, allow for additional resistance to airflow and reduced flow rate performance.

Bird guard, stainless steel.

When guards are used, allow for additional resistance to airflow and reduced flow rate performance.

Insect mesh.

Aluminium 5000 series, AL99.5 alloy, bright (mill) finish.

Turret unit(s).

Configuration

Insert drawing/ schedule if required.

Horizontal.

Vertical.

Frame

External flange.

Internal flange.

Standard.

Colour/ Finish

Mill finish.

Polyester powder-coated, total.

All exposed surfaces and edges of components and assemblies are coated excluding fixings, rivets and insect guards.

Consult manufacturer for colour options and insert requirements.

Polyester powder-coated, partial.

Only external louvre blades and frames, corners and cills are coated, the remaining components are mill finish.

Consult manufacturer for colour options and insert requirements.
