EvoMAGic Magnetic Dirt Separator

Verified by manufacturer 2 months ago

PETTINAROLI UK LIMITED

Magnetic dirt separators.

Jump to:
0121 3582012 Website

Application

For installation with Heat Pump system or standard boiler, particularly suitable for installations in fairly confined spaces.

Description

PA66 (GF30) magnetic dirt separator with strainer for horizontal/ vertical installation under the boiler, suitable for installations in fairly confined spaces. Medium: Water (glycol 30%, maximum).


Thanks to the magnet and the strainer, the magnetic dirt separator can capture and collect the suspended debris (magnetic and non-magnetic) carried around by the flow. A specific lamellar diverter conveys the flow inside a strainer delimited; the magnetic field generated by the removable magnet acts within it. The magnetic impurities are caught thanks to the magnet, whereas the non-magnetic particles are blocked by the strainer and tends to settle in the bottom body (calm chamber) of the dirt separator. Once the strainer is crossed, the cleaned flow rate moves on towards the generator (boiler, chiller or heat pump).


Equipped with:

  • Inspectable filter (700 μm).
  • Adjustable drain for maintenance operations.
  • Removable magnet (REN35 11.800-12.400 Gs) for maintenance operations.


Different versions are available:

  • 102H/ 102V – magnetic dirt separator with strainer.

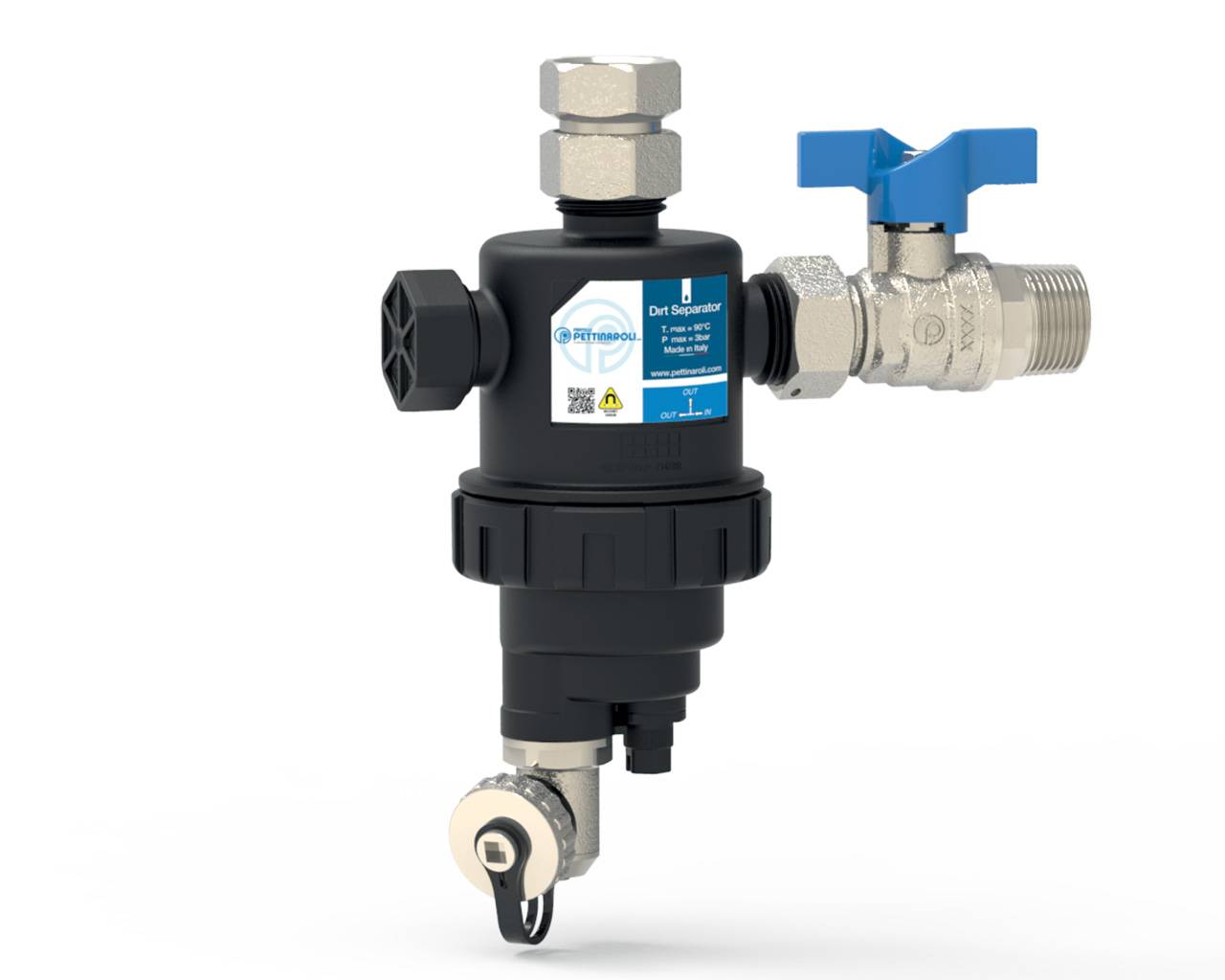

  • K102H/1 and K102V/1 – kit magnetic dirt separator with ball valve 52MET/1 ¾”M x ¾”F flat end swivel nut and union 1007WFF ¾”F x ¾”F flat end swivel nut.
  • K102H/2 and K102V/2 – kit magnetic dirt separator with two ball valve 52MET/1 ¾”M x ¾”F flat end swivel nut.

General information

Color

Black

Finish

Matt

Material

Polyamide

Glass Fibre

EPDM

Stainless steel

Shape

Other

Length

149 mm

Width

102 mm

Height

219 mm

Warranty description

One year

Uniclass

Pr_65_55_76_22 Dirt separatorsPrimary

CAWS

T90/110 Heating system

T90/110 Heating system

Specification data - Dirt separators

Arrangement

102H.

K102H/1.

102V.

K102V/1 linear installation.

K102V/1 angled installation.

K102V/2 linear installation.

K102V/2 angled installation.

103.

K103/2 – VERTICAL PIPES.

K103/2 – HORIZONTAL PIPES.

Material

PA66 (GF30).

MaximumWorkingPressure

4 bar.

Maximum temperature

90°C.

Strainer

700 μm.

Sustainability data

Contains Red List materials

No

Country of material origin

Portugal

Country of product manufacture

Portugal

Recyclability

Product is recyclable and can be returned to the manufacturer for recycling

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %
