Evolo Digital Cylinder
Application

  • Office buildings.
  • Public buildings/ administration.
  • Classrooms/ lecture theatres.
  • Hospitals/ healthcare facilities.
  • Residential buildings.
  • Shopping centres/ shops.
  • Industrial buildings.
  • Transportation/ airports.
  • Entrances, rooms and passages of the infrastructure such as server rooms, equipment or storage premises that are generally worth protecting.

Description

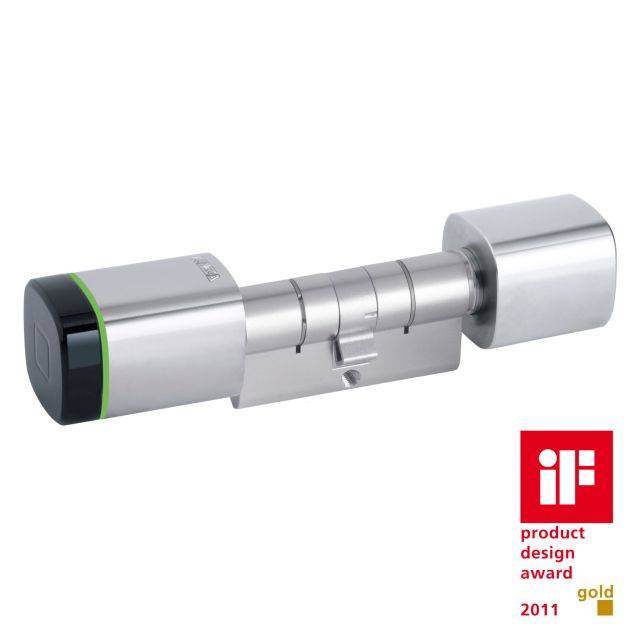

With its elegant design, the kaba digital cylinder controls access to the right areas. The cylinder is easily installed and has visual and acoustic operational signals giving instant access control.

Features and benefits:

  • Can be installed in most wood, glass or metal doors.
  • Suitable for installation in fire doors.
  • Increased drill protection for enhanced security.
  • Award-winning modern design.
  • Easy solution to upgrading a mechanical key cylinder to an electronic access control system.
  • Can be integrated as part of an access control system.
  • Can be used with most lockcases.
  • Standalone - no cabling required.
  • Simple installation.
  • Audit trails (with software).
  • Time zones (with software).
  • Can be used in conjunction with legic and mifare technologies.

Applications:

  • Office buildings.
  • Public buildings/ administration.
  • Classrooms/ lecture theatres.
  • Hospitals/ healthcare facilities.
  • Residential buildings.
  • Shopping centres/ shops.
  • Industrial buildings.
  • Transportation/ airports.
  • Entrances, rooms and passages of the infrastructure such as server rooms, equipment or storage premises that are generally worth protecting.

General information

Uniclass 2015

Pr_30_36_08_84 Special function door locks

CAWS

P21/26 Special function door locks

P21/530 Special function door locks

Specification data - Special function door locks

Product Reference

Evolo Digital Cylinder

Type

Anti-panic cylinder

Used on panic locks that require a defined resting position of the cam.

Dual digital cylinder

Media reader on external and internal turns (knobs).

Single digital cylinder

Media reader on external turn (knob).

Standard digital cylinder

Media reader on external turn (knob)/ free access via internal turn (knob).

Profile

Euro profile, 17 mm

Scandinavian oval

Swiss round profile, 22 mm

Door thickness

Insert requirement, various cylinder lengths are available to suit most applications.

Standard product features

Technical properties:

  • VdS Protected version class: BZ+.
  • Fire resistance (to BS EN 1634-2): 95 minutes.
  • Durability: >130 000 cycles.
  • BS EN 1303 class: 6.
  • BS EN 179/ EN 1125 class: 7.
  • Corrosion resistance class (to BS EN 1670): 3.
  • Sulphur dioxide resistance severity grade (to BS EN ISO 6988): 3.
