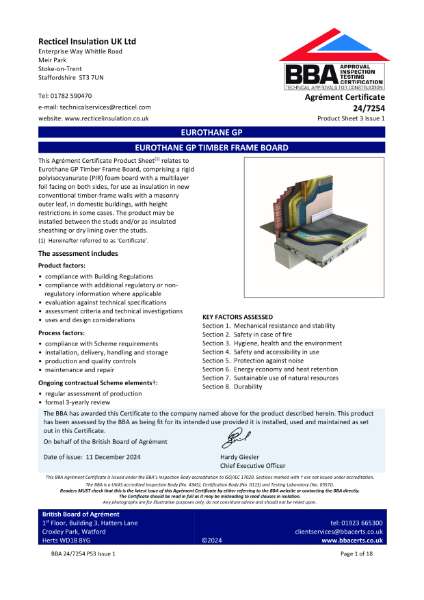

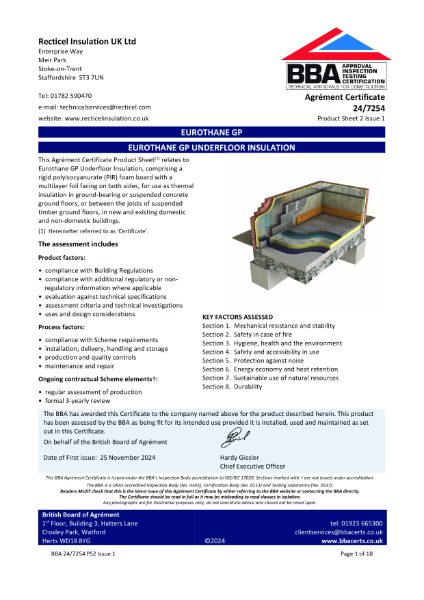

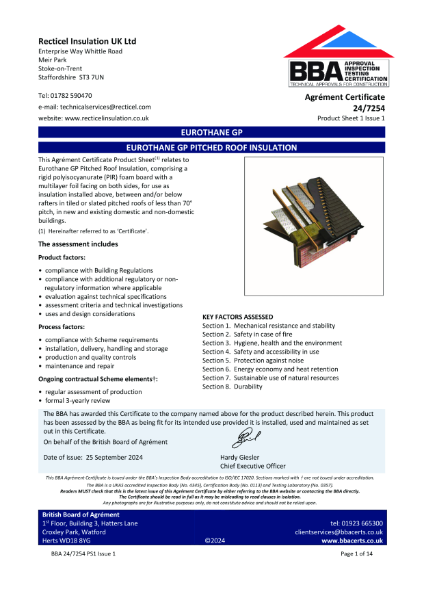

BBA Agrément Certificate
Rigid PIR insulation for multiple applications, including pitched roofs, floors and framed walls.

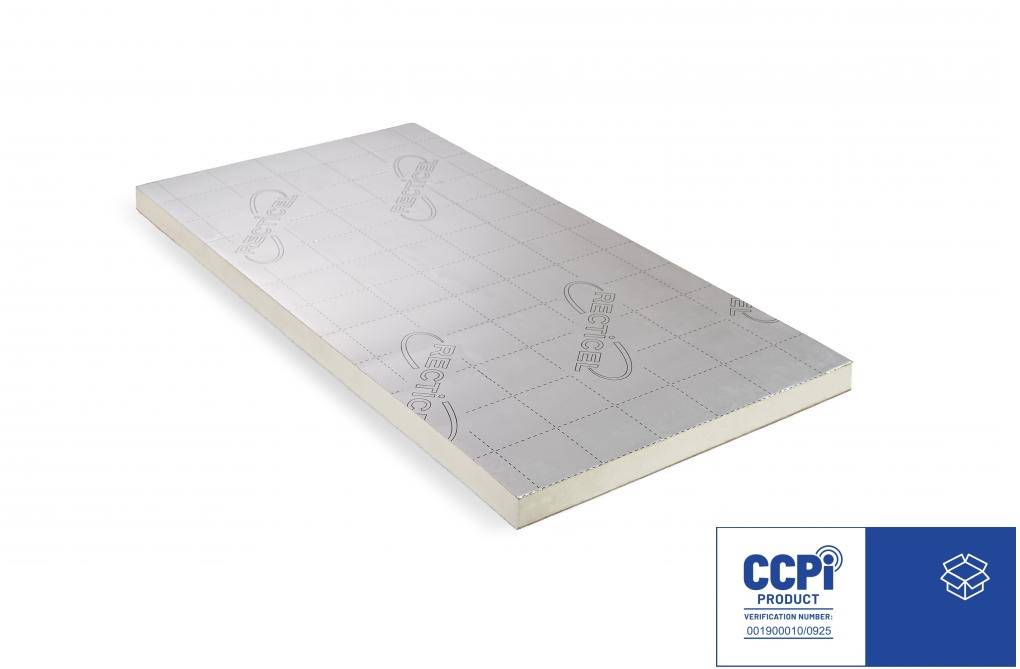

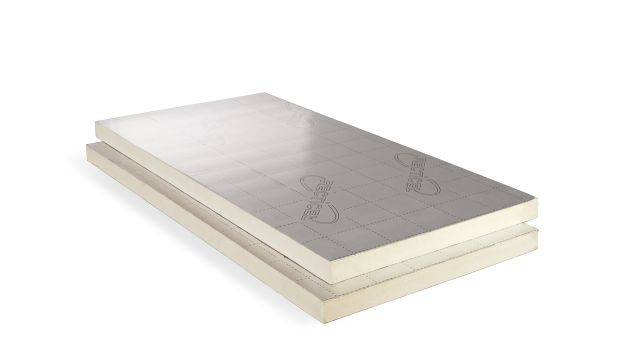

Eurothane® GP is a high performance rigid polyisocyanurate (PIR) foam board for use in multiple applications, including pitched roofs, floors and framed walls. It is faced on both sides with a multi-layer coated aluminium foil.
With increasing levels of insulation it is important to ensure the continuity of insulation at the junction of elements. In floors, this means the use of perimeter upstand insulation around the screed or slab. In pitched roofs and framed walls, the use of continuous insulation layers in addition to insulation installed between the structure is recommended. This provides a more efficient solution overall and makes it easier to achieve continuity of insulation.
Features and benefits:
E20/200 Proprietary underslab insulation
E20/30 Underslab insulation
K11/115 Battened plywood floating floor
K11/125 Battened particleboard floating floor
K11/135 Battened oriented strand board floating floor
K11/145 Battened cement-bonded particleboard floating floor
K11/20 Battened particleboard floating floor
K11/215 Plywood floating floor
K11/225 Particleboard floating floor
K11/235 Oriented strand board floating floor
K11/25 Particleboard floating floor
K20/150 Battened timber board floating floor
K20/20 Battened timber board floating floor
P10/140 Insulation fitted between rafters
P10/148 Multilayer blanket insulation fixed under or above rafters
P10/15 Insulation fitted between rafters
P10/190 Insulation fitted between studs
P10/220 Sound insulation within timber framed separating wall
P10/240 Insulation fitted between floor joists
P10/40 Insulation fitted betweenor to the face ofstuds
P10/45 Insulation laid between floor joists

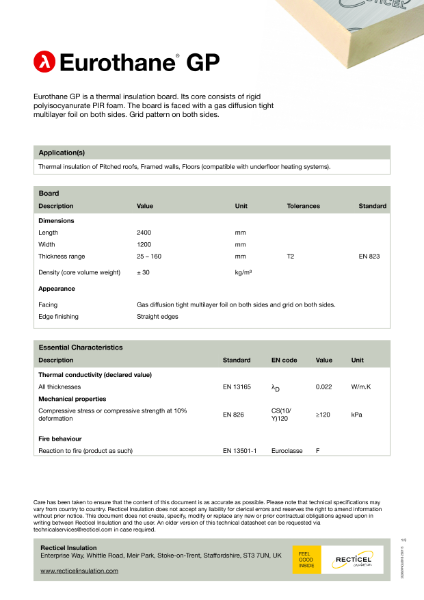

To BS EN 13165.
To EN 13501-1, Euroclass F.
Class 1 (BS 476-7).
Thermal conductivity (maximum)
Compressive strength at 10% deformation
25-49 mm: 120 kPa, 50-150mm: 140 kPa.
Face size (length x width)
2400 x 1200 mm.
Faced on both sides with a multi-layer coated aluminium foil.
Country of product manufacture
Recticel Insulation panels supply thermal efficient fabric to spectacular ‘TV’ home
Recticel provides the quality insulation for two city-based social housing developments
Recticel supplies the high quality insulation solution to transform an old school in Oxford
Recticel’s insulation boards provide thermal comfort for modern housing development

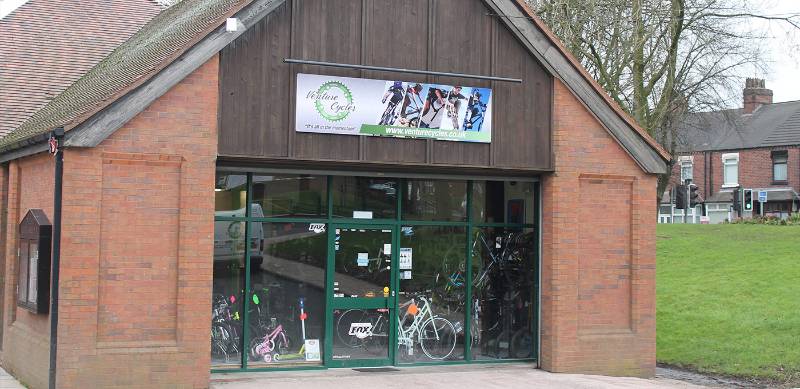

Stoke-on-Trent City Council, Retail Unit
