EuroPipe
Verified by manufacturer 23 days ago
Stainless Steel push fit drainage pipe & fittings for Soil, Waste, Rainwater, above and below ground drainage.
Application
- For residential, commercial, industrial and marine applications.
- Suitable for high rise residential / multi occupancy, food processing plants, hospitals, prisons, ships, factories and many more.
- One system suitable for use on both above and below ground installations.
- Interchangeable between vacuum and gravity systems.
Description
EuroPipe is a push-fit drainage pipe-work system for soil, waste and rainwater. All Blücher drainage products are produced in stainless steel grade AISI 304 or optionally grade AISI 316L. All Blucher products are chemically descaled and passivated to enhance the natural corrosion resistance and provide a uniform matt-silver surface finish. All stainless steel components are manufactured from recycled materials and are 100% recyclable.
Features and benefits:
- Suitable for high-quality drainage systems.
- Fire resistant A1 rated.
- High strength - low weight.
- Environmentally friendly.
- Corrosion resistant.
- Resistant to impacts and thermal stress.
- Fully fit and forget system.
- Long product life expectancy.
- Excellent hygienic properties.
- Easy installation.
- Whole-life cost advantages.
- Excellent flow capacities.
- All products are individually air tested before leaving the factory.
General information
Color | Silver |
Finish | Matt |
Material | Stainless steel Guidance for specification option: Grade AISI 304 or optionally grade AISI 316L. |
Uniclass | |
CAWS | R11/370 Stainless steel pipework |
Specification data - Stainless steel above-ground drainage pipes and fittings
Grade | 1.4301 (304).1.4404 (316). |
Jointing | Push-fit. |
Finish | Matt. |
External diameter | 40 mm. 50 mm. 75 mm. 82 mm. 110 mm |
Pipe | 150 mm. 250 mm. 500 mm. 750 mm. 1000 mm. Manufacturer guidanceVarious lengths available. Consult manufacturer and insert product code. |
Bends | 15°. 20°. 22.5°. 30°. 45°. Manufacturer guidanceConsult manufacturer and insert product code. |
Branches | Single branch. Double branch. Oblique branch. Swept branch. Manufacturer guidanceConsult manufacturer and insert product code. |
Fittings | Access pipes and bends. Sockets. Increasers and reducers. Adaptors. Rat stops. Manufacturer guidanceConsult manufacturer and insert product code. |
Accessories | Water traps. Clamps. Pipe hangers. Sealing rings. Manufacturer guidanceConsult manufacturer and insert product code. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Denmark |
Recyclability | 100% recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
BLÜCHER EuroPipe®
Case studies

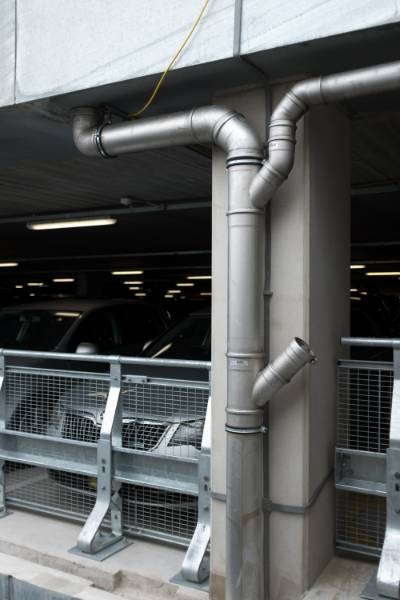

EuroPipe at Manchester Airport - Case Study
