EuroGuard® Flatform Heavy A1 Fencing

Name: EuroGuard® Flatform Heavy A1 Fencing
Brand: Jacksons Fencing
SKU: ewcx4bJicgSrx211ce53md

Verified by manufacturer 5 months ago

Jacksons Fencing

Product certifications:

QA Certificate
Certificate type
QA Certificate
Certificate type

LPS 1175 security-rated welded mesh panel fencing.

Jump to:

0800 408 4757 Website

Application

Suitable for sites requiring good visibility and security. Suitable for commercial premises, educational establishments, perimeters, public spaces and retail sites.

Description

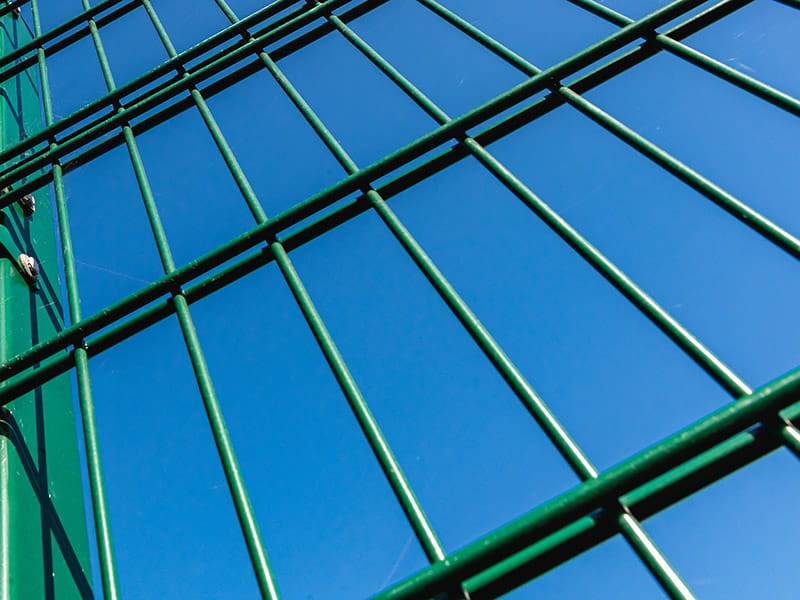

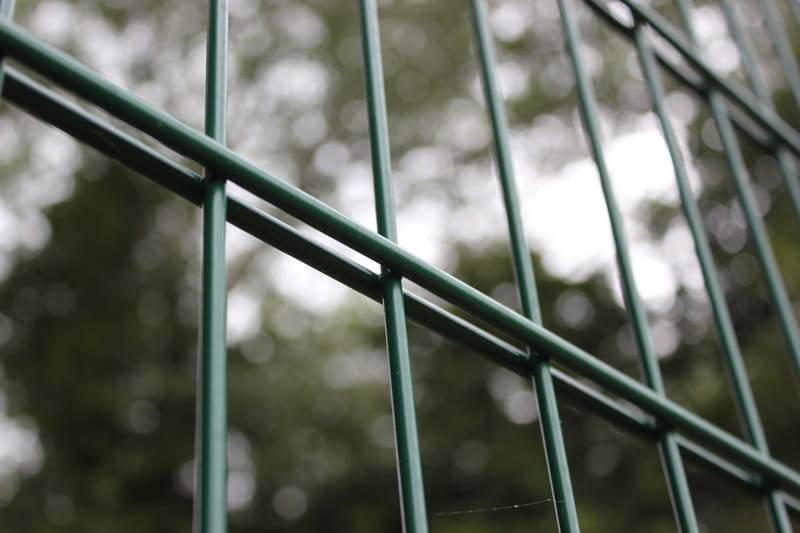

Security-rated welded mesh panel fencing. It consists of a flat profile, heavy gauge double horizontal wire welded mesh for strength and rigidity.

Features and benefits:

Anti-climb design.
LPS 1175 A1 (SR1) approved.
Secured by Design preferred specification.
Matching A1 gates available.
25-year guarantee.
Wire gauge measured before coating.
Zinc alloy coated for increased protection against rust.

General information

Color	Black Other Blue Brown Red Green Grey White Yellow Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Width	3034 mm 3054 mm
Height	2030 mm 2430 mm
Warranty description	25 year

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/125 Open mesh steel panel general-purpose fencing Q40/126 Open mesh steel panel security fencing Q40/27 Open mesh steel panel general-purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing

Product range	LPS 1175 Certified Fencing Mesh Security Fencing

Specification data - Metal mesh panel fencing systems

Classification data
Category	2. Guidance for specification option: Security-rated fencing.
Posts	Manufacturer's standard. Guidance for specification option: Fence height 2030 mm: 60 x 40 mm. Fence height 2430 mm: 80 x 60 mm. Manufacturer guidance Colour/ finish specified separately below.
Post foundations	Over length set in concrete. Guidance for specification option: As standard. Base plated to bolt down onto concrete. Cranked to suit wall mounting. Manufacturer guidance Post centres: 3034 mm.
Panels	200 x 50 mm mesh, 2030 mm high. 200 x 50 mm mesh, 2430 mm high. Manufacturer guidance 3000 mm wide as standard. Wire is 8 mm (horizontal-double) or 6 mm (vertical-double). Colour/ finish specified separately below.
Fence topping	Security toppings. Guidance for specification option: Consult manufacturer and insert requirements. Fence spikes. Guidance for specification option: Consult manufacturer and insert requirements. Security comb. Guidance for specification option: Consult manufacturer and insert requirements.
System accessories	None. Matching gates. Guidance for specification option: Specified separately.
Posts	Galvanized. Guidance for specification option: Hot-dip galvanized to BS EN 1461. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: To BS EN 13438. Special order, insert requirements. Marine coated. Guidance for specification option: For installations within 500 m of salt water or estuaries.
Panels	Zinc alloy-coated. Guidance for specification option: Galfan® zinc alloy coated. Zinc alloy-coated and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Zinc alloy-coated and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Zinc alloy-coated and powder-coated, other. Guidance for specification option: To BS EN 13438. Special order, insert requirements. BS or RAL code. Marine coated. Guidance for specification option: For installations within 500 m of salt water or estuaries.
