NBS Source

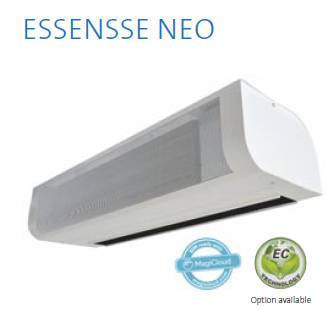

Essensse Neo Air Curtain Heater
Compare variants

Application

Suitable for a range of environments from small shops and restaurants to office buildings and banks.

Description

A high performance and visually attractive air curtain with adjustable air outlets.


Features and benefits:

  • Air is blown out steadily at high pressure through the unique "straw system" outlet with greater air flow to provide the best possible seal across a doorway.
  • The inlet grille acts as an air filter removing dust and airborne contaminants.
  • The grille can be periodically wiped or vacuumed, ensuring easy maintenance.
  • The AirGENIO comfort controller is supplied as standard, which offers automatic control with manual override to adjust the air curtain's performance efficiently to any application.
  • Option to upgrade to the advanced AirGENIO superior controller, which offers modulating heat output for both electric and water heaters using a suitable valve.
  • Tested to ISO 27327-1.

General information

Shape

Rectangle

Color

Any RAL colour available. Consult manufacturer and insert requirements.

White

As standard.

Size

1190 x 377 x 252 mm

1600 x 377 x 252 mm

2100 x 377 x 252 mm

2510 x 377 x 252 mm

Uniclass

Pr_70_60_36_02 Air curtainsPrimary

Specification data - Air curtains Enhanced data

Third party certification

CE Marked.

Heating method

Electric.

Output

0.17 kW.

Air volume

1500 m³/h.

Mounting height

2.8 m.

Casing finish

Manufacturers standard.

Accessories

Not required.

AirGENIO superior controller.

Voltage

400 V.

Frequency

50Hz.

Weight

25.5 kg.

Noise

Noise level at 3 m.

53.8 dB.

Dimensions

1190 x 377 x 252 mm.

NominalHeatingCapacity

6.3 kW.

Fan

AC fan.

EC fan.
