Escutcheons - Euro - Oval and Blank Escutcheons

Verified by manufacturer 3 months ago

750 - Rose for knobs

Allgood Ltd Variant:

A range of escutcheon plates for Oval and Euro profile cylinders.

Jump to:
+44 (0)121 359 4415 Website

Application

Suitable as an accessory to commercial and public doors.

Description

A range of escutcheon plates includes plates for oval and Euro cylinders, concealed fixings and swing covers. The escutcheon plates are available in a range of finishes.

============================

750 Modric Open Rose for Levers or Knob Handles

• 47mmø x 2.5mm

• Supplied with visible screw fixings

• Suitable for Levers and Knob Handles

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 60 minutes on timber doors and 120 minutes on metal fire doors

• Grade 316 stainless steel

• Hand finished

Finishes: SS · PS

============================

761Q Modric Circular Multi-purpose Blank Rose

• 50mm ø x 3mm

• Supplied with concealed face fixings

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Hand finished

• Grade 316 stainless steel

• 25 year mechanical warranty

Finishes: SS · PS

============================

796 Modric Circular Escutcheon for Euro Profile Cylinder

• 47mm ø x 4mm

• Supplied with concealed face fixings

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Hand finished

• Grade 316 stainless steel

• 25 year mechanical warranty

Finishes: SS · PS

============================

796Q Modric Euro Profile Cylinder Escutcheon

• Ø50mm x 4mm

• Supplied with concealed face fixings

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Grade 316 stainless steel

• Hand finished

• 25 year warranty

Finishes: SS · PS · BF

============================

XX796Q Continental Euro Profile Cylinder Escutcheon

• 50mm ø x 4mm

• Supplied with concealed face fixings

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 60 minutes on timber doors

• Raw Material Brass with applied finish

• Hand finished

• 25 year mechanical warranty

Finishes: PBUL · SBL · PN · PEN · OPB · MBB · RB

============================

796Q Contego Euro Profile Cylinder Escutcheon

• 50mm ø x 4mm

• Supplied with concealed face fixings

• Formed from Contego antimicrobial copper alloy

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Hand finished

• Aesthetic of stainless steel

• 25 year mechanical warranty

Finishes: CS

============================

797 Modric Square Euro Profile Cylinder Escutcheon

• 50mm x 50mm x 3.3mm

• Supplied with concealed face fixings

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Hand finished

• Grade 316 stainless steel

• 25 year mechanical warranty

Finishes: SS · PS

============================

2110K Allgood Hardware Katkin / Budget Lock escutcheon

• Budget Lock Escutcheon

• Ø38mm with offset 16.5mm hole

• 3mm thickness

• Supplied with visible pozi head woodscrew fixings

• Grade 316 Stainless Steel

Finishes: SS ·


============================

2155Q Modric Lever Key Escutcheons with concealed fixings

• 50mm ø x 3mm

• Supplied with concealed face fixings

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Hand finished

• Grade 316 stainless steel

• 25 year mechanical warranty

Finishes: SS · PS


============================

2157Q Modric Lever Key Escutcheon with Swing Cover

• 50mm ø x 3mm

• Supplied with visible Torx screw face fixings

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Hand finished

• Grade 316 stainless steel

• 25 year mechanical warranty

Finishes: SS · PS

============================

98580 Alite™ Budget Lock Escutcheon

• Ø20mm x 13mm

• Interference type fit

• Suitable for use with budget locks

• Grade 304 stainless steel

• 15 year manufacturing warranty

Finishes: SS ·


============================

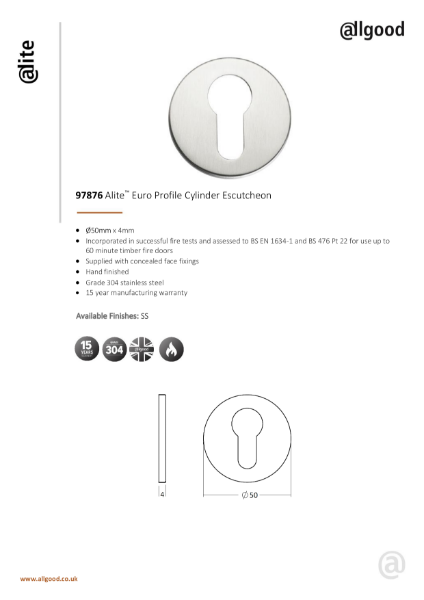

97876 Alite™ Euro Profile Cylinder Escutcheon

• Ø50mm x 4mm

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 for use up to 60 minute timber fire doors

• Supplied with concealed face fixings

• Hand finished

• Grade 304 stainless steel

• 15 year manufacturing warranty

Finishes: SS ·

============================

97879 Alite Narrow Stile Euro Profile Escutcheon

• Grade 304 stainless steel

• Supplied with concealed face fixings

Finishes: SS ·


============================

General information

Color

Bronze

Silver

Finish

Polished

Guidance for specification option:

Polished stainless steel, patinating polished brass or hand polished nickel.

Satin

Guidance for specification option:

Satin stainless steel or satin burnished brass.

Anodized

Guidance for specification option:

Modric polished etched and anodized aluminium.

Material

Stainless steel

Aluminium

Shape

Circle

Oval

Warranty description

25 year

15 year

Uniclass

Pr_30_36_33_27 EscutcheonsPrimary

CAWS

P21/48 Escutcheons

P21/710 Escutcheons

Specification data - Escutcheons

Material and finish

Stainless steel.

Colour

Simulated bronze.

Modric polished etched and anodized aluminium.

Polished stainless steel.

Satin stainless steel.

Keyhole type

Not applicable.

Dimensions

47 x 3 mm.

Guidance for specification option:

Diameter x depth.

Fire resistance

Not applicable.

Fixing

Supplied with visible screw fixings.

Standards

To BS EN 1634-1, BS 476 Pt 22.

Finishes

SS · PS.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
