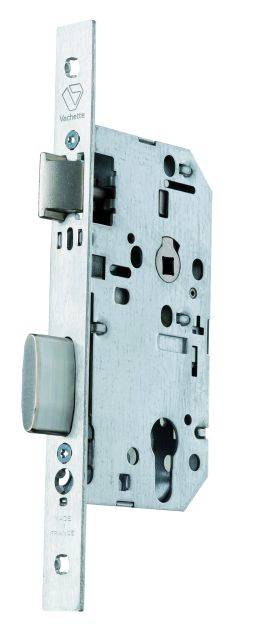

Escape Sash Lock D458
Description

Features:

  • Available with 60 mm backset.
  • Latchbolt and double-throw 20 mm stainless steel deadbolt.
  • Split follower lock; requires lever furniture with split spindles.
  • Handing of the latchbolt and escape follower are both reversible.
  • Available in both round and square faceplate.
  • Key can be removed in locked or unlocked position.
  • Double-throw stainless steel deadbolt thrown up to 20 mm by two 360° turns of key or thumbturn.
  • 10 year guarantee.

Function:

- Outside:

  • The deadbolt is operated with key.
  • The latchbolt is retracted with handle.

- Inside:

  • The deadbolt is operated with thumbturn or key.
  • Latchbolt and deadbolt are retracted with handle.

Suitable Euro profile cylinders:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from - http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644200

General information

Features

Available with 60 mm backset

Latchbolt and double-throw 20 mm stainless steel deadbolt

Split follower lock; requires lever furniture with split spindles

Handing of the latchbolt and escape follower are both reversible

Available in both round and square faceplate

Show more

Finish

Satin stainless steel

Uniclass 2015

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Escape Sash Lock D458

Handing

Left hand inward opening

Left hand outward opening

Right hand inward opening

Right hand outward opening

Faceplate

Square

Round

Standard product features

Finish:

Satin stainless steel.
