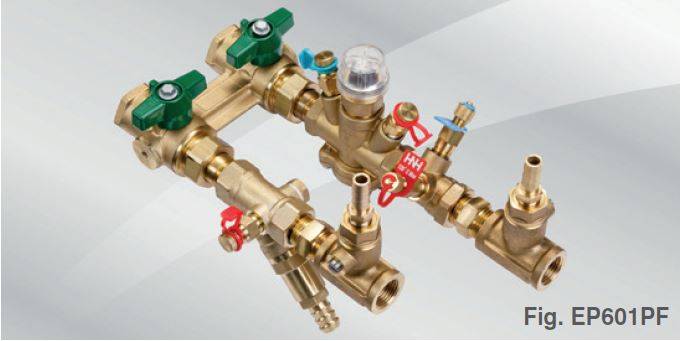

EP601PF Hook-Up Elite Prime - Remote Mounted
Verified by manufacturer 10 days ago
DN15/15
DN15/15
A pre-assembled valve set with PICV, FMD, strainer/ drain and flushing valves.
Application
Suitable as valve assembly for fan-coil or terminal unit.
Description
DZR brass pressure independent control valve with strainer drain, flow measurement device and flushing drains, PN16.
Features and benefits:
- Compact, pre-fabricated unit – now available with Elite Prime PICV with a wide range of settable flows to suit all applications.
- All valves are subject to both a pressure test, in accordance with BS EN 12266-1, as well as a flow limitation test, in accordance to BSRIA BTS1.
- The test provides reassurance of performance and accuracy within each valve.
- Provides accurate flow rates and differential pressure control, as well as flow measurement (EP601PF) with system flushing and isolation.
- DZR H Body tested to 3.1 x Design Working Pressure (DWP) during development for design robustness and tested to EN12516-2 to comply with the Pressure Equipment Directive (PED).
- Fully assembled and factory tested unit reduces installation time, costs and specification risks.
- The Fig. 1934 PICV is available in 400 kPa and 800 kPa rated variants.
- On-Off, modulating or feedback actuators are available separately to match specification.
- Valve assembly will be labelled to include the terminal reference number and flow rate.
- Preassembled to the requirements of each individual terminal unit, to include a flushing by-pass with integral isolation valve.
General information
Color | Yellow Guidance for specification option: Body assembly. Green Guidance for specification option: Lever. Blue Guidance for specification option: Downstream flow set point indicator. Red Guidance for specification option: Upstream flow set point indicator. Grey Guidance for specification option: Regulator cap. |
Material | Brass Guidance for specification option: Body assembly. |
Uniclass | |
CAWS | S90/650 Flow reducing/ servicing valves S90/650 Flow-reducing/ servicing valves S92/435 Sprinkler valve sets S92/435 Control valve sets |
Specification data - Irrigation control valves
Regulating function | Flow rate. |
Operation | Non-autonomous. |
Connections | BSP Taper.Guidance for specification option: Strainers, tailpieces and flushing bypass body. |
Inlets/outlets diameter | DN15/15. Manufacturer guidanceNominal. |
Dimensions | 269 x 214 x 76 x 83 mm. Manufacturer guidanceNominal A x B x C x D. |
Weight | 3.4 kg. |
PressureRange | Temperature: -10 to +100°C: 16 bar. |
Integral accessories | Flushing bypass with isolation valves, PICV with integrated dial, flow measuring device, strainer, drain and pressure test points. |
Material (all components) | Bypass H-body, tailpiece, Fig. 1934 PICV, Fig. 1000 FMD, D299P Strainer drain, J44 nipple, drain tee, DN20 to DN25 adapter: DZR brass BS EN 12165 (CW602N), P84 test points: Brass. Guidance for specification option: Two tailpieces, J44 nipples, drain tees and DN20 to DN25 adapters. |
Optional accessories | Not required. On-Off actuator. Modulating actuator. Feedback actuator. Manufacturer guidanceAvailable separately to match specification. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Brass Guidance for specification option: Body assembly. |
Manufacturing plant location | |
Recyclability | Recycle locally |
Expected Life | 20 year |
