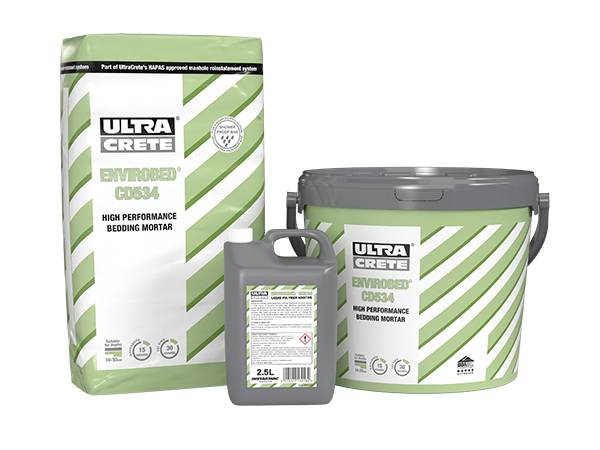

Envirobed® CD534 High Performance Bedding Mortar

Verified by manufacturer 6 months ago

Instarmac Group plc Third party certifications:
  • Carbon Footprint Standard

    Carbon Footprint Standard

    Certificate type

High performance bedding mortar.

Jump to:
+44 (0)1827 254400 Website

Application

Suitable for the bedding of ductile ironwork.

Description

An environmentally friendly alternative to resin-based materials, the product is specifically formulated for the bedding of ductile ironwork conforming to the Highways Agency Design Manual for Roads and Bridges: Mortars for Bedding Ironwork.


Features and benefits:

  • HAPAS approved since 2005.
  • Conforms to CD534 (formerly HA104/09).
  • Can be used in the wet.
  • BT Approved.

General information

Color

Grey

Red

Finish

Cement

Material

Cement

Polymer

Glass

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_31_53_61 Paving laying course mortarsPrimary

CAWS

P30/40 Granular material

P30/305 Proprietary access and inspection chambers

P30/301 Access covers, manhole tops and frames

Specification data - Paving laying course mortars

Delivery condition

Bagged.

Moisture content

Moist mix.

CompressiveStrength

53 N/mm².

Guidance for specification option:

At 3 hours.

TensileStrength

6.10 N/mm².

Guidance for specification option:

At 3 hours.

Workability

15 minutes.

Setting time

30 minutes.

Density

2298 kg/m³.

Coverage

1 x 400 x 400 mm standard ironwork cover and frame at 20 mm depth.

Guidance for specification option:

Dependent on bed depth, brickwork and substrate

Shelf life

8 months.

Guidance for specification option:

The use of this product after the end of the declared storage period may increase the risk of an allergic reaction. High temperatures

and high humidity will lead to a reduced shelf life

Materials

Cement.

Polymer graded aggregates.

Recycled glass.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Cement

Polymer

Glass

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18.88 kg CO₂ eq/unit

Self declared

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

10 %

Guidance for specification option:

Minimum; consult manufacturer for details.

Third party certifications

Carbon Footprint Standard

Carbon Footprint Standard

Envirobed Flowable Product Carbon Footprint Certificate

Literature

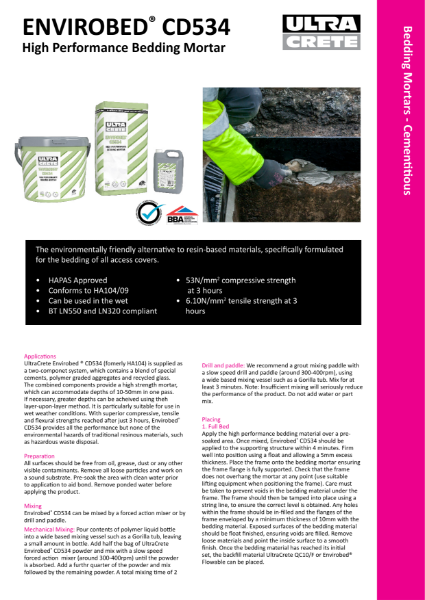

EnviroBed Technical Datasheet

EnviroBed Technical Datasheet
