Eco-bed: Environmentally Friendly Bedding Mortar For Paving Installation
Verified by manufacturer 7 days ago
Environmentally friendly bedding mortar for paving installation.
Application

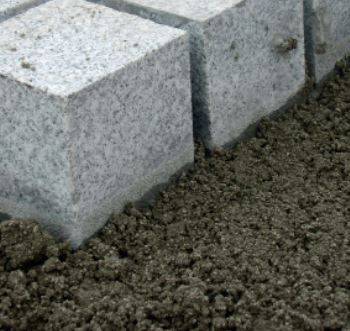

- The product provides a perfect bound base for natural stone paving and cobbles, concrete paving, flags, block paving and 20mm Porcelain tiles, which, once laid with UltraScape eco-bed are able to accept foot traffic after just 12 hours and vehicular traffic after 24 hours.
- The material is also not subject to environmental erosion, which can lead to increased point loads on slabs and consequent breakage.
Description

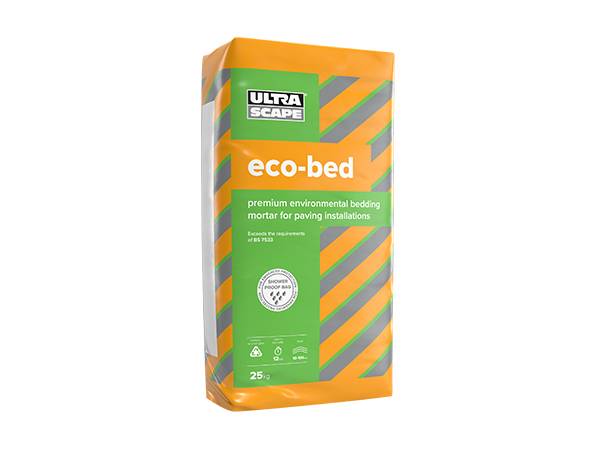

UltraScape eco-bed is formulated from selected cements and graded fillers. The pre-blended fine bedding concrete is supplied in 25 kg bags or alternatively, for those large projects, in 30 tonne bulk silos. The product can be laid from 10–100 mm in one pass with greater depths achievable using successive layers. The material mixes easily on-site with the addition of water and provides a compressive strength of 45 N/mm² after 28 days complying fully with BS 7533. This material should not be used in temperatures below 5°C.
Features and benefits:
- Can be laid from 10—100mm in one pass.
- Shrinkage compensated.
- BS 7533 compliant.
- Small contractor friendly units.
- Pre-blended - just add water.
- Open to pedestrian traffic in 12 hours.
- Open to vehicular traffic in 24 hours.
- Long-term durability.
General information
Color | Grey |
Finish | Cement |
Material | Cement Guidance for specification option: UltraScape eco-bed is formulated from selected cements and graded fillers. |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q25/31 Concrete flag paving systems Q24/113 Conventional concrete block paving overlay Q24/130 Natural stone sett paving Q24/110 Conventional concrete block paving Q24/120 Conventional clay paver paving Q25/125 Concrete flag paving overlay system Q25/120 Concrete flag paving system Q25/375 Sand/ fine aggregate for site-mixed mortar Q25/425 Fine aggregate for jointing concrete sett paving Q25/390 Sand/ fine aggregate for unbound laying course and jointing of concrete flag paving Q25/435 Primer for underside of flags and slabs Q24/115 Permeable concrete block paving – total infiltration Q24/126 Permeable clay paver paving – partial infiltration Q24/128 Permeable clay paver paving – no infiltration Q24/124 Permeable clay paver paving – total infiltration Q24/117 Permeable concrete block paving – partial infiltration Q24/119 Permeable concrete block paving – no infiltration Q24/15 Conventional clay paver paving Q24/10 Conventional concrete block paving Q25/420 Sand/ fine aggregate for laying course of concrete sett paving |
Specification data - Paving laying course mortars
Standard | In accordance with BS 7533. |
Delivery condition | Bagged.Guidance for specification option: 25 kg bag. Silo.Guidance for specification option: 30 tonne bulk silo. |
Moisture content | Moist mix. |
Coverage | 1 m² at 13.36 mm. Guidance for specification option: One 25 kg bag. |
Density | 2088 kg/m³. |
Yield - Mortar | 13.36 L. Guidance for specification option: Approximately per 25 kg bag. |
Compressive strength – 1 day | 20 N/mm². |
Compressive strength – 7 days | 36 N/mm². |
Compressive strength – 28 days | 45 N/mm². |
Flexural strength | 6.5–7.5 N/mm². Guidance for specification option: 7—28 days. |
Modules of elasticity | < 21 500 N/mm². Guidance for specification option: 28 days. |
Adhesion | 1.25 N/mm². Guidance for specification option: Without primer - 28 days. 1 day - 0.72 N/mm². 7 days - 0.96 N/mm². 2.18 N/mm². Guidance for specification option: With primer - 28 days. 1 day - 1.73N/mm². 7 days - 2.02N/mm ². |
Workability | 50 minutes at 20°C. |
Shrinkage | 0.09%. Guidance for specification option: At 28 days. 1 day - 0.01%. 7 days - 0.04%. |
Colour: | Grey. Guidance for specification option: As with all raw materials, colour variation may occur. Please note that this does not affect the consistency or characteristics of the enclosed product. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cement Guidance for specification option: UltraScape eco-bed is formulated from selected cements and graded fillers. |
