Ensuite Package 1 – High Risk (Excluding Shower)
Description

Dart Valley Systems’ high security safe-ensuite products have been designed and tested to be vandal proof and avoid ligature points wherever possible. The sanitaryware has been tested at HMP test centre at Lindholme. Protection against those intent on self-harm cannot be guaranteed, but the designs and precautions taken are to a very high standard, reducing the risks.

Features:

  • Designed to avoid ligature points.
  • Products designed to be vandal proof.
  • Reduces the possibility of patients obtaining dangerous material, for self harm or to harm others.
  • Water is thermostatically controlled.
  • Facilities to ‘lock-out’ water operations.
  • Easy to use.
  • Aesthetically attractive.

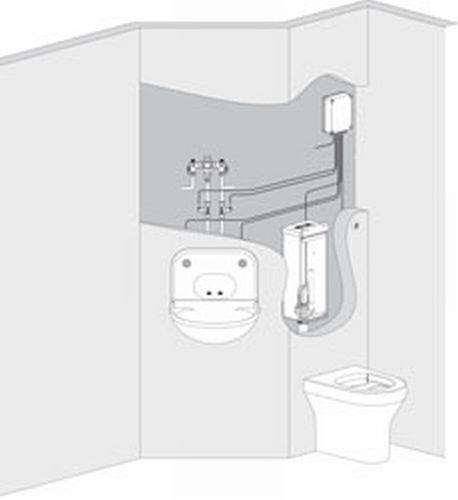

Components:

  • 1 no. washroom control system.
  • 1 no. TMV3 thermostatic mixing valve.
  • 2 no. solenoid valves.
  • 1 no. high security backplate.
  • 1 no. high security basin.
  • 1 no. WC anti-vandal wave-on sensor.
  • 1 no. WC flushvalve.
  • 1 no. concealed cistern kit.
  • 1 no. high security WC pan.

General information

Features

Designed to avoid ligature points

Products designed to be vandal proof

Reduces the possibility of patients obtaining dangerous material, for self harm or to harm others

Water is thermostatically controlled

Facilities to ‘lock-out’ water operations

Show more

Uniclass 2015

Pr_40_20_93_86 WC and washbasin combined unitsPrimary

CAWS

N13/392 Combined WC and washbasin units

Specification data - WC and washbasin combined units

Product Reference

Ensuite Package 1 – High Risk (Excluding Shower)

Accessories

None

AC02-056

Sensor thread extension for 100 mm wall thickness (for WC sensor).

AC02-057

Sensor thread extension for 150 mm wall thickness (for WC sensor).

AC02-058

Sensor thread extension for 250 mm wall thickness (for WC sensor).

AC04-016

Key switch for re-setting lock-outs (for Washroom Control System).

VR01-004

Extended high security backplate with moulded shelf (not including sensors).

VR01-006

Basin/ backplate fixing kit for 100 mm wall thickness.

VR01-007

Basin/ backplate fixing kit for 150 mm wall thickness.

VR01-008

Basin/ backplate fixing kit for 250 mm wall thickness.

VR01-011

Disabled high security WC pan (60 mm higher).

VR01-012

Disabled WC pan white enamelled steel spacer box.

VR01-013

High security WC pan side in-fill - left side.

VR01-014

High security WC pan side in-fill - right side.

VR01-025

High security mirror with white moulded frame.
