Verified by manufacturer 5 months ago
TLA110 Grade
KIWA BDA
Certificate type
Product combines EPS beads coated in an innovative additive with cement to create a pourable insulation that offers a non-combustible alternative for use in floor and roof construction.
Suitable for domestic, commercial and industrial projects, energystore TLA® can be used as a direct replacement for insulation boards with
no changes to membranes. Poured insulation leaves
a continuous thermal layer with no gaps or breaks.
energystore TLA® combines EPS beads coated in an innovative additive with cement to create a pourable insulation. Manufactured in accordance with BS EN 13163, BS EN 16025-1 and BS EN 16809-1.
Combining excellent thermal performance, enhanced compressive strength and an A2 fire rating for an exclusive insulation alternative.

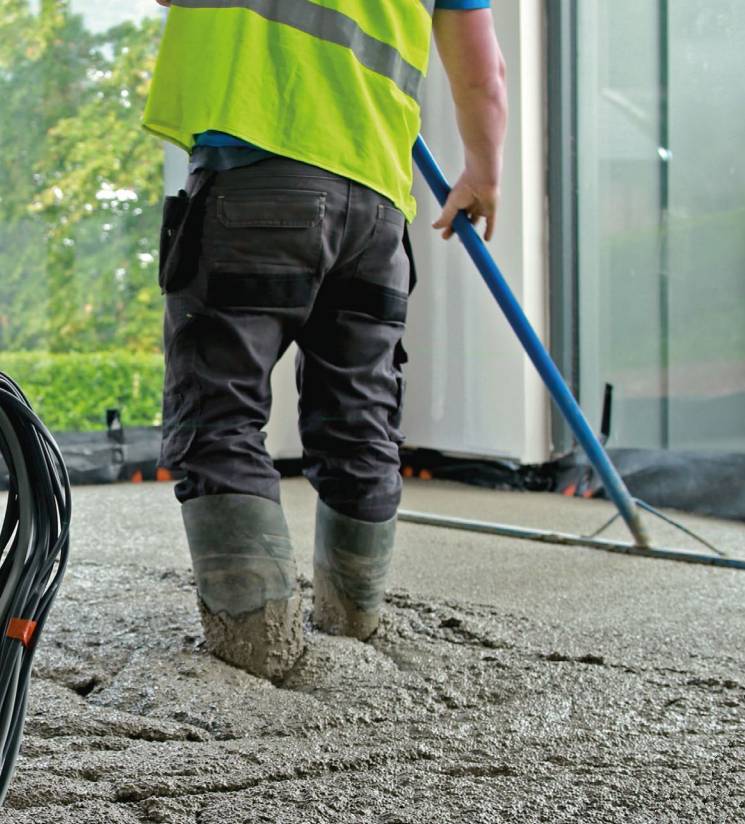

The free-flowing and self-levelling properties result in faster and more efficient installation. U-values vary depending on grade and thickness, consult literature for details.
Features and benefits:
Color | Grey |
Finish | Cement Guidance for specification option: Coated. Manufacturer guidanceGraphite Coated Cementitious Product |
Material | Cement Graphite Guidance for specification option: Coating Water-based Liquid Polystyrene |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: On request. |
Uniclass | |
CAWS | E20/380 Void formers E60/330 Expanded polystyrene void formers |
Standard | To BS EN 13501-1, BS EN 13163, BS EN13165, BS EN 16025-1, BS EN 16809-1. |
Third-party certification | KIWA Certificate BAF-18-042-S-A-UK / BRE GreenGuide A+ rating / LABC warranty / NHBC Approval / BM TRADA system certification. |
Fire performance | A2-s1, d0 to BS EN 13501-1. Non combustible.Guidance for specification option: Non-combustible. |
Compressive strength (minimum) at 10% compression | 200 kPa. |
Thermal conductivity (maximum) | 0.043 W/m·K.Manufacturer guidanceFor project specific U-values or related details consult manufacturer. |
Water vapour permeability | 5—20 μ. |
Thickness | Manufacturer guidanceInsert requirments. |
Cement | Dosage: 110 kg/m³, minimum grade Portland 32.5 Cem I or Cem II. |
Dry density | 130 kg/m³ (approximately). |
Purpose | Suitable for ground floor insulation replacement. Guidance for specification option: Manufacturer's recommended application. |
Beads | Bonded with cement. Guidance for specification option: Cementitious binder. |
Shrinkage | <0.5%. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cement Graphite Guidance for specification option: Coating Water-based Liquid Polystyrene |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.15 kg CO₂ eq/kg Self declared |
Expected Life | Lifetime |
