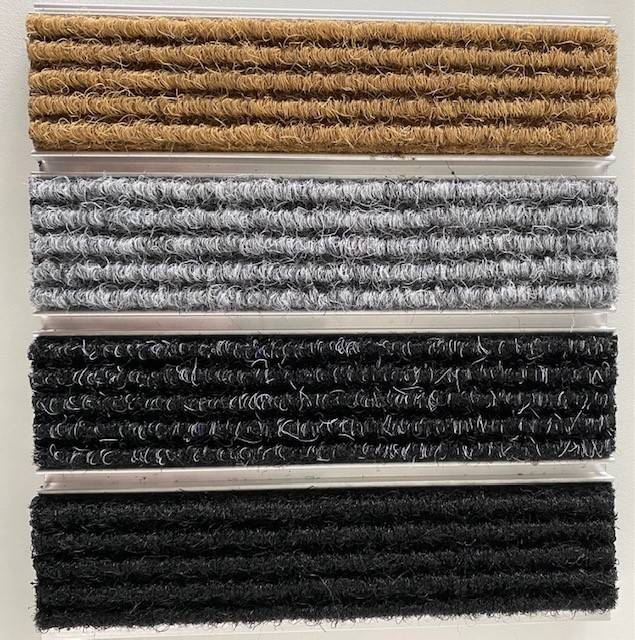

EMS Debris Channel - DC022 - Aluminium Grid Entrance Matting System

Verified by manufacturer 2 months ago

Entrance Matting Systems Ltd

Aluminium grid entrance matting system with brush polypropylene ribbed infills.

Jump to:
BOS
+44 (0)1205 761757 Website

Application

  • Suitable for internal and external use.
  • Widely used in the education sector and in public sector buildings, libraries and retail outlets.

Description

DC022 is a versatile infill which has a wide rib creating a defined contrast in its texture. It is widely used in the education sector as it is highly durable yet proves easy to maintain.


Features and benefits:

  • Brush polypropylene ribbed infills.
  • Unrivalled scraping action and high absorbency levels.
  • Easily cut on site – solid grid system, no wires.
  • Manufactured with vegan materials.
  • Recessed or surface mounted.
  • Innovative debris channels – collects dirt in channels and easy to remove.
  • Closed and open entrance matting systems.
  • Recessed or surface mounted with ramped edge frames.
  • Extra heavy duty.
  • Infill available in four colours to suit any application.
  • 100% recycled aluminium grid system.
  • GreenSpec accreditation.

General information

Color

Finish

Anodized

Material

Aluminium

Polypropylene

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

12 mm

17 mm

Warranty description

15 year

Uniclass

Pr_35_57_11_26 Entrance matsPrimary

CAWS

N10/300 Entrance matting

Specification data - Entrance mats

Description

Aluminium grid entrance matting system with brush polypropylene ribbed infills.

Manufacturer

Entrance Matting Systems Ltd.

Arrangement

Inset internal.

Guidance for specification option:

Recessed in matwell.

Loose lay internal.

Guidance for specification option:

Surface-laid with ramped edge frames.

Dimensions

Bespoke.

Guidance for specification option:

Insert requirements.

  • EMS panels are manufactured specifically to customer requirements.
  • Panel lengths are available up to 4600 mm left to right without a join.
  • Aluminium grid system and framework to suit (up to 2500 mm in gunmetal grey).

Material

Polypropylene.

Guidance for specification option:

  • Infill: brush polypropylene ribbed infills.
  • Extrusion composition: recycled aluminium.

Pattern

Ribbed.

Colour

Anthracite.

Black.

Grey.

Tan.

Integral accessories

Debris channel.

Grid

Aluminium, open construction.

Aluminium, closed construction.

Aluminium profile finish

Anodized, black.

Anodized, light gold.

Anodized, medium gold.

Anodized, dark gold.

Anodized, gun metal grey.

Show more

Total height

12 mm.

Guidance for specification option:

Low profile.

17 mm.

Guidance for specification option:

Standard profile.

Fire resistance

EN 95/28 (ECE 118).

Colour fastness

Colour fastness to light: to DIN EN ISO 105 B02, Grade 6.
Colour fastness to water: to DIN EN ISO 105 E01, Grade 5.

Colour fast - rubbing

To DIN EN ISO 105 X12, Grade 4.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Polypropylene

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Guidance for specification option:

Aluminium is a minimum of 95% recycled, closed construction format.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

EMS Debris Channel - DC022
