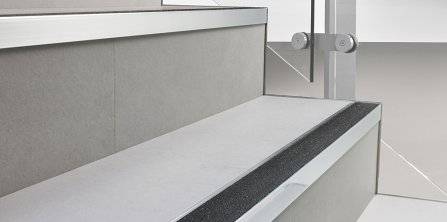

Elite Aluminium Stair Edging
Aluminium stair edgings with concealed fixings, for interior use.
An extensive range of attractive and hardwearing stair edgings comprising aluminium channels with slip-resistant inserts.
The Gradus Elite stair edging allows the aluminium channel to be fixed to the step first, with the insert fitted once the channel has been secured. This offers a concealed fixing and eliminates the need for screw head plugs.
To be used in conjunction with all types of floor coverings, and are suitable for all commercial applications.
Stair Edging - Gradus XT Aluminium range:
The Gradus XT Aluminium range features an extended insert design that provides maximum safety underfoot and a unique insert locking mechanism for improved performance, reducing the risk of slips, trips and falls on stairs. See manufacturer’s literature to find out about the XT Aluminium profiles.
Material | Aluminium channel with PVC inserts |
Uniclass 2015 | |
CAWS | L30/10 Wood stairs L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims |
Product Reference | Elite Aluminium Stair Edging |
Channel | - |
Profile | EAR1140Square, ramp back, 60 mm tread, 35 mm riser, single channel. EAR3150Kinked face, ramp back, 77 mm tread, 35 mm riser, single channel. ELA5240Kinked face, 4 mm gauge, 97 mm tread, 35 mm riser, double channel - recommended trim TA5C, TA5 or TA42. ELA7240Kinked face, 3 mm gauge, 101 mm tread, 58 mm riser, double channel. ELA1140Square, 4 mm gauge, 50 mm tread, 35 mm riser, single channel - recommended trim TA5C, TA5 or TA42. ELA115550Square, 4 mm gauge, 60 mm tread, 55 mm riser, single channel - recommended trim TA5C, TA5 or TA42. ELA1240Square, 4 mm gauge, 96 mm tread, 35 mm riser, double channel - recommended trim TA5C, TA5 or TA42. ELA5140Rake back, 4 mm gauge, 50 mm tread, 35 mm riser, single channel - recommended trim TA5C, TA5 or TA42. ELA515550Rake back, 4 mm gauge, 60 mm tread, 55 mm riser, single channel. ELA5240Kinked face, 4 mm gauge, 97 mm tread, 35 mm riser, double channel - recommended trim TA5C, TA5 or TA42. ELA3140Kinked face, 4 mm gauge, 53 mm tread, 35 mm riser, single channel. ELA3240Kinked face, 4 mm gauge, 53 mm tread, 35 mm riser, single channel. ELA8150Bullnose, 4 mm gauge, 55 mm tread, 40 mm riser, single channel. ELA11750Square, 6 mm gauge, 64 mm tread, 40 mm riser, single channel - recommended trim TA42. ELA12740Square, 6 mm gauge, 96 mm tread, 35 mm riser, double channel - recommended trim TA42. ELA51750Rake back, 6 mm gauge, 64 mm tread, 40 mm riser, single channel - recommended trim TA42. ELA91150Square, 7 mm gauge, 69 mm tread, 40 mm riser, single channel - recommended trim TA42. ELA93150Kinked face, 7 mm gauge, 72 mm tread, 42 mm riser, single channel. |
Insert | - |
Type | ELINS4040 mm, for profiles with reference number ending in '40'. ELINS5050 mm, for profiles with reference number ending in '50'. |
Colour | BurgundyLRV: 5.70. ButtercupLRV: 55.54. CanvasLRV: 53.27. ClayLRV: 47.97. CloudLRV: 28.57. CoffeeLRV: 6.05. DuckeggLRV: 47.72. EvergreenLRV: 6.69. GlacierLRV: 42.09. InkLRV: 4.96. JadeLRV: 53.98. JetLRV: 4.56. LeadLRV: 12.77. LinenLRV: 38.59. MidnightLRV: 6.56. OceanLRV: 8.00. PhotoluminescentLRV: 57.59. PoppyLRV: 10.39. SkyLRV: 52.63. SnowdriftLRV: 83.77. SteelLRV: 26.99. |
Side trim | Not applicableFor bullnose and kinked edging. Not requiredTA5Not available with ELA11750, ELA12740, ELA51750 or ELA91150. TA5CNot available with ELA11750, ELA12740, ELA51750 or ELA91150. TA42 |
Fixing | Gradus Grip (adhesive only)Mechanical (screw) and adhesive fix |
Standard product features | Material: Aluminium channel with PVC inserts. |
Product Options | Insert: - Type: The Elite inserts are sold separately from the profiles, however they will need to be ordered a long side the channel. ELINS40 - 40 mm wide and ELINS50 - 50 mm wide, the number on the end of each profile indicates which insert will need to be specified. Fixing:
|
