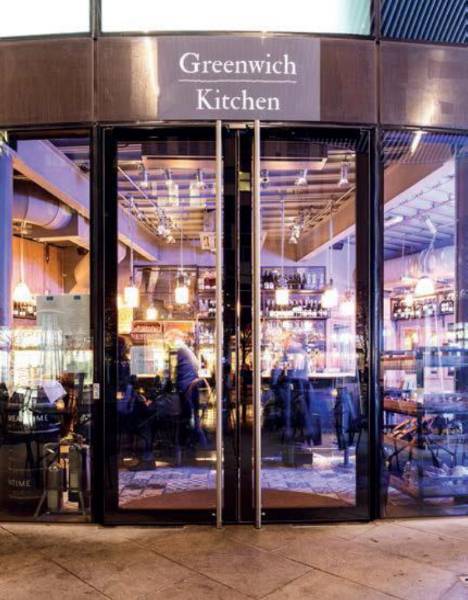

Eliminate Swing Doors

Application

Automatic/ manual swing door with exceptional transparency, suitable for large and complex entrances.

Description

Automatic swing door available in multiple dimensions and designs, allowing design flexibility.


Features and benefits:

  • Available with single, double or multiple doors, in straight or curved configurations.
  • Complies with 'Access to and use of buildings: Approved Document M'.
  • Motors for automatically opening door leaves weighing up to 3000 kg are available.
  • Includes underfloor drive unit(s).
  • Door leaves available in a range of glazing options.
  • Designed, manufactured and installed to EN 16005.
  • Made-to-measure in accordance with height and width specifications.
  • Can be combined with other Bauporte doors within a facade.

General information

Color

Clear

Finish

Frame only.

Stainless steel

Standard.

Other

Special finishes on request, consult manufacturer for options.

Material

Glass

Stainless steel

Concealed frame.

Shape

Rectangle

Size

Doors are made-to-measure in accordance with height and width specifications.

WarrantyDescription

Two year

Lifetime

With service contract; consult manufacturer for further information.

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary
Ss_25_30_20_32 Frameless glass door systems

CAWS

L20/480 Doorsets

L20/55 Doorsets

L20/460 Frameless glass doors

Specification data - Doorset systems Enhanced data

Doorset

-

Type

Doors constructed from a range of glass types, with a concealed stainless steel frame.

See Door configuration for further options.

Composite doorsets, single door.

Composite doorsets, double doors.

Composite doorsets, multiple doors.

Insert requirements.

Glazing

Clear.

12 mm clear safety glass.

Low iron.

Consult manufacturer for details.

Coloured.

Consult manufacturer for details.

Fritted.

Consult manufacturer for details.

Special request.

On request; consult manufacturer for options and insert requirements.

Side panels

Required (to match).

Not required.

Hardware

Full height horizontal handles.

Standard.

Other.

As required. Consult manufacturer for options and insert requirements.

Breakout facility

Not available.

Finish

Door frame finish.

Stainless steel.

Standard.

Special finish.

On request; consult manufacturer for options and insert requirements.

Height

Insert requirements: 1930–6000 mm., available in 1 mm increments.

For doors >6000 mm high, consult manufacturer.

ClearWidth

Insert requirements, 1000 mm+, available in 1 mm increments (per door leaf).

To comply with Access to and use of buildings: Approved Document M.

Door configuration

Straight.

Weight

Manufacturer's standard.

Door weight not to exceed 3000 kg. Consult manufacturer for details based on size and glazing type specified.

Door locking

Manual.

Automatic.

230 V a.c./ 50 Hz power supply required.

Safety

Designed, manufactured and installed to EN 16005.

Drive unit

Underfloor only.

Literature

Bauporte Eliminate Swing Doors

Bauporte Eliminate Swing Doors

Case studies

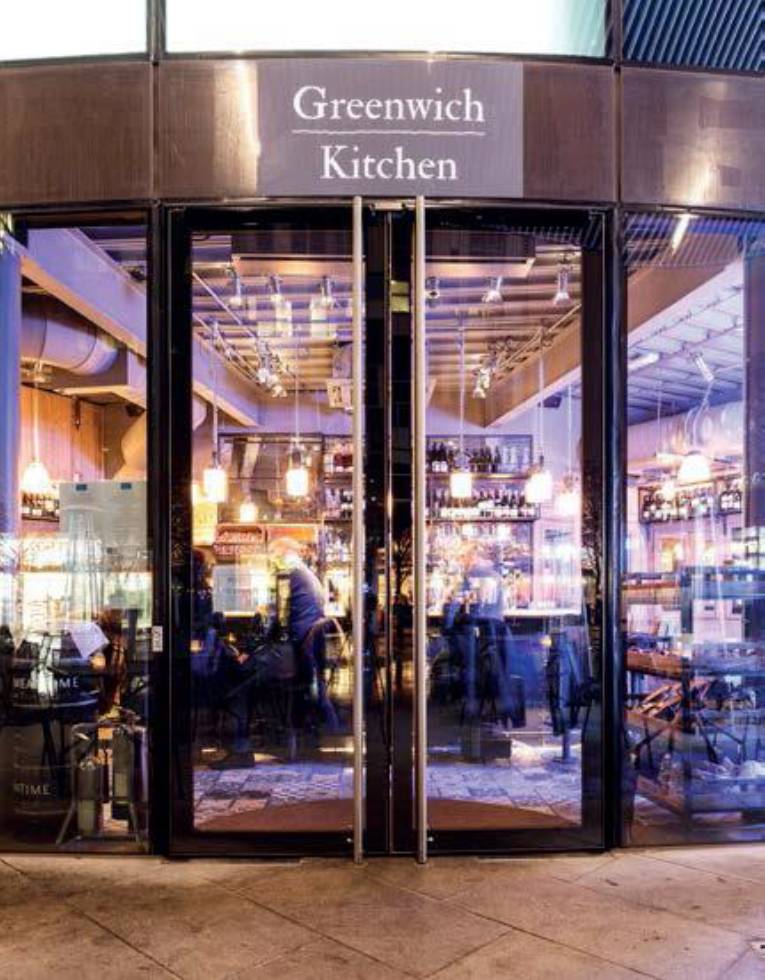

Full Vision Curved Sliding Door, Elegance Sliding Door & Eliminate Swing Doors-                                                                                      Greenwich Marketing Hub

Full Vision Curved Sliding Door, Elegance Sliding Door & Eliminate Swing Doors- Greenwich Marketing Hub
