Elements Seat And Bench - Goalpost
Verified by manufacturer 4 months ago
ELE SP GF3
ELE SP GF3
Seating range based around a series of interchangeable components.
Application
Suitable for all outdoor seating applications.
Description
The Elements® range is based around a series of interchangeable components, or 'elements', that offer the maximum choice of styles, sizes, materials and features.

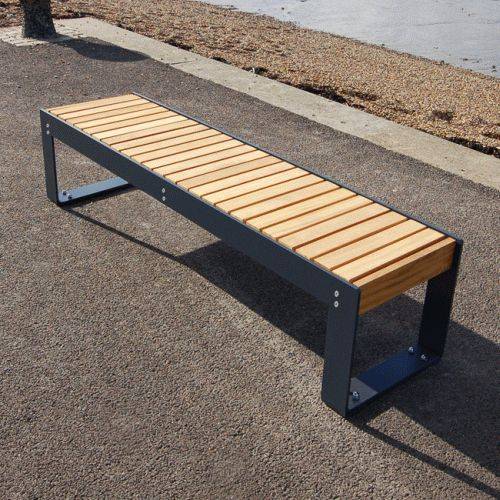

The goalpost frame is made of steel frame supports covering the legs and base of the seat like a goal post, to give a visually lighter appearance to this steel and timber bench or seat.
Features and benefits:
- Offers the opportunity to introduce colours, with coating of the steelwork
- XL version available with extended platform depth
General information
Color | Brown Grey Other Guidance for specification option: Polyester powder coated to any RAL colour. |
Finish | Satin Powder-coated Smooth Guidance for specification option: Planed iroko hardwood timber finish. |
Material | Timber Stainless steel Steel |
Shape | Rectangle |
Length | 1880 mm 2480 mm 2045 mm 2645 mm |
Width | 480 mm |
Height | 450 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/220 Benches Q50/225 Seats Q50/30 Street furniture |
Product range |
Specification data - Street and site benches
Length | 1.8 m. |
Base | Bolt-down. |
Material | Standard: Steel fascia and chassis, Iroko timber platform. |
Finish as delivered | Standard: Chassis triple processed, RAL, Timber platform smooth planed. |
Colours | RAL.Guidance for specification option: Polyester powder coated to any RAL colour. |
Accessories | Not required.Anti-skate devices.Tablet surfaces.Guidance for specification option: 290 mm wide. |
Frame | Stainless steel, grade 1.4301 (304), satin polished. Steel, polyester powder coated finish, RAL. Guidance for specification option: Finished to any RAL colour; insert requirements. Triple processed to a standard RAL colour. |
Fascia | Iroko timber, smooth planed finish. Stainless steel, grade 1.4301 (304), satin polished. Steel, polyester powder coated finish, RAL. Guidance for specification option: Finished to any RAL colour; insert requirements. Triple processed to a standard RAL colour. |
Material | Iroko timber. Manufacturer guidancePlatform. |
Layout | Manufacturer guidancePlatform is available in various sizes and orientations; insert requirements. |
Backrest | Not required. Required. |
Armrests | Not required. Steel. Steel with iroko timber top. |
Width | 480 mm. |
Height: | 450 mm. |
Form | Three person bench. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom Guidance for specification option: Britain. |
