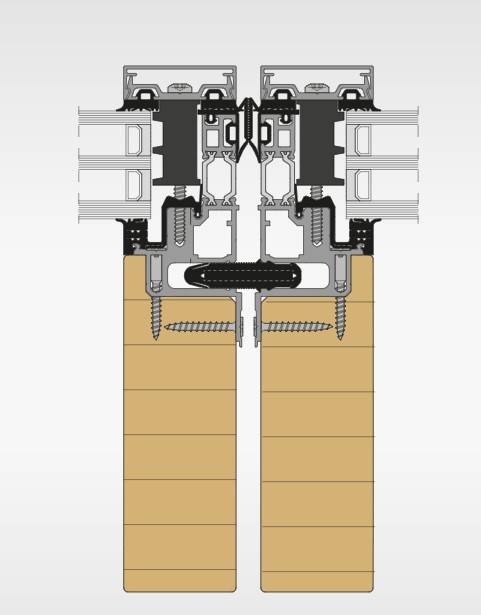

ELEMENT+ H-I Timber Unitised System - Curtain Wall

Verified by manufacturer 3 months ago

RAICO

Timber unitized curtain walling system.

Jump to:
Request BIM
+44 1329 848 175 Website

Application

Facade applications. Very high degree of prefabrication - ideally suited for large projects.

Description

Environmentally friendly solid timber unitized curtain walling system based on the RAICO THERM+ H-I facade system. Due to the very high level of prefabrication, large projects and time-critical construction sites can be assembled efficiently and just in time.

ELEMENT+ H-I also meets strict urban planning requirements regarding ecology and energy efficiency.

Available in a range of system types.

Features and benefits:

  • Suitable for large projects due to very high level of prefabrication.
  • Optimized for just-in-time assembly.
  • Based on the proven RAICO THERM+ H-I facade system.
  • Sight-line width frame: 50 mm.
  • Possible glazing thickness: 40–64 mm.
  • Aluminium savings compared to commercially available aluminium element facade: approximately 60%.
  • Can withstand up to 600 kg glass weight (and up to 1000 kg element weight).
  • Integrated drainage at the continuous gasket in three levels.
  • System uses isothermal lines to avoid the formation of condensate and control surface temperature.
  • A range of profiles, angles and connections are available dependent on project requirements.
  • Extensive system accessories.

General information

Color

Other

Finish

Other

Material

Timber

Guidance for specification option:

Glue-laminated timber (glulam).

Glass

Aluminium

Shape

Other

Length

Bespoke

Width

50 mm

Height

Bespoke

Uniclass

Ss_25_10_20_90 Unitized curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

SKU Code

H-I

Specification data - Unitized curtain walling systems

Classification data

System performance

To BS EN 13830.

Framing

-

Framing members

Timber curtain wall frame sections.

Guidance for specification option:

Timber profiles from 150–200 mm.

Fasteners

Manufacturer's standard.

Cladding units

-

Glass units

-

Manufacturer guidance

Glass units to be provided dependent on 'System type' chosen.

Infill thickness: 40–64 mm. Consult manufacturer and insert requirements.

Panels and facings

-

Material

Manufacturer's standard.

Thermal insulation

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Fasteners

TC timber connector - SOLO.

Guidance for specification option:

  • Tensioned with nail screws.
  • Safe and tested dispersal of glass weights.
  • Inserted invisibly between mullion and transom.
  • Tested according to ETA-13/0765.
  • Safe dispersal of the glass loads and resulting torsion forces via the timber structure.
  • Seven installation depths for transom depths from 60 to 300 mm.
  • Installation in a few simple steps and minimum processing.
  • Integrated longitudinal stop and transom contact pressure over the entire depth for a perfect T-connection.

TC timber connector - KOMBI.

Guidance for specification option:

  • Tensioned with nail screws through the transom base profile.
  • Safe and tested dispersal of glass weights.
  • Inserted invisibly between mullion and transom.
  • Tested according to ETA-13/0765.
  • Safe dispersal of the glass loads and resulting torsion forces via the timber structure.
  • Seven installation depths for transom depths from 60 to 300 mm.
  • Installation in a few simple steps and minimum processing.
  • Integrated longitudinal stop and transom contact pressure over the entire depth for a perfect T-connection.

Manufacturer guidance

Connectors to be specified based on required glass loads - consult manufacturer for details.

Perimeter seals

Exterior gasket.

Guidance for specification option:

  • Various exterior gaskets and insulating block options available.
  • Gradual adaptation of the insulation value.
  • Maximum thermal insulation up to Uf = 0.80 W/(m²K) including screw influence.
  • Certified passive house curtain wall.
  • Economic solution.

Transom and mullion gaskets.

Guidance for specification option:

  • Optimized shape for maximum thermal insulation and efficient fabrication.
  • Complete covering and sealing of the base profile.
  • Perfect and easy fitting on the structural profile (without silicone).
  • Two options of gaskets with flaps for transom and base drainage as well as draining within the continuous gasket at the structural connections.
  • Reliable drainage in two or three levels by simply notching.
  • Special accessories for all applications, e. g. transom and mullion sealing elements.

System accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Design

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Use this field to specify overall size/ design.

Width

50 mm.

System types

Manufacturer's standard.
Passive House.

Guidance for specification option:

The standard THERM+ system can easily be upgraded to passive house certified standard with minimal additional components. Passive house projects can therefore be fitted with energy saving glazing in a generous, cost effective way, independent of their supporting projects.

Ventilation

Pressure compensation via mullion – connection below/ on top.
Pressure compensation via mullion and synthetic sealing piece.
Pressure compensation of extra large transoms via pressure and cover profiles.

Thermal transmittance (U-Value)

0.79–0.882 W/(m²·K).

Wind resistance

2.5 kN/m².

Impact resistance

Interior I5, Exterior E5.

Air permeability

AE (1800).

Watertightness

RE 1800.

Sustainability data

Country of material origin

Europe

Country of product manufacture

Germany

Material

Timber

Guidance for specification option:

Glue-laminated timber (glulam).

Glass
Aluminium

Expected Life

50 year

Literature

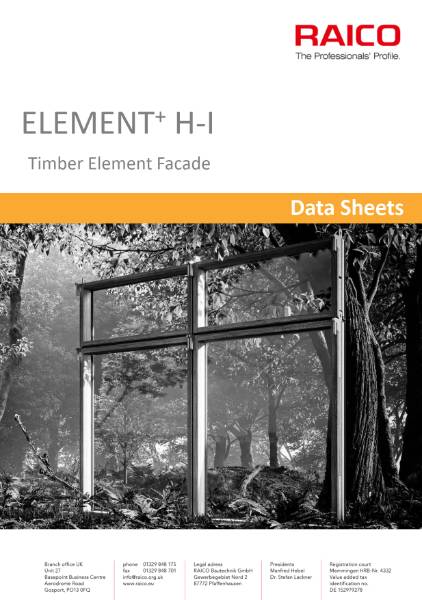

ELEMENT+ H-I Timber Unitised System
