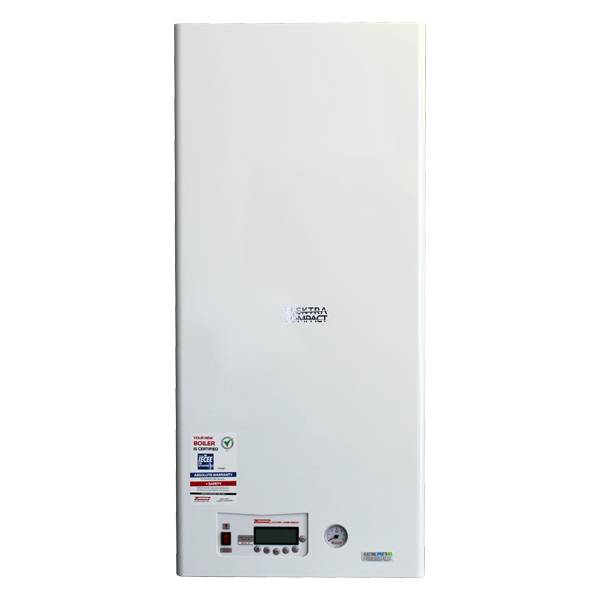

Elektra Electric Combi Boiler Wall hung EK.C

Using an electric combi boiler allows the end user to run the heating & hot water more safely and efficiently whilst being economical.

All three boilers can heat up a small flat to a big house. In case of a big house i.e. with large number of radiators, the only difference will be that the radiators will take slightly longer to heat up.

  • Clean and safe form of heating.
  • Instantaneous and continuous hot water.
  • 230/240 V single phase.
  • Uses 50 Amps.
  • Uses 10 mm cable.
  • Completely silent due to TRIAC based technology (D.E.S. system).
  • Can be used with radiators or under floor heating.
  • Modulates from 2kW - 12kW (Central heating).
  • Digitally displays temperatures.
  • Hot water limited to 60°C (EK.BPL, EK.BPC).
  • Central Heating limited to75°C.
  • Anti-Legionella function(EK.BPL, EK.BPC).
  • 37.5 lt glass lined, insulated cylinder with inspection flange,fitted with.
  • magnesium anode and mounted with an insulated boiler casing(EK.BPL,
  • EK.BPC only).
  • All boilers come with 2 years warranty.

General information




Digital temperature display, clean and safe form of heating, instantaneous hot water, no external hot water tank required, silent running, easy installation


300 x 875 x 400 mm


2 years

Uniclass 2015

Pr_60_60_08_27 Electric boilersPrimary
Digital objects
PlatformCompatibleVersionCertified to
- 2 2.1
- 2 2.1
