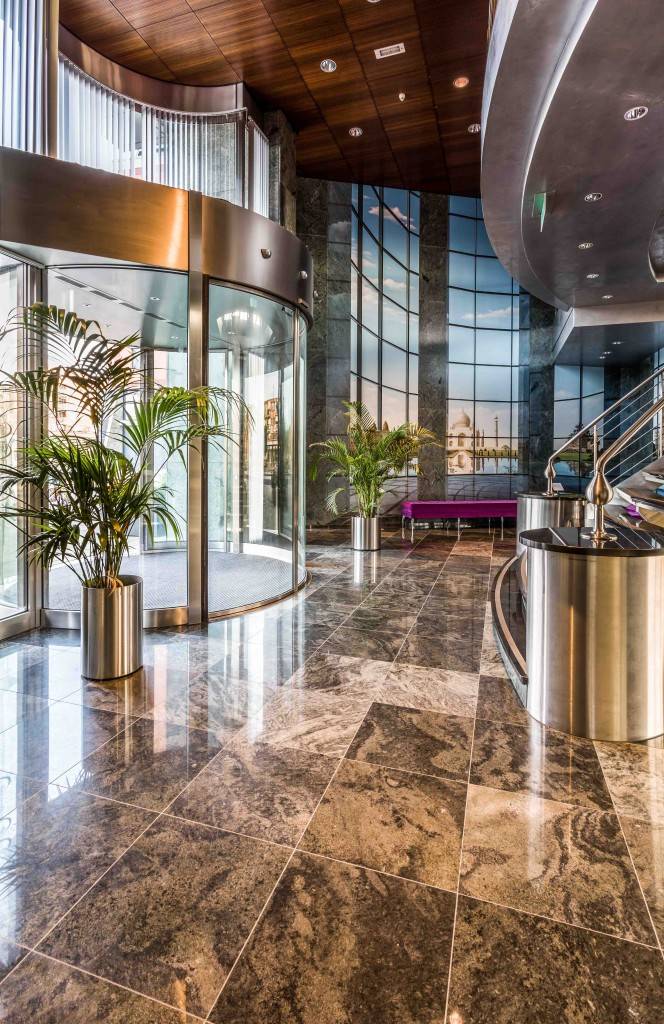

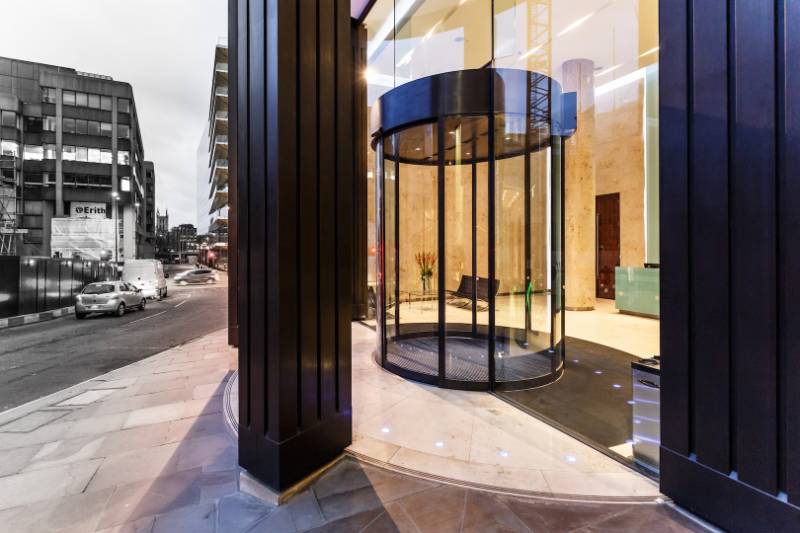

Elegance Security Circular Sliding Door

Application

Circular sliding door available for commercial building entrances.

Description

Circular sliding doors offering the benefits of conventional automatic doors, available in a variety of options. Automatic sliding doors are available with the drive mechanism mounted in the ceiling above the door or the floor beneath the door.


Features and benefits:

  • Automatic drive mechanism systems designed for door leaves with weights of up to 3000 kg.
  • The door leaves are designed in stainless steel and can have a range of finishes.
  • Tested to EN 1627-30 to the RC2 and RC3 security ratings.

General information

Finish

Special finishes on request, consult manufacturer for options.

Stainless steel

Polyester powder coated

Material

  • Fixed curved drum walls are constructed from welded through stainless steel profiles, which are covered with stainless steel sheets.
  • Glazed curved drum walls formed from clear curved P6B security glazing in one piece over the full height of the door and divided by the midstyle.
  • Bottom glazing profiles 120 mm.
  • Doors are constructed of a welded through stainless steel structure, which are covered with stainless steel sheets.
  • The profiles around each door panel are 27 mm high.

Glass

Steel

Shape

Circle

Size

Available in a range of bespoke sizes. Minimum diameter 2000 mm.

WarrantyDescription

Two year

Lifetime

With service contract. Please contact Bauporte for further information.

Uniclass

Ss_25_30_20_77 Sliding doorset systemsPrimary

CAWS

L20/60 Doors

L20/520 Sliding doors

Specification data - Sliding doorset systems Enhanced data

Doorset

-

Type

Circular sliding door.

Glazing

EN 356 P6B glazing to all exposed external glazed elements.

Thresholds

Not required.

Stainless steel thresholds.

Available if required.

Hardware

None.

Breakout facility

Not required.

System accessories

Matting.

Water drainage reservoir.

Security resistance options.

RC2 and RC3 options available - consult manufacturer for options.

Heaters.

Material

Door frame material.

Stainless steel.

Material

Door leaf material.

Stainless steel and attack resistant glazing to EN 356.

Finish

Door frame finish.

Stainless steel.

Polyester powder coated.

Special finishes on request.

Consult manufacturer for options.

Internal height

Insert requirement, available up to 6000 mm in 1 mm increments.

Clear opening

Clear opening is dependent on the door diameter.

Insert requirement, available up to 1000 mm in 1 mm increments. To comply with Access to and use of buildings: Approved Document M.

Door locking

Automatic.

Manual.

Operation

Fully automatic.

Canopy

Not required.

50 mm+.

Available in 1 mm increments. Please contact Bauporte for minimum heights if lighting or hot air units are required.

Safety

Designed, manufactured and installed to EN 16005.

Power supply

230 V/ 50 Hz.

Drive unit

Underfloor Drive Unit.

Full length of doorset.

Overhead Drive Unit.

Full length of doorset.
