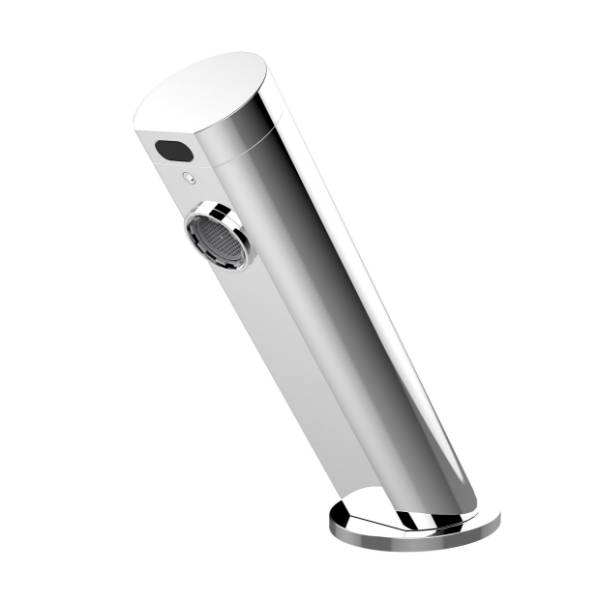

Electroflo® Avanti™ Tap

Verified by manufacturer 3 months ago

Chrome – 326400

Thomas Dudley Variant:

Automatic, washbasin tap.

Jump to:
+44 (0)121 557 5411 Website

Application

Suitable for use within commercial washrooms applications that have either vanity tops or wash basins.

Description

The Dudley Avanti™ Electroflo® Tap is a vanity top and basin mounted electronic tap. For use in most domestic and commercial applications. Angled in a way to ensure that hands can be easily placed in the waterflow while retaining the ability to be mounted in a reduced space area. Delivers as little as 1 litre of water per visit.


Features and benefits:

  • Supports BREEAM.
  • Sleek minimalist design.
  • Hygienic touch free operation.
  • Delivers cold or premixed water (thermostatic mixing valve required for premixed water).
  • Robust one piece brass body and vandal resistant design.
  • 15 mm push-fit connection.
  • Mains or battery powered options available.
  • Tap shuts off when hand is removed from sensor, water delivery rates can be adjusted.
  • Fail safe feature automatically closes the solenoid when power is cut or power is very low.
  • Available in polished chrome and stainless steel finishes.
  • Pre-fitted with 5 LPM flow regulator.
  • 50–300 mm sensor range.
  • Suitable for pressures of 0.5–8.0 bar with flow restrictor.

General information

Color

Silver

Finish

Chrome

Stainless steel

Material

Brass

Shape

Other

Length

135 mm

Height

147.5 mm

Warranty description

One year

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/341 Vanity tops with formed washbasins

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin taps

Form

Automatic-action cold tap.

Automatic-action mixer tap.

Guidance for specification option:

Thermostatic mixing valve required for premixed water.

Materials

-

Body

Brass.

Finish and colour

Chrome-plated.

Flow rate (maximum)

6 L/minute at 8 bar.

Guidance for specification option:

1.9–3.5 L/minute available, consult manufacturer. 0.5–8.0 bar of pressure when fitted with a flow restrictor.

Water supply temperature (maximum)

70°C.

Integral accessories

Occupancy detectors.

Spout projection

135 mm.

Spout height

98 mm.

Height

147.5 mm.

Sensor

Infra-red, 50–300 mm activation range.

Water pressure

0.5–8.0 bar.

Power supply

Mains, 230 V AC 50 Hz.

Battery, 9 V DC PP3.

Operating voltage

9 V, DC.

Connection

15 mm push-fit.

Sustainability data

Contains Red List materials

No

Country of material origin

Israel

Country of product manufacture

Israel

Material

Brass

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

Platform Compatible Version
Revit
-

1
