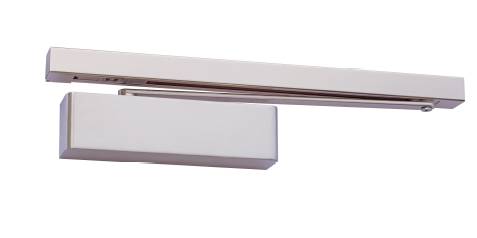

Electro-Magnetic Cam Action Slide Arm Door Closer EN2-5 Semi-Radius Cover SNP (HUKP-0104-03) - Electro-Magnetic Hold Open Device
Verified by manufacturer 6 months ago
Electro-magnetic cam action door closer with slide arm.
Application
Suitable for up to 2 hours on timber door sets.
Description
Electro-magnetic cam action door closer with slide arm.
Features and benefits:
- Door mount pull side with electro-magnetic hold open track.
- Adjustable hold open point from 80° to 140°.
- Adjustable closing power, speed and latch action.
- Adjustable backcheck and delayed action functions.
- Maximum door width 1250 mm (Minimum 860 mm at EN 3 to meet ADM).
General information
Color | Black Bronze Gold Silver White Manufacturer guidanceRAL colour available to special order. |
Finish | Polished Satin Matt |
Material | Stainless steel |
Shape | Rectangle |
Size | Guidance for specification option: Length x width. |
Length | 270 mm |
Width | 60 mm |
Height | 70 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154. |
Classification grades (minimum) | |
Category of use | 3. |
Durability | 8. |
Door closer power size | 5. |
Safety | 1. |
Form | Door mount pull side only. |
Closer functions | Back check and delayed closing. |
Materials and finishes | |
Bodies | Stainless steel.Polished.Satin.Matt. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Polished stainless steel.Satin stainless steel.Silver sprayed.Light bronze.Dark bronze.Hafele black.Matt black.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | Certifire approved CF 5312. |
Dimensions | 270 x 70 mm. Guidance for specification option: Length x width. |
Power | 24 V d. c. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
7. Project - Architectural Door Controls
